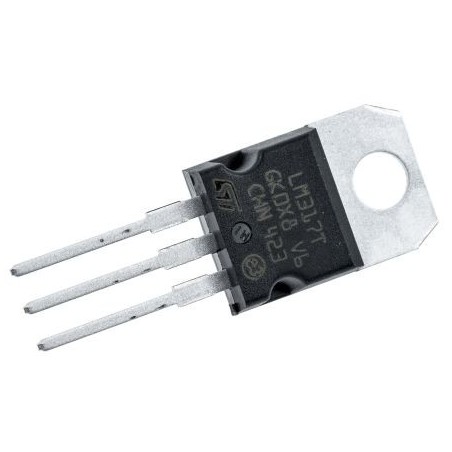

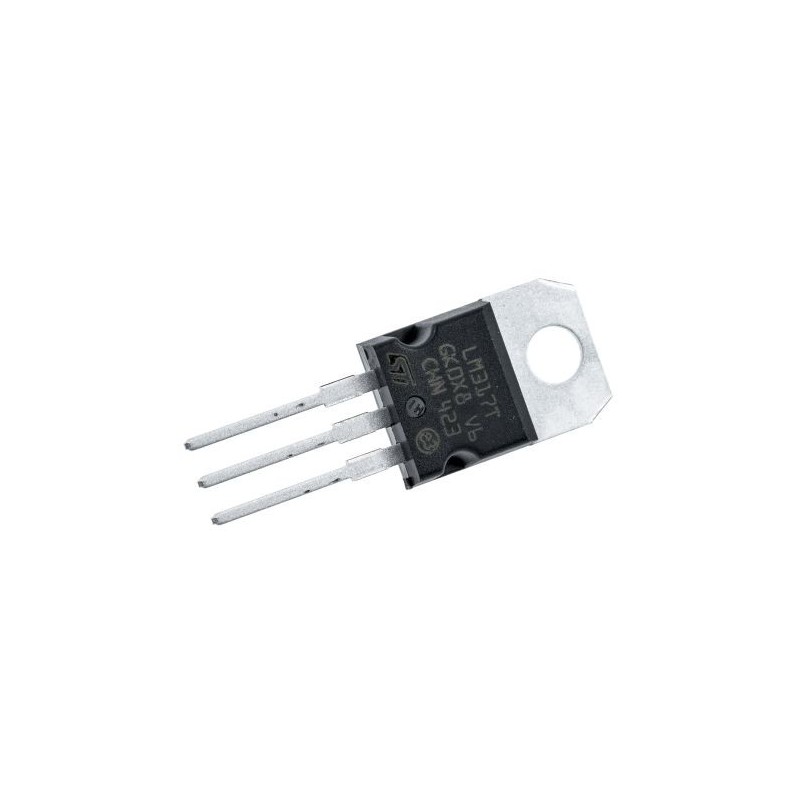

It is an LM317T Adjustable Voltage Regulator. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider. This makes the device exceptionally easy to use and thereby eliminating the need for stocking of many fixed regulators. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Mounting Type | Through Hole |
| Product Series | LM317T |
| No. of Output | 1 |
| Output Type | Adjustable |
| Polarity | Positive |
| Input Voltage Range | 3V to 40V |
| Output Voltage(V) | 1.2 ~ 37 |
| Max. Output Current (A) | 1.5 |
| Operating Temperature Range (°C) | 0 to 125 |
| Load Regulation | 0.001 |
| Line Regulation | 0.0001 |
| Length (mm) | 10 |
| Width (mm) | 4.5 |
| Height (mm) | 15.3 |
| Weight (gm) | 1 (approx.) |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 2 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation :
- Datasheet
Package Includes:
1 x LM317T Adjustable Voltage Regulator.
