IMU/Gyro/Compass

Chip built-in 16bit AD converter, 16-bit data output Driver Chip: MPU6050 Operating Voltage: 3-5V DC Communication: I2C/IIC Protocol Gyro Range: ± 250, 500, 1000, 2000 °/s Accelerometer Range: ± 2 ± 4 ± 8 ± 16 gChip Origin: InvenSense

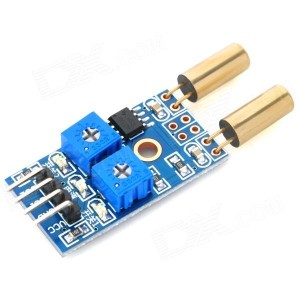

Operating voltage 3.3V-12V A fixed bolt hole for easy installation Wide voltage LM393 comparator Maximum output current: 15mA Can work on low voltages

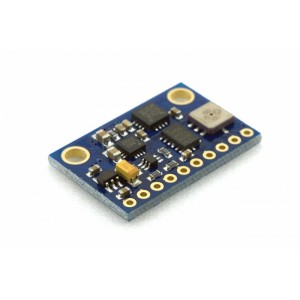

Three selectable full scales (250/500/2000dps) Factor in all g-ranges, up to 13-bit resolution at ±16 g 12-Bit ADC Coupled with Low Noise ARM Sensors Achieves 5 milli-gauss Resolution in ±8 Gauss Fields Pressure range:300 to1100hPa (+9000m to -500m above sea level) I2C interfaces Power supply: 3-5v

3-axis Gyro+Acceleration+Magnetic Fiel Air Pressure Module Power supply: 3-5V Build in ultra low noise linear LDO voltage regulator Built-in onboard filters, which reduce noise from motor and other high current electronics You can easily select two I2C address for MPU6050 by soldered jumper. RoboticsBD

3-Axis Magnetoresistive Sensors and ASIC in a 3.0x3.0x0.9mm LCC Surface Mount Package Temperature Compensated Data Output and Temperature Output Automatic Offset Compensation. RoboticsBD

Supply Voltage: 3.3 V/ 5V. Interface Type: I²C, SPI. Sensing Range: ±2g, ±4g, ±8g, ±16g. Sensitivity X: 28.6 LSB/g. Sensitivity Y: 31.2 LSB/g. Sensitivity Z: 34.5 LSB/g. Ultra Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V. Free-Fall Detection. Tap/Double Tap Detection. RoboticsBD

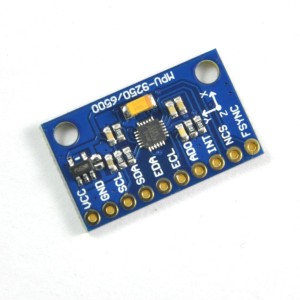

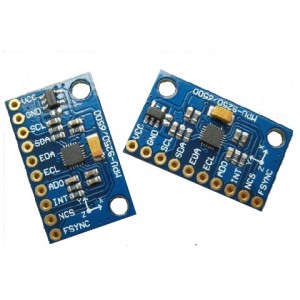

Acceleration, Gyroscope Power Supply: DC3.3V-5V Chip: MPU9250 Size: 22 mm x 17 mm. Gyro range : ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g 9 DOF modules. RoboticsBDChinese Variant MP92 QFN24 PackageThe magnetometer is currently inaccessible via I2C and therefore unavailable. ✅ True 9DOF ModulesOriginal MPU9255 9-Axis Motion Tracking...

Operating Voltage: 1.71V to 3.6V – would typically be operated from 3.3V. Operating Temperature: -40 to +85 deg. Celsius (full accuracy between 0 and +65 deg. C). Peak current: 1.12mA. RoboticsBD Operating Pressure: 300 hPa to 1100 hPa. Accuracy between 700 to 900hPa and 25 to 40 deg. C: ±0.12hPa and ±1.0m.

Operating Voltage: 3.3V-5.5V Low Power Consumption High Accuracy Small Size

Input voltage(V): 6 – 27. Maximum current(A): 43. Input level(V): 3.3 – 5. Duty cycle: 0 – 100%. Path resistance: 16 mΩ at 25°C. Low quiescent current: 7 µA at 25°C.

Wheelbase: 550mm Weight: 550g/720g(without/with gimbal) Adopts S800 upward tilt arm design – Plastic injection moduling Ensures hardness and lighter weight – Brushless gimbal compatible for FPV It comes with PCB center board of soldered The arm equips support ridges for better and faster forward flight. Features pre-threaded brass sleeves.

Based on MAX30105 – heart rate, oximeter, smoke sensor Green, red, and infra-red LEDs Interface: I2C (address 0x57) Compatible with 3.3V and 5V logic levels.

3-axis magnetic electronic compass. Precise heading information. Operating Voltage: 3 -5 V DC. Driver Chip: HMC5883L / QMC5883L Communication: I2C protocol. Measuring range: ± 1.3-8 Gauss.Library: https://github.com/keepworking/Mecha_QMC5883Lhttps://www.arduino.cc/reference/en/libraries/qmc5883lcompass/

Supply Voltage: 3.3 V/ 5V. Interface Type: I²C, SPI. Sensing Range: ±2g, ±4g, ±8g, ±16g. Sensitivity: X: 28.6 LSB/g. Y: 31.2 LSB/g. Z: 34.5 LSB/g. Ultra Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V. Free-Fall Detection. Tap/Double Tap Detection.

Supports 5V/3.3V input Onboard RT9161 faster load the appropriate speed Ideal for noisy power environment Application: DIY project.

AS5600 Magnetic Induction Angle Measurement Sensor

ICM-20948 MEMS Motion Tracking Device Sensor Board 9 Axis

Acceleration, Gyroscope Power Supply: DC3.3V-5V Chip: MPU9250 Size: 22 mm x 17 mm. Gyro range : ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g 9 DOF modulesChinese Variant MP92 QFN24 PackageThe magnetometer is currently inaccessible via I2C and therefore unavailable. ✅ True 9DOF ModulesOriginal MPU9255 9-Axis Motion Tracking Module with...

Onboard LDO Voltage regulator Can be interfaced with 3V3 or 5V Microcontroller. Tap/Double Tap Detection Free-Fall Detection Analog output Build in ultra low noise linear LDO voltage regulator Built-in onboard filters, which reduce noise from the motor and other high current electronics Power LED

Acceleration, Gyroscope Power Supply: DC3.3V-5V Chip: MPU9250 Gyro range : ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g 9 DOF modulesThe magnetometer is currently inaccessible via I2C and therefore unavailable. ✅ True 9DOF ModulesOriginal MPU9255 9-Axis Motion Tracking Module with MagnetometerGY-BNO055 9DOF Absolute Orientation IMU...

LSM6DS3TR-C IMU featuring a 3D digital accelerometer and gyroscope for precise motion tracking Full-scale ranges: ±2/±4/±8/±16g (acceleration) and ±125/±250/±500/±1000/±2000 dps (angular rate) Low power consumption at 0.90 mA in high-performance mode with always-on functionality Features 4 kB Smart FIFO for dynamic data batching and Android M compliance...

Compact 3-axis accelerometer module with MMA8452Q chipset Measures acceleration in ±2g, ±4g, and ±8g ranges Supports both 3.3V and 5V power supply with onboard regulator I²C communication (default address: 0x1D) for easy microcontroller integration Two interrupt pins for efficient data handling without constant polling Ideal for motion detection, tilt...

GY-50 L3G4200D 3-axis gyroscope sensor for angular rate measurement Selectable full-scale ranges: ±250/±500/±2000 dps Supports both I2C and SPI digital output interfaces Integrated temperature sensor with 8-bit output Wide supply voltage: 2.4V – 3.6V with 1.8V compatible I/O Compact breakout board ideal for robotics, navigation, and gaming devices

LIS3DSH high-resolution 3-axis accelerometer with ultra-low power consumption Selectable full-scale ranges: ±2g / ±4g / ±6g / ±8g / ±16g I²C/SPI digital output with 16-bit resolution and embedded FIFO buffer Programmable embedded state machine for autonomous applications Integrated temperature sensor, self-test, and interrupt generation features Wide...

LSM9DS1 9DOF IMU sensor with accelerometer, gyroscope, and magnetometer Provides acceleration, angular velocity, and magnetic field data in 3 axes Adjustable ranges: ±2–16g (accel), ±245–2000 °/s (gyro), ±4–16 gauss (mag) Supports both I²C and SPI interfaces for flexible MCU integration Compact breakout board with axis labels for easy orientation...

ADXL362-based ultra-low power triaxial accelerometer sensor module Power consumption as low as 2µA standby / 270nA wake-up mode Wide measurement ranges: ±2g, ±4g, ±8g with high resolution (1mg/LSB @ ±2g) SPI digital interface for easy MCU integration (Arduino, STM32, ESP32) Built-in temperature sensor for environmental monitoring Compact 21mm × 14mm PCB,...

3-axis accelerometer + 3-axis magnetometer in a single chip Six-axis motion sensing via I2C digital interface Built-in 12-bit ADC with 16-bit data output Adjustable acceleration range: ±2g, ±4g, ±8g Magnetic field detection: ±1.3 to ±8.1 gauss Compact and low-power module for robotics and navigation
