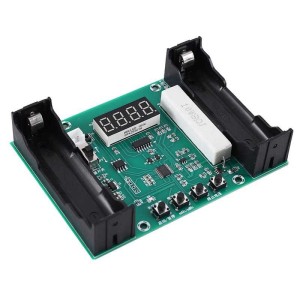

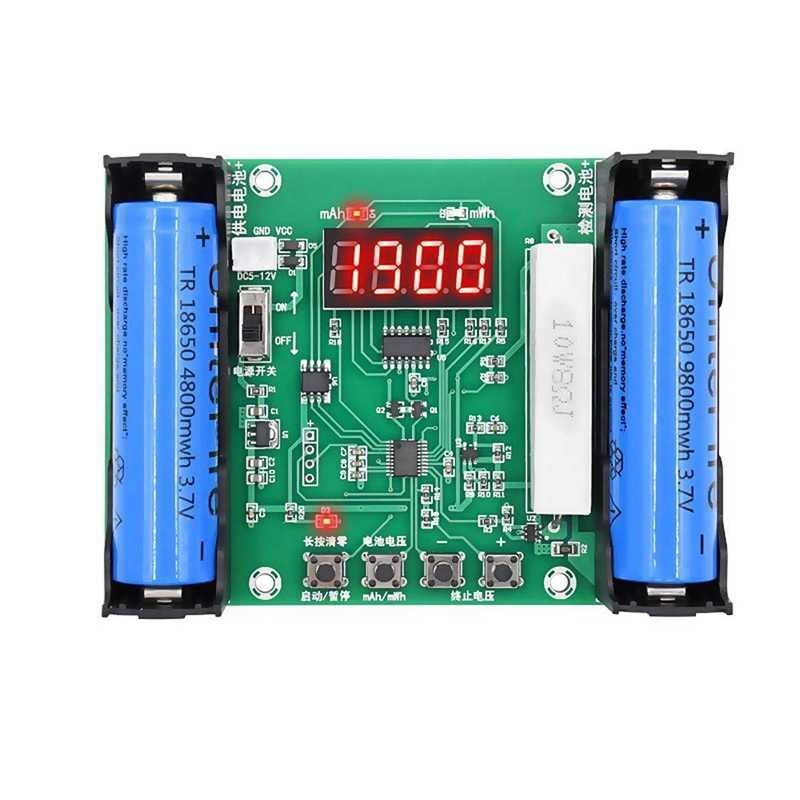

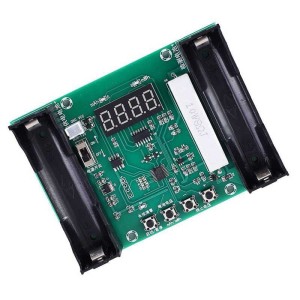

    XH-M240 Battery Capacity Tester

    RBD-1556

    • Model: XH-M240
    • Display accuracy: 0.1
    • Measurement accuracy: 1mAH
    • Power supply: DC 5V-12V
    • Standby current: 5-7mA
    BDT 990
    BDT 990 BDT 990 BDT 990 BDT 990
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 990 Tax excluded
    BDT 990 Tax included
    BDT 0 Tax
    BDT 990 Tax excluded
    BDT 0 Tax
    BDT 990 Tax included
    Quantity
    In-Stock
    4 Items

    10 people have purchased this item
    Only 4 items left in stock
    Description

    It is a Lithium battery capacity tester. It is used to test the voltage, discharge capacity and discharge energy of a 18650 lithium battery. RoboticsBD

    This battery capacity tester is used to test the voltage, discharge capacity, and discharge energy of a 18650 lithium battery. With a dual working power supply, it has high working efficiency and saves your time. It can display discharge capacity and discharge energy. And it supports a parameter memory function, convenient for checking next time.  Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Note: Battery is not included with this product.

    Features:

    1. Dual working power supply
    2. 18650 battery special tester
    3. Support display discharge capacity
    4. Support display discharge energy
    5. Support parameter memory function
    6. Made of high-quality electronic components
    7. Solid, durable, good conductivity and performance
    8. Long service life

    Specification:

    1. Work Voltage:DC 5V~12V or 18650 battery
    2. Stand-by current:5~7mA
    3. Discharge current:500mA
    4. Load power: 10W 8ohm
    5. Measuring voltage accuracy:0.1V
    6. Discharge capacity accuracy:1mAh
    7. Discharge energy accuracy:1mWh
    8. Work Temperature:-25℃~85℃
    9. Work Humidity:5%~95%RH
    10. Size:110*80*25mm

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    ModelXH-M240
    Display Accuracy0.1
    Measurement Accuracy1mAH
    Recommended Power SupplyDC 5-12V
    Standby Current5-7mA
    Discharge Current500mA
    Load Power10W, 8Ω
    Installation Hole3mm
    ColorGreen
    Length (mm)110
    Width (mm)80
    Height (mm)25
    Weight (gm)50
    Shipment Weight0.05 kg
    Shipment Dimensions12 × 8 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation(How to use):

    1. Connect work voltage DC 5V~12V from white XH2.54-2P socket or install a 18650 battery at left battery socket.
    2. Install a measured 18650 battery at the right battery socket.
    3. Turn on the power supply switch. Then the screen will display the current battery voltage.
    4. Set discharge stop voltage. Press button + and - to set discharge stop voltage. Parameters can be saved automatically. It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.
    5. Short press the first(left) button to start measuring. Then the LED indicator D3 will turn ON.
    6. Short press the second button to switch display capacity(mAh), energy(mWh) and voltage.
    7. Long press first(left) button to clear display capacity(mAh) and energy(mWh).
    8. The battery is tested and shows the battery test value when D3 LED indicator start blinking.

    Package Includes:

    1 x XH-M240 Battery Capacity Tester mAh mWh for 18650 Lithium Battery.
