This is MB102 830 Points Solderless Prototype Breadboard + Power Supply Module+ 140 Jumper Wires for Arduino DIY Starter Kit. RoboticsBD
An MB102 830 Points Solderless Prototype PCB Breadboard is an invaluable tool for experimenting with circuit designs whether in the R&D or university lab. A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components. RoboticsBD
This is a 3.3V/5V MB102 Breadboard Power Supply Module which provides a dual 5 V and 3.3 V power rails and has a multi-purpose female USB socket.
The 3.3V/5V MB102 Breadboard Power Supply Module securely fits in a standard 400 or 800 tie points breadboard it also features reverse polarity protection, the module can take 5V to 12V input and can produce 3.3V and +5V. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: Product images may vary from actual product as our stock rotates.
Features :

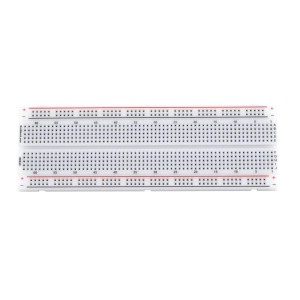

1. Breadboard 830:
- Distribution strip, Tie-point 200
- Terminal Strip, Tie-point 630
- Completely reusable
- Colored coordinates for easy component placement
- Model: MB-102
- Phosphor bronze nickel plated spring clips
- Accepts a variety of wire sizes (29-20 AWG)
- Dimensions:165 x 54 x 8.5mm
2. Breadboard Power Supply Module:
- Brand new & high quality
- Breadboard power supply module, compatible with 5 V, 3.3 V
- Apply to MB102 breadboard
- Input voltage: 6.5-12 V (DC) or USB power supply
- Output voltage: 3.3V/5V can switch over
- Maximum output current:<700 ma
- The fluctuation of two road independent control can switch over to 0 V, 3.3 V, 5 V
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
- Please notice: this item only a Power Supply Module
3. 140 Jumper Wires:
- 100% brand new and high quality
- 120pcs Solderless Breadboard Jumper Cable Lead Kit
- Hard Wire with Angled shape
- Comes with 14 kinds of different length jumper lead, each kind of jumper lead has 10 pcs with different colors, that is to say, there has 120 pcs jumper lead with a different length
- A transparent plastic box for convenient to carry and not easy to lost
- Color: Assorted color
- Quantity: 120 pcs.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Input Voltage Range | 6.5V – 12V |
| Output Voltage(V) | 3.3/5 |
| Max. Output Current (A) | <700m |
| Breadboard Dimensions | Length(mm): 17
Width(mm): 6
Height(mm): 12 |
| Power Supply Module Dimensions | Length(mm): 53
Width(mm): 32
Height(mm): 15 |
| Shipment Weight | 0.175 kg |
| Shipment Dimensions | 18 × 18 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

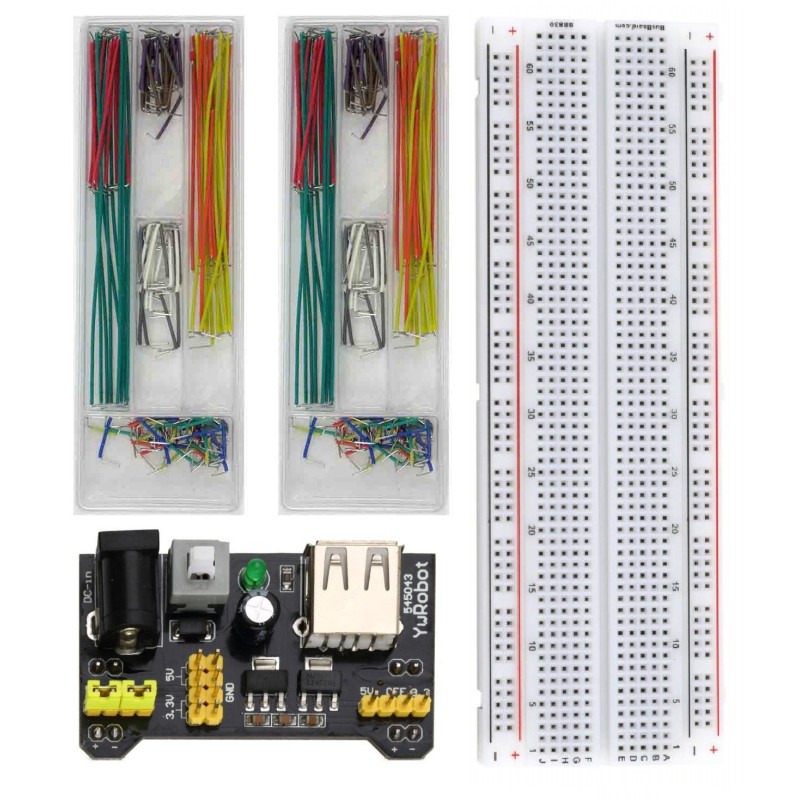

Package Includes:
1 x MB-102 Solderless PCB Breadboard Tie Points Set
2 x Breadboard Jumper set
1 x 3.3V/5V Breadboard Power Supply Module.
