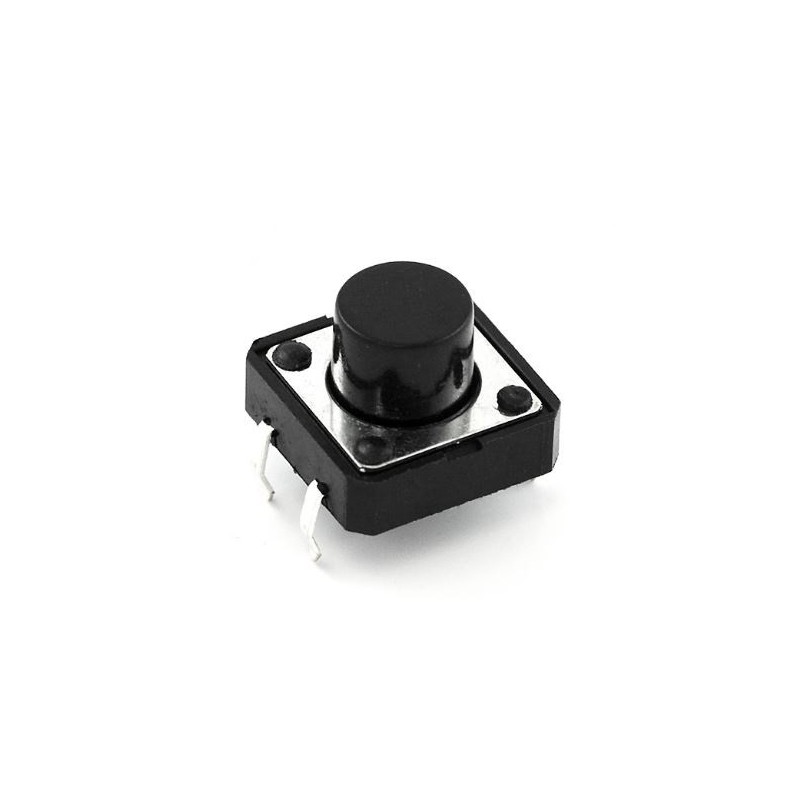

    Push Button Switch 4 Pin (12MM*12MM)

    RBD-1788

    • Through-hole design.
    • Shaft Shape: Round
    • Function: Push to ON
    • High operating force (3.0N or 3.6N) suited to automotive equipment requirements
    • The long life of 300,000 cycles realized despite the high operating force

    BDT 7
    BDT 7 BDT 7 BDT 7 BDT 7
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 7 Tax excluded
    BDT 7 Tax included
    BDT 0 Tax
    BDT 7 Tax excluded
    BDT 0 Tax
    BDT 7 Tax included
    Quantity
    In-Stock
    135 Items

    501 people have purchased this item
    9 people recently added this item to the cart
    135 items in stock
    Description

    12x12 mm Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

    Features :

    1. Through-hole design.
    2. Shaft Shape: Round
    3. High operating force (3.0N or 3.6N) suited to automotive equipment requirements
    4. The long life of 300,000 cycles realized despite the high operating force
    5. Used in the fields of electronic products, household appliances and more.
    6. High precision mechanism design offers acute operation and long service life.
    7. Compact and lightweight, easy to carry and dismantling.
    8. Good electrical conductivity.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Operating Voltage12 V DC
    Operating Current50mA
    On/Off FunctionPush to ON
    Switch TypeMomentary
    Mounting TypeThrough-hole
    Contact MaterialAluminium alloy
    Contact Resistance50mΩ
    Insulation Resistance100MΩ
    Operating Temperature Range-20°C to +70°C
    Operation ForceAbout 3-5N
    Operation Stroke1.05mm
    Body MaterialPlastic
    Mech. & Electrical Life300,000 Cycles
    Protection GradeIP65
    Length (mm)12
    Width (mm)12
    Height (mm)12/10/8/6
    Weight (gm)1 (approx) (each)
    Shipment Weight0.01 kg
    Shipment Dimensions5 × 5 × 1 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes :

    1 x Push Button Switch 4 Pin (12MM*12MM)
