The HEF4511B is a BCD to 7-segment latch/decoder/driver with four address inputs (D0 to D3), an active HIGH latch enable input (LE), an active LOW ripple blanking input (BL), an active LOW lamp test input (LT), and seven active HIGH NPN bipolar transistor segment outputs (Qa to Qg).
When LE is LOW and BL is HIGH, the state of the segment outputs (Qa to Qg) is determined by the data on D0 to D3. When LE goes HIGH, the last data present on D0 to D3 is stored in the latches and the segment outputs remain unchanged. When LT is LOW, all of the segment outputs are HIGH independent of all other input conditions. With LT HIGH, a LOW on BL forces all segment outputs LOW. The inputs LT and BL do not affect the latch circuit.
It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. Featured By RoboticsBD.

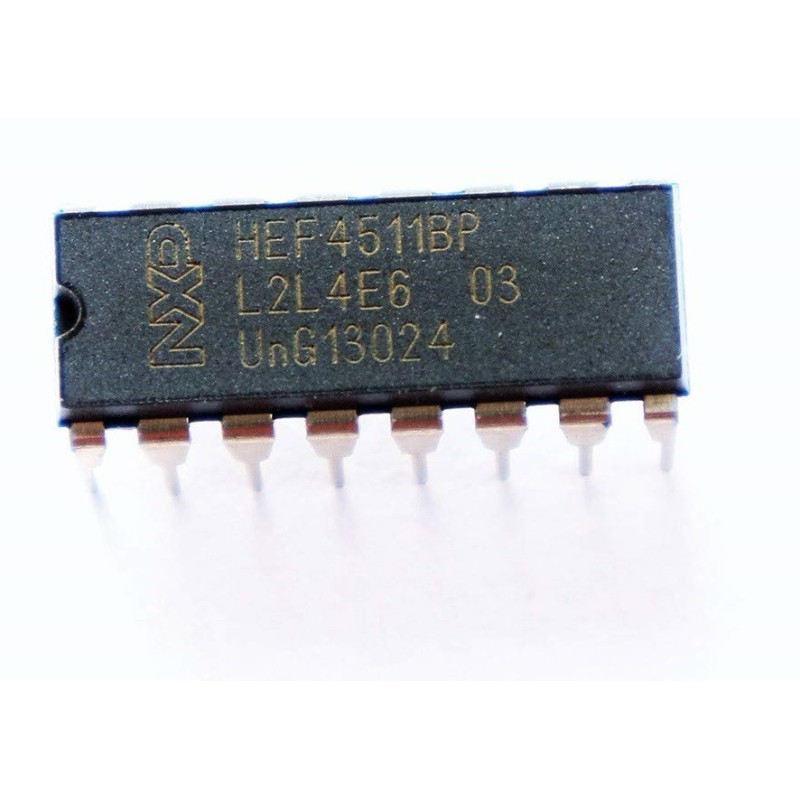

Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40C to +85C and -40C to +125C
- Complies with JEDEC standard JESD 13-B
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Package/Case | PDIP-16 |
| Minimum Supply Voltage (V) | -0.5 |
| Maximum Supply Voltage (V) | +18 |
| Product Type | HEF4511B BCD to 7-segment latch/decoder/driver |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:
1 x HEF4511B BCD to 7-segment.
