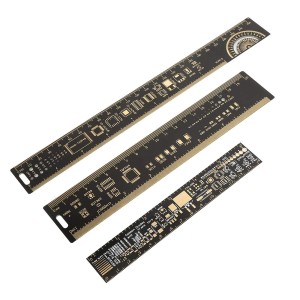

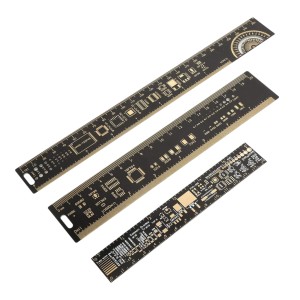

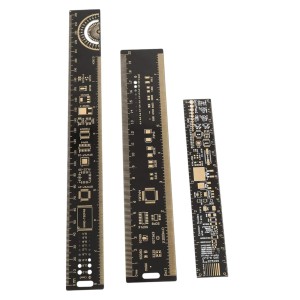

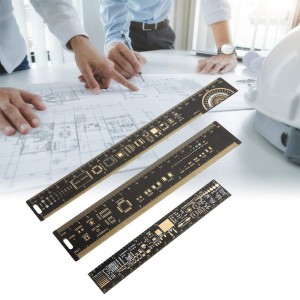

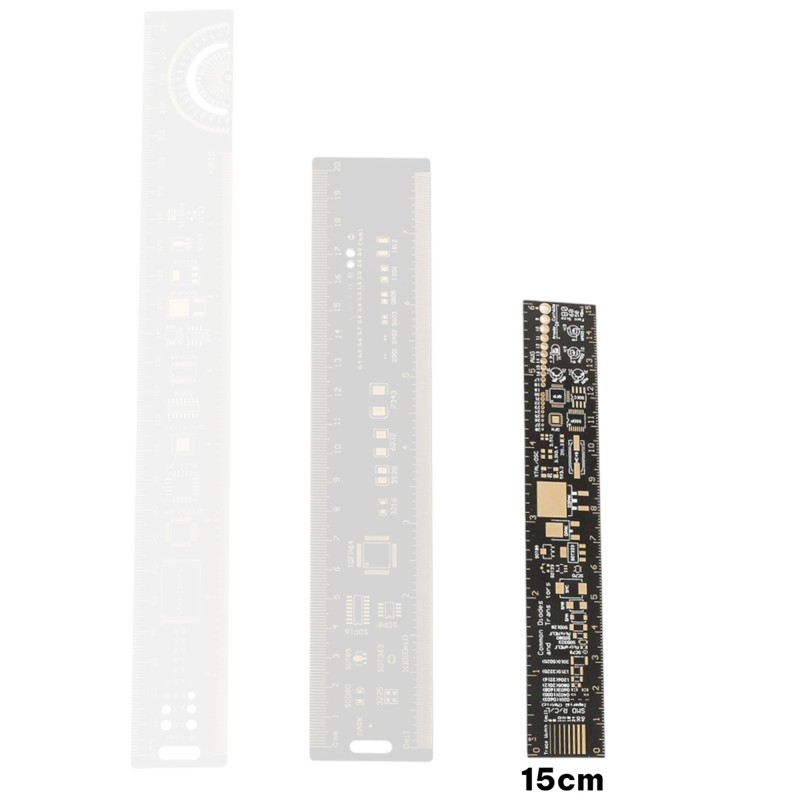

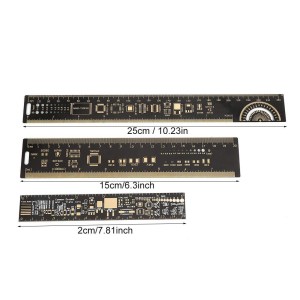

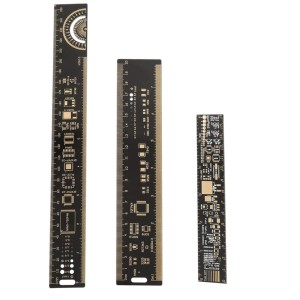

15cm - 5inch Multifunctional PCB Ruler

Reference RBD-2609

Dual-scale measurement in millimeters and inches (15cm/5inch)
Integrated PCB design aids: angle gauges, protractor, IC pin spacing tables, etc.
High-precision and wear-resistant with R-4 gold-plated finish
Ideal for electronic enthusiasts and professionals
Compact and portable for convenient use

Description
Product Details

Description

This 15cm - 5inch Multifunctional PCB Ruler is the perfect companion for any electronic enthusiast or professional. Combining precise measurement with essential PCB design information, it simplifies your workflow and ensures accuracy in every step. Forget juggling multiple tools – this ruler has it all! Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Dual-Scale Measurement: Seamlessly switch between millimeters and inches for your convenience.
Integrated PCB Design Aids: No need for additional charts or references. This ruler features angle gauges, a protractor, IC pin spacing tables, and more, conveniently at your fingertips.
High Accuracy and Precision: R-4 gold-plated surface guarantees precise measurements and long-lasting durability.
Wear-Resistant Construction: Withstands harsh environments and frequent use without compromising performance.
Compact and Portable: Fits easily in your toolbox or pocket for on-the-go tasks.
Ideal for Professionals and DIYers: Whether you're a seasoned engineer or just starting out, this ruler makes PCB design faster and easier.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

PCB Design and Layout: Measure component placement, track spacing, and other critical dimensions with precision.
Soldering and Assembly: Align components easily and check lead spacing against the IC pin spacing table.
Troubleshooting and Repair: Diagnose circuit board issues using the integrated angle gauge and protractor for component alignment verification.
Education and DIY Projects: Ideal for students, hobbyists, and makers working on small electronics projects.
Model Making and Robotics: Accurately measure and cut materials for building intricate models and robots.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Measuring Range	15cm / 5inch
Material	Metal with R-4 gold-plated finish
Features	Dual-scale, PCB design aids, protractor, IC pin spacing tables
Size	155 x 25 mm
Material	PVC, Metal
Size	17 x 11 mm
Shipment Weight	0.015 kg
Shipment Dimensions	15 x 8 x 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 15cm - 5inch Multifunctional PCB Ruler
