The X1009 is designed for data storage purposes and does not support booting from HDD/SSD with the existing firmware currently.
The Raspberry Pi 5 board, SSD/HDD, active cooler, SATA cable or power adapter is not included in the packing list.

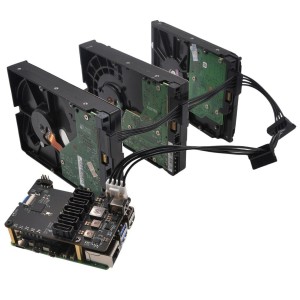

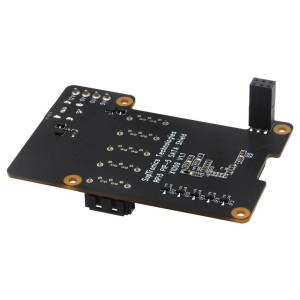

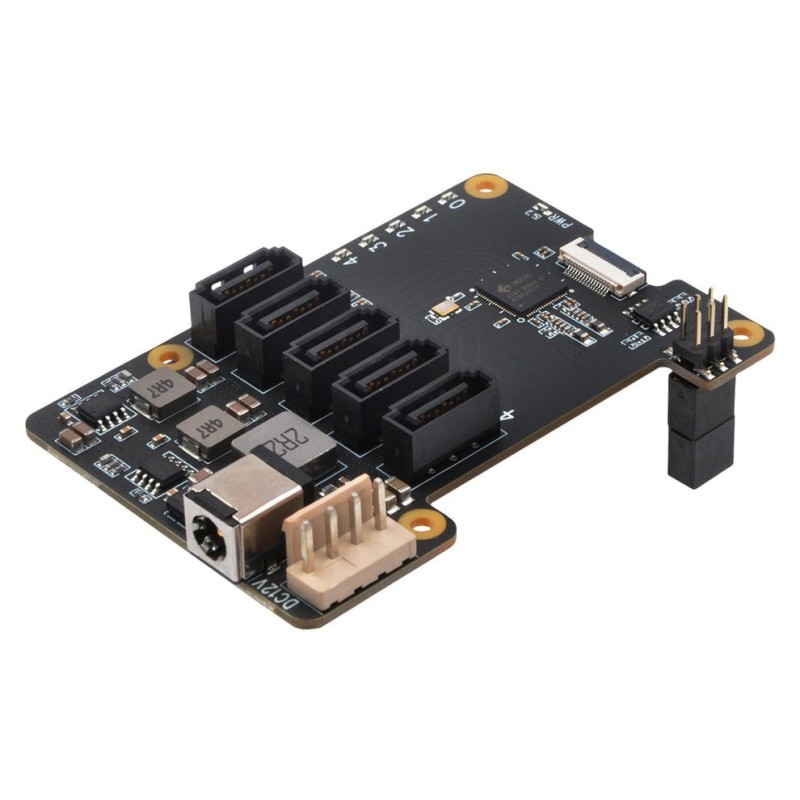

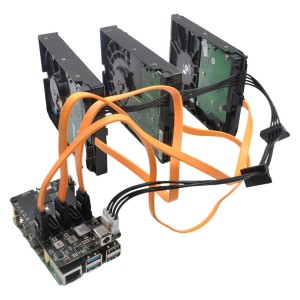

The X1009 PCIe to 5-port SATA expansion board is designed to offer a high-capacity and high-speed storage solution for your Raspberry Pi 5. This board supports the simultaneous connection of 5pcs large-capacity SATA storage devices, with the SATA 3.0 interface reaching speeds of up to 5Gbps.
The X1009 features a 12V input via a standard DC jack and is equipped with high-efficiency DC/DC step-down converters to power both your Raspberry Pi 5 and PCIe devices concurrently, simplifying the power supply to a single source.
Ideal for creating a home media center or setting up a network-attached storage (NAS) system, the X1009 allows you to store and stream your videos, music, and digital photos within your home or even remotely around the world. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

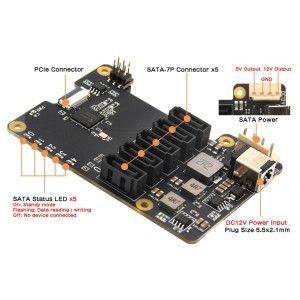

| General Specifications | |
| Compatibility | Raspberry Pi 5 |
| SATA Ports | 5 x SATA 3.0 |
| Data Transfer Speeds | Up to 5Gbps, 3Gbps, and 1.5Gbps |
| Input Voltage | 12V |
| PCB Size | 85mm x 57.2mm |
| Compliance | SATA 3.0, PCI-Express v2.0, v1.0 |
| Power Delivery | High-efficiency DC/DC step-down converter |
| LED Indicators | Blue LEDs for power and drive status |
| Cooling Compatibility | Official active cooler |
| Power State Support | HAT+ STANDBY |
| Additional Accessories | Power SATA splitter cable |
| Shipment Weight | 0.1132 kg |
| Shipment Dimensions | 10 × 10 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Geekworm X1009 PCIe to 5-Port SATA Shield for Raspberry Pi 5
