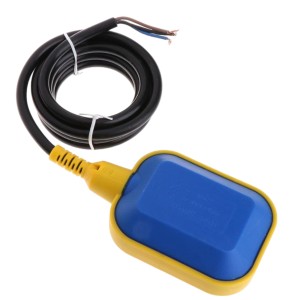

Square 6M Float Switch - Industry Pump Tank Sensor Imported

Reference RBD-2974

Automatic On/Off control for pumps, motors, and valves.
Rated for 250V at 10(8A) and 380V at 10(4A).
6-meter wire length with IP68 protection.
Suitable for non-flammable liquids; not explosion-proof.
High buoyancy and hermetically sealed for reliable operation.

Description
Product Details

Description

Cable Float Switch is a control device for automatic On/Off pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing, the float Switch has a buoyancy that guarantees smooth, trouble-free operation under all conditions. The switch has a double chamber and a final remolding finish to make it absolutely hermetic. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Automatic Control: Provides automatic On/Off control for pumps, motors, and magnetic valves.
High Voltage Compatibility: Operates at 250V (10(8A)) and 380V (10(4A)).
Long Wire Length: Comes with a 6-meter wire for flexible installation.
Durable and Reliable: IP68 protection class and hermetically sealed design ensure long-lasting performance.
High Buoyancy: Large float casing guarantees smooth operation.
Wide Temperature Range: Operates effectively between 0~75℃.
Extended Lifespan: Electrical life of 100,000 operations and mechanical life of 500,000 operations.
Versatile Use: Suitable for water, sewage, oil, and most acids and alkalis.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Industrial Pumps: Automatic control of pump operation based on fluid levels.
Fluid Tanks: Regulation of fluid levels in tanks and wells.
Alarms: Acts as an alarm device for pre-determined fluid surface levels.
Non-Flammable Liquids: Suitable for use in various non-flammable liquids at 250V.
Pressure Testing: Tests the pressure of the liquid in tanks and wells.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Type	10M Float Switch For Industry Pump Tank Sensor
Input Voltage (V)	10(8A) 250V ~ 10(4A) 380V
Wire Length(mm)	10m
working Pressure	0.1MPa
Operating Temperature (°C)	0~75℃
Electrical life	1 x 100 000 times
Mechanical life	5 x 100 000 times
P3D Material	Plastic

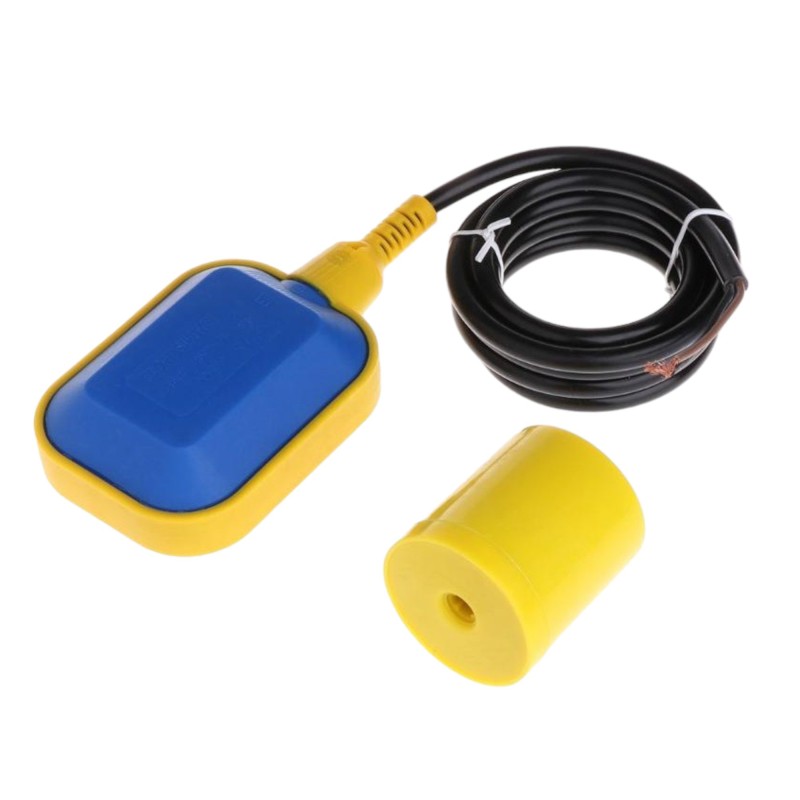

Rectangle Box	103x78x45 mm
Cylinder	61x55mm
Color:	yellow + blue
Shipping Weight	1.24 kg
Shipping Dimensions	19.5 × 13 × 12 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Square 6M Float Switch - Industry Pump Tank Sensor
