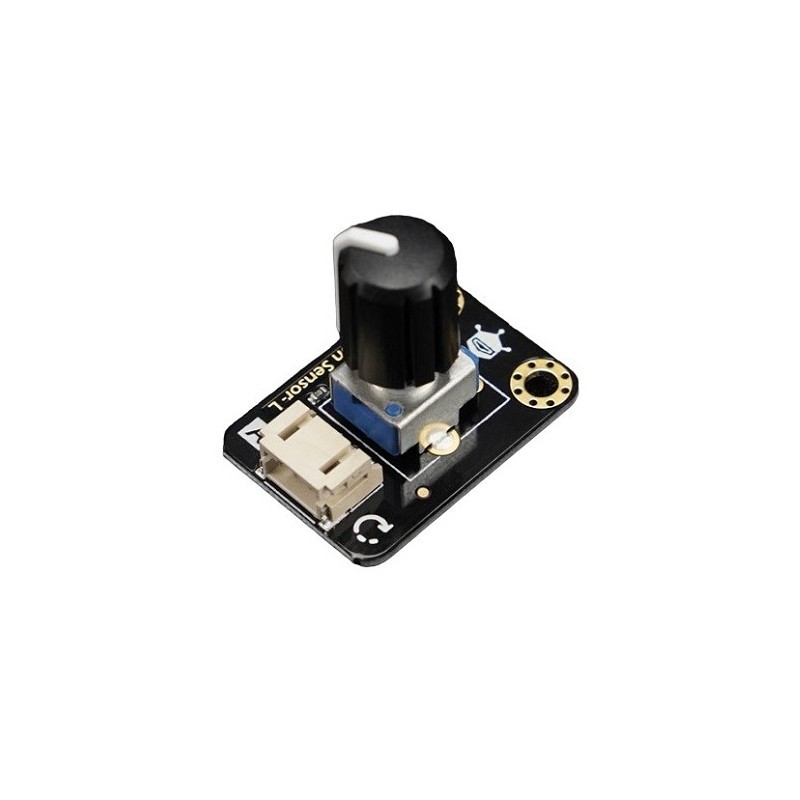

The Gravity Analog Rotation Potentiometer Sensor for Arduino is a versatile input device designed for precise position control and analog signal learning. Featuring a 300° rotation range, it provides smooth, continuous analog output that can be read by Arduino, Raspberry Pi, or other microcontrollers. The Gravity-compatible interface ensures easy plug-and-play connectivity with IO Expansion Shields, making it perfect for beginners and prototyping. Operating within 3.3V–5V, this sensor supports a wide range of applications—from learning analog principles to creating MIDI instruments and smart control systems. Its compact design, immersion gold surface, and stable output make it an excellent choice for interactive electronics and educational projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Rotation Range: Offers 300° analog rotation for smooth position sensing.
Easy Integration: Gravity interface ensures quick plug-and-play with Arduino expansion shields.
Analog Output: Provides precise voltage variation for real-time control feedback.
Broad Compatibility: Operates on 3.3V–5V, suitable for Arduino, Raspberry Pi, Intel Edison, and Curie.
Educational Value: Perfect for learning about analog signals and potentiometer functionality.
Durable Design: Features immersion gold surface and high-quality connector.
Compact Size: Measures only 22 × 31 mm, ideal for embedded projects.
Standard Mounting Structure: 5mm spacing between 3mm mounting holes for easy installation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Arduino Projects: Ideal for analog input control in robotics and automation.
Educational Experiments: Great for learning voltage measurement and analog signal processing.
Interactive Devices: Use for MIDI controllers or custom user interfaces.
DIY Electronics: Implement as a knob for brightness, volume, or speed adjustment.
Sensor Development: Serve as a reference module for analog-to-digital experiments.
Raspberry Pi Integration: Connect with 3.3V systems for data acquisition or automation control.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | Gravity Analog Rotation Potentiometer Sensor |
| Operating Voltage | 3.3V – 5V |
| Interface Type | Analog |
| Rotation Range | 300° |
| Connector Type | Gravity 3-pin interface |
| Material | Immersion Gold Surface PCB |
| Mounting Hole Spacing | 5mm between 3mm holes |
| Output Signal | Variable analog voltage |
| Dimensions | 22 × 31 mm (0.87 × 1.22 in) |
| Compatibility | Arduino, Raspberry Pi, Intel Edison, Curie |
| Shipment Weight | 0.012 kg |
| Shipment Dimensions | 4 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
What is potentiometer?
"A potentiometer is an instrument for measuring the potential (voltage) in a circuit. A fraction of a known voltage from a resistive slide wire is compared with an unknown voltage by means of a galvanometer. The sliding contact or wiper of the potentiometer is adjusted and the galvanometer briefly connected between the sliding contact and the unknown voltage. The deflection of the galvanometer is observed and the sliding tap adjusted until the galvanometer no longer deflects from zero. At that point the galvanometer draws no current from the unknown source, and the magnitude of voltage can be calculated from the position of the sliding contact."
Package Includes:
1 x Gravity Analog Rotation Potentiometer Sensor for Arduino - Rotation 300°
