Reference: RBD-2615
Banner

Melting Temperature 170°C Approx. (Tested by RoboticsBD LAB)
We suggest this solder wire/lead paired with this solder to make your soldering work easier.
Check GOOT Original KX-60R Soldering Iron 45W
Check GOOT Original KX-40R Soldering Iron 40W
This soldering wire has good solderability, insulation resistance, no spattering, and non-corrosive. Widely used in electrical and electronics, solder parts like a circuit board, electronics devices, and others.
For high-reliability soldering, a quality soldering lead is essential. That’s why we offer this original soldering lead to meet your daily needs. Often, soldering becomes challenging when the solder wire doesn’t melt quickly enough to form a strong bond with the components. This is usually due to using low-quality soldering irons or cheap soldering wires.
Soldering is an art, and having the right tools makes all the difference. If you solder regularly, we highly recommend investing in a premium-quality soldering iron and soldering wire, just like this one. Featured by RoboticsBD, it’s designed to deliver superior performance and reliability for your projects.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
60/40 solder, also known as alloy Sn60Pb40, consists of 60% tin and 40% lead, belonging to the soft solder category. Despite its melting point, closely resembling the eutectic temperature, it's classified as non-eutectic solder with a melting point at 190 degrees Celsius. This solder flows smoothly, making it user-friendly.
Renowned for excellent thermal and electrical conductivity, 60/40 solder forms robust, permanent metal bonds, ideal for electronics and PCB manufacturing. Proper storage in a non-corrosive, dry environment, ranging from 10 to 40 degrees Celsius, is crucial. However, its drawback lies in its non-eutectic nature and a relatively high melting range.
Suitable for joining copper and its alloys, it's less apt for shock or vibration-exposed joints. Offered in solid wires, acid core, and rosin core varieties, it's favored for dip soldering baths due to its narrow melting range.
60/40 solder proves perfect for electronic and electrical connections, compatible with heat sources like air-fuel torches and soldering guns. It complies with ASTM B32 Alloy Grade Sn 60 and J-STD-006 Sn60Pb40Sb0.4 standards. Being soft, it minimizes crack formation when joints encounter movement during cooling.
| General Specification | |
| Material | Mix: 60% Sn / 40% Pb |
| Wire Diameter (mm) | 0.8 |
| Flux (%) | Yes |
| Width (mm) | |
| Height (mm) | |
| Weight (gm) | 50 with Spool |
| Shipment Weight | 0.050 kg |
| Shipment Dimensions | 6 × 6 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.

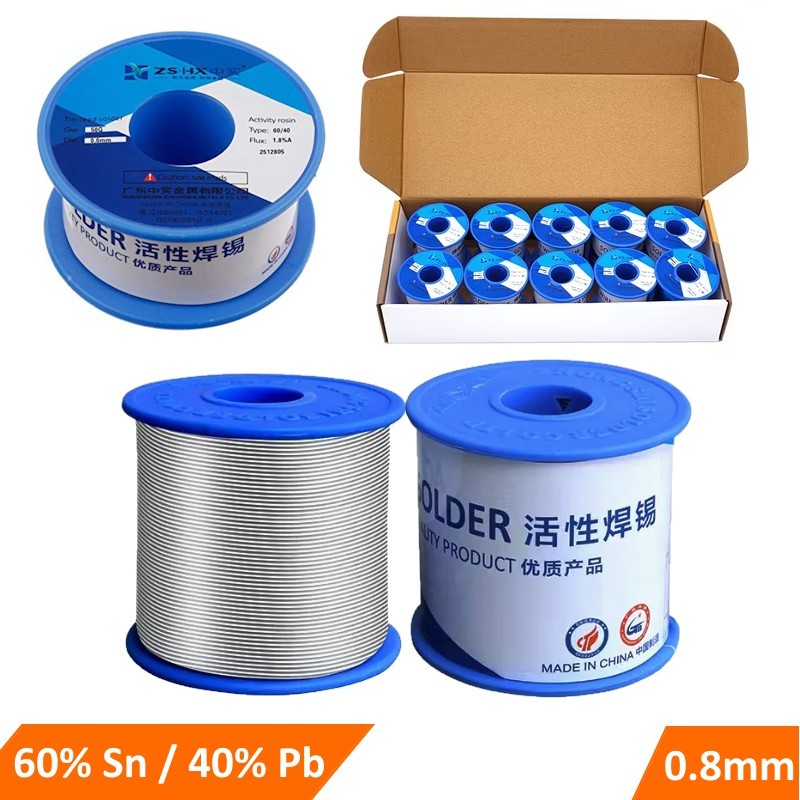

1 x Premium 60/40 Sn Pb Tin Soldering Lead with Rosin Low Melting Point 50g Spool
