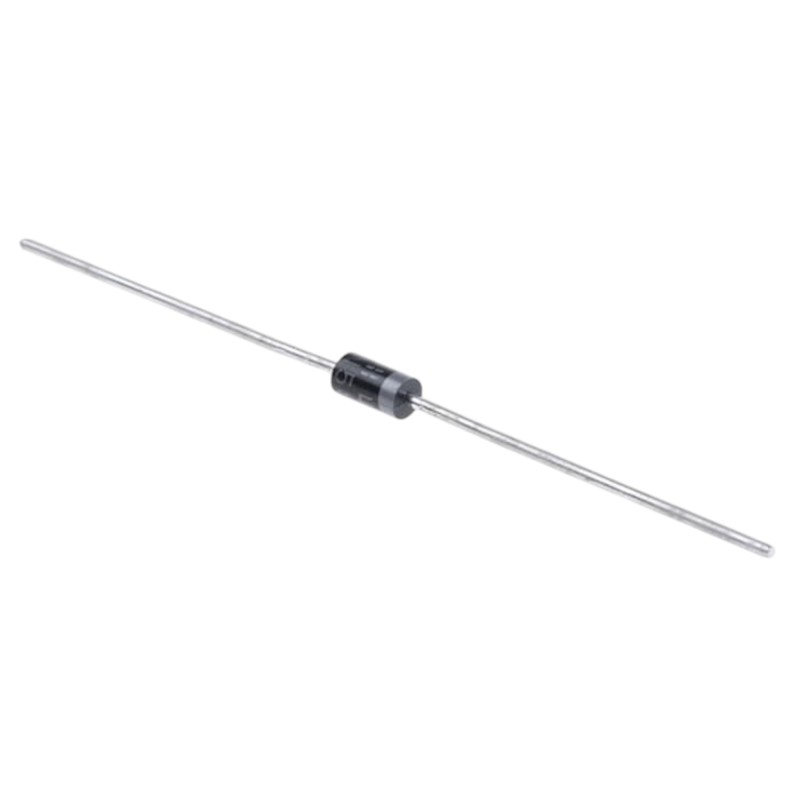

    1N5819 Schottky Diode 40V 1A

    RBD-3376

    • 1N5819 Schottky Diode – 40V, 1A fast switching rectifier for efficient power circuits
    • Ultra-low forward voltage drop (0.2–0.45V) for reduced power loss
    • High-speed switching ideal for SMPS and DC-DC converters
    • Compact DO-41 axial package for easy through-hole mounting
    • Reliable reverse polarity protection for Arduino, ESP, and embedded systems
    • Suitable for solar blocking, battery charging, and general rectification
    BDT 3
    BDT 3 BDT 3 BDT 3 BDT 3
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 3 Tax excluded
    BDT 3 Tax included
    BDT 0 Tax
    BDT 3 Tax excluded
    BDT 0 Tax
    BDT 3 Tax included
    Quantity
    In-Stock
    531 Items

    78 people have purchased this item
    8 people recently added this item to the cart
    531 items in stock
    Description

    The 1N5819 Schottky Diode is a high-performance 40V 1A rectifier designed for low-loss and fast-switching power applications. Thanks to its Schottky barrier design, it offers a significantly lower forward voltage drop compared to standard silicon diodes, resulting in improved efficiency and reduced heat generation. This makes it ideal for switching power supplies, DC-DC converters, reverse polarity protection, and battery charging circuits. Its DO-41 axial package ensures easy integration into through-hole PCB designs and prototyping boards. Whether you are building an Arduino-based project, an ESP power module, or a solar blocking circuit, the 1N5819 provides stable and reliable performance. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Low Forward Voltage Drop – Minimizes energy loss and increases overall circuit efficiency.

    2. Fast Switching Speed – Perfect for high-frequency switching power supplies and DC-DC converters.

    3. High Surge Capability – Handles up to ~25A peak surge current for added reliability.

    4. Efficient Heat Performance – Generates less heat compared to standard rectifier diodes.

    5. Reliable Reverse Protection – Protects sensitive microcontrollers and modules from polarity damage.

    6. Easy Through-Hole Mounting – DO-41 axial package simplifies soldering and prototyping.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Reverse polarity protection in Arduino, ESP32, and embedded systems.

    2. Blocking diode for solar panel battery charging circuits.

    3. Output rectification in switching power supplies (SMPS).

    4. DC-DC buck and boost converter circuits.

    5. Battery-powered electronics and portable devices.

    6. General-purpose rectification in hobby and industrial electronics.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Product Name1N5819 Schottky Diode
    Diode TypeSchottky Barrier Rectifier
    Maximum Repetitive Reverse Voltage40V
    Average Forward Current1A
    Peak Surge Current~25A
    Forward Voltage Drop0.2V – 0.45V
    Package TypeDO-41 Axial
    Operating Temperature−65°C to +125°C
    Mounting TypeThrough-Hole
    Shipment Weight0.001 kg
    Shipment Dimensions5 × 5 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x 1N5819 Schottky Diode 40V 1A
