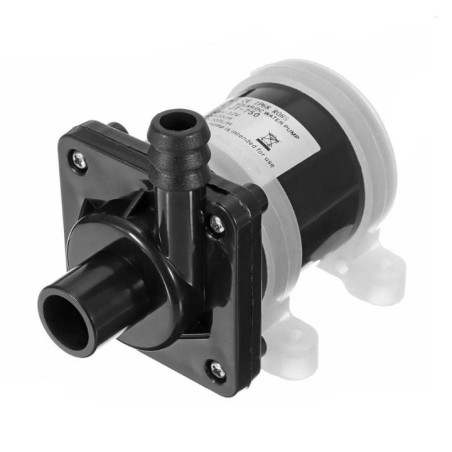

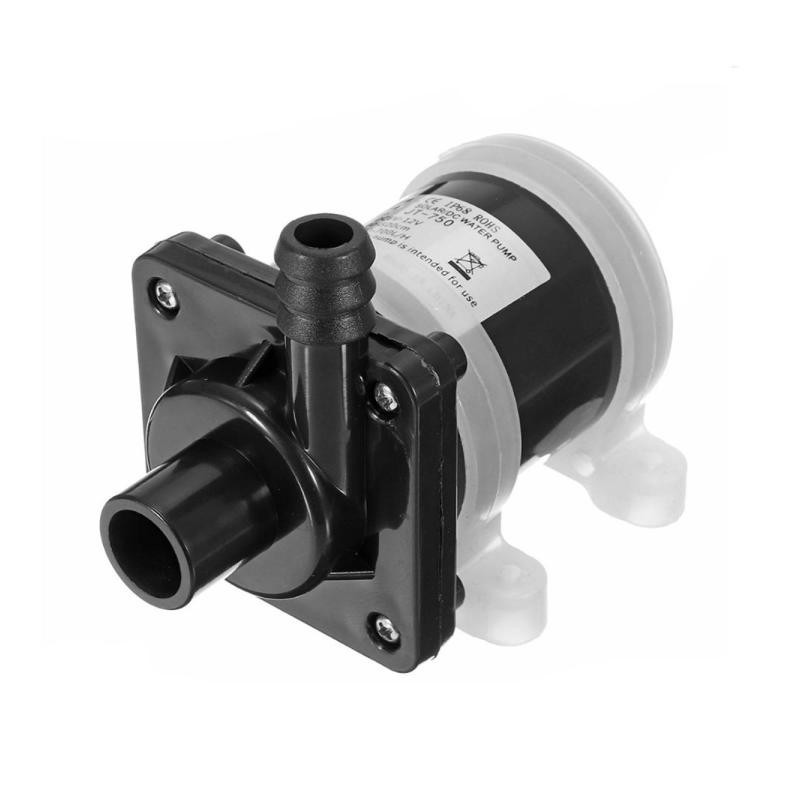

The JT750 Submersible Brushless DC Water Pump is a compact, energy-efficient, and durable solution for continuous water circulation and transfer applications. Operating on a DC 6–12V power supply, it delivers a maximum flow rate of 10L/min (600L/H) with an impressive lift height of up to 5 meters (16 feet) — making it ideal for solar fountains, aquariums, hydroponics, garden irrigation, and cooling systems.
Product Description:
The JT750 Submersible Brushless DC Water Pump is a compact, energy-efficient, and durable solution for continuous water circulation and transfer applications. Operating on a DC 6–12V power supply, it delivers a maximum flow rate of 10L/min (600L/H) with an impressive lift height of up to 5 meters (16 feet) — making it ideal for solar fountains, aquariums, hydroponics, garden irrigation, and cooling systems.
Featuring a brushless magnetic rotor motor, this pump ensures low noise operation, high efficiency, and a long service life exceeding 40,000 hours. The sealed stator and electronics are encapsulated in epoxy resin, ensuring reliable waterproof performance for submersible use.
Designed for versatility, the pump can operate across a wide voltage range (6V–12V), allowing integration with batteries, solar panels, or DC adapters.
Key Features:
Wide voltage range: Operates from DC 6V to 12V
High flow performance: Up to 10L/min (600L/H or 160GPH)
Maximum lift height: Up to 5 meters (16 ft)
Low power consumption: Only 8W @ 12V / 1.1A
Brushless magnetic motor for long lifespan and quiet operation (<38dB)
Fully sealed, epoxy-encapsulated design for waterproof reliability
Maintenance-free and energy-efficient operation
Suitable for submersible use and small circulation systems
Compact and lightweight – ideal for solar and portable projects
Technical Specifications:
| Parameter | Details |
|---|---|
| Model | JT750 |
| Operating Voltage | DC 6V – 12V |
| Rated Voltage | 12V DC |
| Rated Current | 1.1A |
| Power Consumption | 8W |
| Maximum Flow Rate | 10L/min (600L/H, 160GPH) |
| Maximum Lift Height | 5m (16 ft) |
| Noise Level | <38 dB |
| Inlet Diameter | 16mm (3/5 inch thread) |
| Type | Brushless Magnetic Submersible Pump |
| Working Life | >40,000 hours |
| Application | Submersible (not suitable for strong acid/base fluids) |
| Dimensions | Compact, lightweight design |
| Polarity | Red: + Positive |
Applications:
Solar Water Pumps and Garden Fountains
Aquarium and Fish Tank Circulation
Hydroponics and Water Cooling Systems
Car or PC Cooling Systems
Humidifiers and Air Conditioners
Small-Scale Irrigation or Filtration Systems
Package Includes:
1 × JT750 12V 8W Submersible Brushless Water Pump
Why Choose This Pump?
This DC 6–12V Brushless Submersible Pump delivers quiet, efficient, and maintenance-free performance for a variety of circulation and pumping applications. Its magnetic drive design eliminates friction wear, while the epoxy-sealed construction ensures reliable waterproof operation for long-term use.
Power your water systems efficiently — choose the JT750 12V Brushless Submersible Pump for reliable, quiet, and long-lasting performance!
