Product Description

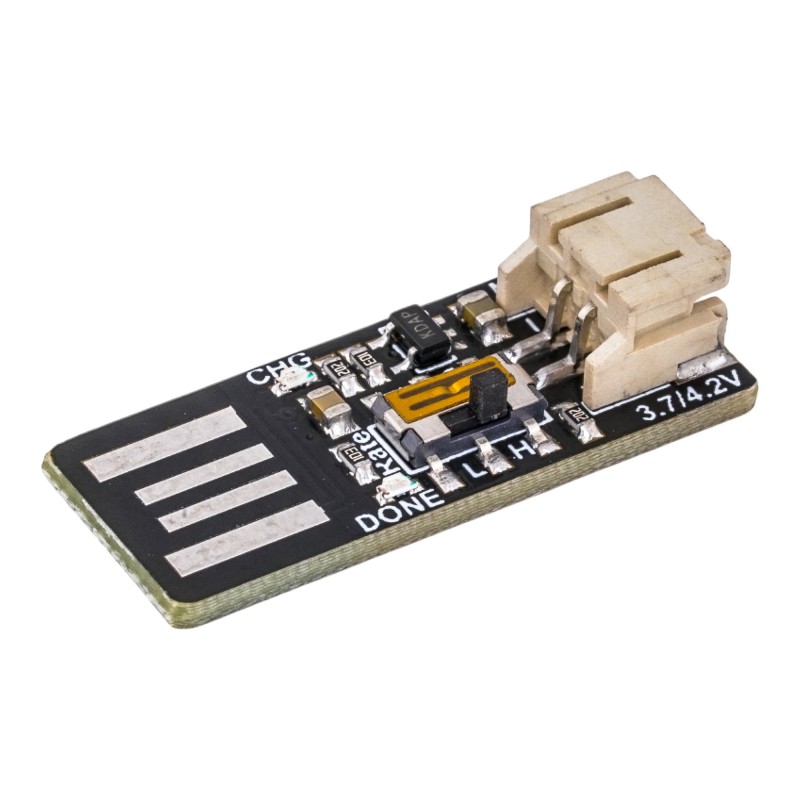

The Micro LiPo USB Charger v2 is an ultra-compact and easy-to-use charging solution for single-cell 3.7 V / 4.2 V Lithium-ion and Lithium-polymer batteries. Its tiny form factor makes it ideal for portable projects, embedded devices, and compact enclosures where space is limited.
Charging is extremely simple: plug the gold-plated USB contacts directly into any standard 5 V USB port and connect your battery to the 2-pin JST connector. The board automatically manages the entire charging process using a safe three-stage charging profile—preconditioning, constant-current fast charging, and constant-voltage topping—ensuring long battery life and reliable operation.
Two onboard status LEDs clearly indicate charging progress:
The default charging current is 100 mA, making it safe for small-capacity batteries and low-power USB sources. For faster charging, a built-in slide switch allows you to increase the charge current to 500 mA, suitable for batteries 500 mAh or larger, with no soldering required.
Key Features
Designed for single-cell 3.7 V / 4.2 V Li-ion & Li-polymer batteries
Direct 5 V USB power input via PCB-style USB contacts
Automatic 3-stage charging (precondition → fast charge → trickle)
Selectable charge current:
Clear LED indicators for charge status
Extremely compact size, ideal for embedded projects
Fully assembled and tested
2-pin JST battery cable included
Important Notes
Intended for modern 3.7 V / 4.2 V Li-ion or Li-polymer cells only
Not suitable for older 3.6 V / 4.1 V battery chemistries
The board may become warm during charging—handle by the edges and allow it to cool before disconnecting the battery
Avoid touching components while charging
Typical Applications
Wearable electronics
Small IoT devices
DIY gadgets and prototypes
Portable sensors and controllers
Battery-powered microcontroller projects
Package Includes
