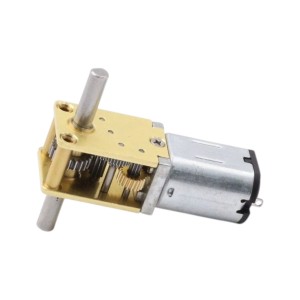

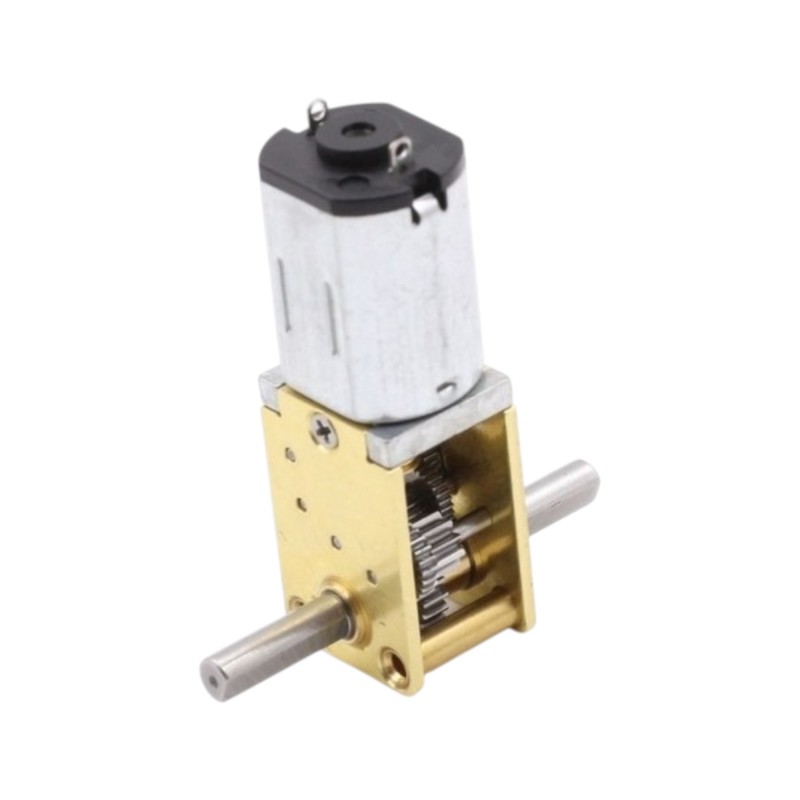

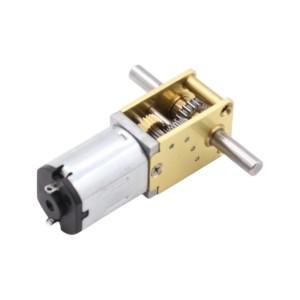

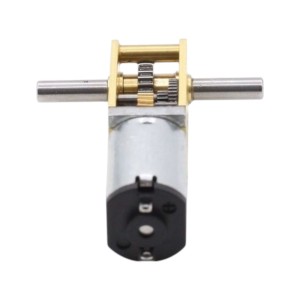

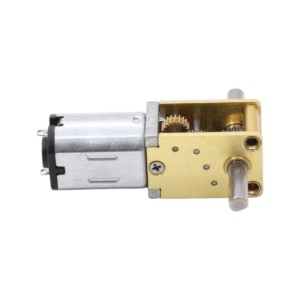

1218WAN 200RPM N20 Gear Motor

RBD-4177

  • Metal N20 worm gear DC motor with high torque output
  • Stable 200 RPM slow-speed operation for precise control
  • 12V DC rated voltage with low no-load current consumption
  • Worm gear design provides self-locking capability
  • Compact, durable, and suitable for long-term operation
  • Ideal for smart locks, access control, and automation systems
BDT 650
BDT 650 BDT 650 BDT 650 BDT 650
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 650 Tax excluded
BDT 650 Tax included
BDT 0 Tax
BDT 650 Tax excluded
BDT 0 Tax
BDT 650 Tax included
Quantity
Last items in stock
2 Items

1 person recently added this item to the cart
Only 2 items left in stock
Description

The 1218WAN 10RPM N20 Motor Gear is a compact N20 worm gear DC motor engineered for applications that demand high torque at very low speed. Operating at 12V DC, this motor delivers a steady 200 RPM output while maintaining low current consumption, making it efficient and reliable for continuous-duty systems. The worm gear mechanism not only increases torque but also offers a natural self-locking effect, which is especially critical in smart lock and security applications. Built with a metal gear assembly and brushed motor design, it ensures durability, smooth operation, and consistent performance even under load. Thanks to its small footprint and robust construction, this motor integrates easily into space-constrained mechanical designs and smart automation projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Worm gear structure provides high torque and anti-backdrive locking

  2. Low-speed 200 RPM output ideal for controlled motion

  3. Metal gearbox enhances durability and wear resistance

  4. Low no-load current improves power efficiency

  5. Compact N20 form factor fits tight installation spaces

  6. Reliable brushed motor design for stable performance

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Smart door lock and access control systems

  2. Electronic locking and latching mechanisms

  3. Small automation and actuator assemblies

  4. Security devices requiring self-locking motors

  5. DIY robotics and embedded control projects

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model NumberJGY-N20S
Motor TypeN20 Worm Gear DC Motor
CommutationBrush
Rated VoltageDC 12V
No-Load Speed200 RPM
No-Load Current30 mA
Torque Range0.3 – 3.3 kg·cm
Stall Current0.7 A
Gearbox MaterialMetal
Efficiency ClassIE1
Motor WeightApprox. 25 g
Shipment Weight0.0135 kg
Shipment Dimensions10 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x 1218WAN 200RPM N20 Gear Motor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
