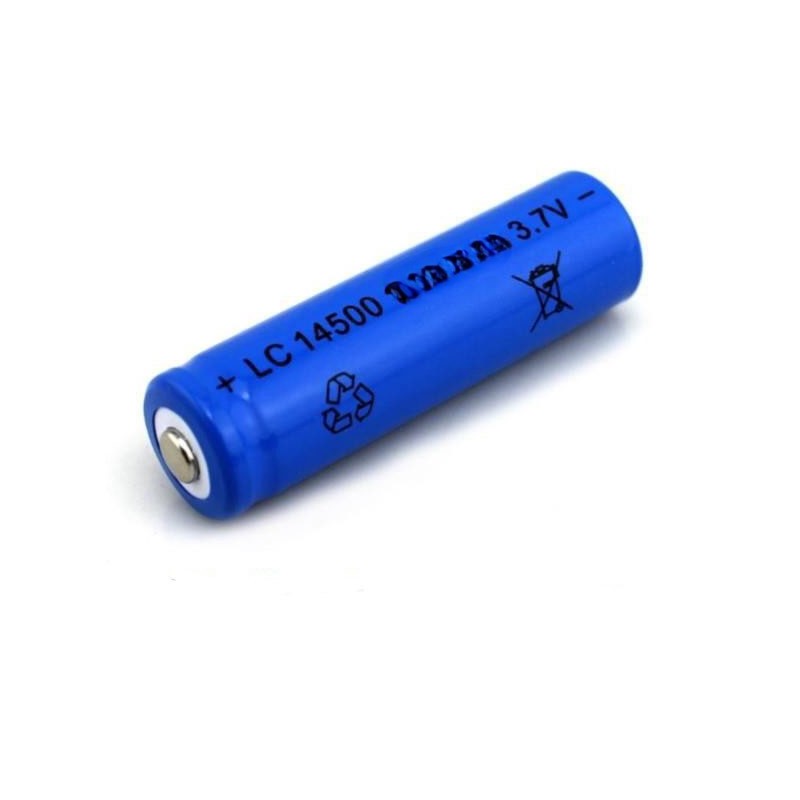

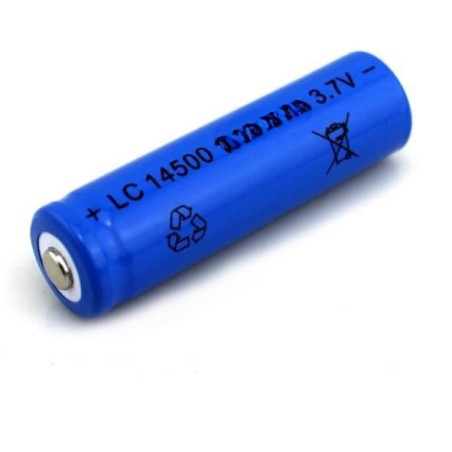

This Standard 14500 850mAh 3.7 Volt Rechargeable Li-Ion Battery is a single cell compact and powerful battery cell with 850 mAh capacity. This Li-on Battery is very convenient to install in your project where 3.76 Volt with high capacity is needed. RoboticsBD
The Standard 14500 850mAh 3.7V Rechargeable Li-Ion Battery is a source of power for various portable devices including flashlights, hobby transmitters, and receivers, etc.
This Battery can be the best Replacement to the normal Non-Rechargeable AA Battery used in many applications such as in RC Transmitter/Receiver Remote, which can make your flight driving experience very cost-effective and efficient in terms of power output than that of conventional AA batteries. RoboticsBD
Product Images are shown for illustrative purposes only and may differ from the actual product.
14500 batteries and AA batteries may look alike in size, but they have entirely different chemistries. The 14500 battery, which is rechargeable, operates at a voltage of 3.7V, whereas the AA battery operates at 1.5V. Despite their similar size, using a 14500 battery in place of an AA battery could potentially damage your device due to the higher voltage.
The battery terminals can be used in any compatible battery adapter/holder or it can be permanently soldered to your application’s power source wires. Featured By RoboticsBD.
We are supplying a range of Lithium-Ion Batteries which especially covers a variety of 18650 Lithium-ion Batteries, check them now
We are supplying a range of AA Battery Holder, check them now
Note: Product images/ Components brand may vary from actual product as our stock rotates.
This is a clone battery, and we cannot guarantee the ampere rating for its capacity. The actual capacity will likely be a lot less than the rated capacity. |
Please ensure you fully charge the battery with a proper charger before using it for the first time.
Note: This is a clone battery, and while the outer shell may be labeled as a Ni-Cd battery, it actually contains a Li-ion cell. This is often done because the size of an AA Ni-Cd battery and a 14500 Li-ion battery is very similar, so manufacturers may reuse Ni-Cd shells for convenience or cost-saving purposes. Please be aware that: Ni-Cd batteries typically have a nominal voltage of 1.2V. Li-ion batteries, on the other hand, have a nominal voltage of 3.7V.
Important: After fully charging the battery, check its voltage using a multimeter. If the voltage reads around 4.2V when fully charged, it is a Li-ion cell, not Ni-Cd.
Reference: Nickel–cadmium battery – Wikipedia |
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Important:
- Never completely discharge the Li-ion battery ( below 2.5V under load ).
- Charge fully to 4.2V before first use.
- Never attach any metal moving part |magnet| to the top-positive or the bottom-negative battery contact.
- Never use force to install (insert) Li-ion battery.
- Do not use old and new battery cells together.
- Use only a high-quality battery charger. RoboticsBD
- Do not expose to heat.
- Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).
- Keep battery that is not in use in the plastic holder (or any insulating [plastic] container).
- Do not charge the battery over 4.22V (another reason to use a high-quality battery charger).
- Don’t charge unattended. RoboticsBD
- Do not store your li-ion batteries fully charged (for an extended period of time).
- Store in a cold and dry place at approximately 3.7V (storage charge).
- After the battery is discharged-don’t leave it discharged=>charge it as soon as possible
- The user should have enough knowledge on Li-Ion rechargeable batteries: in discharging, charging, assembly, handling, and proper Li-ion battery storage before use.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Shape: Cylindrical Battery
- Battery Type: Lithium-Ion Battery
- High performance and capacity
- Flat top to suit many devices fitting. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Nominal Voltage (V) | 3.7 |
| Dimensions (mm) LxWxH | 14 x 49 mm(Diameter x length) |
| Weight(g) | 20 |
| Rechargeable | Yes |
| Single Cell | 14500 |
| Maximum Discharge Current (A) | 1.6 |
| Maximum Charge Voltage (V) | 4.2 |
| Life Cycle | 500 |
| Battery Size | AA |
| Shipment Weight | 0.022 kg |
| Shipment Dimensions | 6 × 6 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 14500 Rechargeable Lithium Battery 1300mah 3.7v
