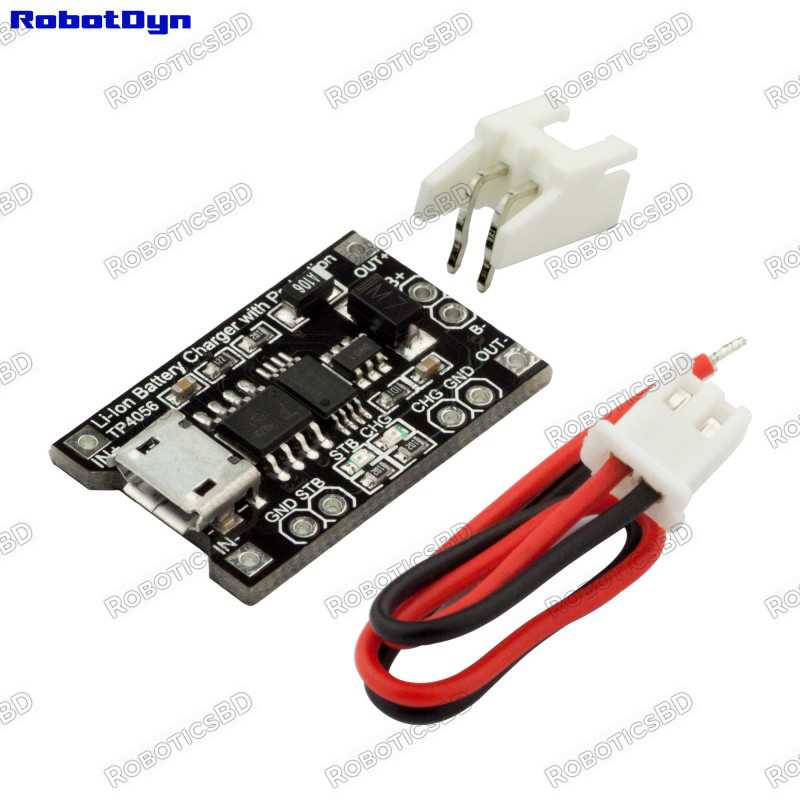

TP4056 Li-Ion Battery Charger with Protection

RBD-1334

  • Charging current: 1A (maximum)
  • Maximum charging voltage: 4.2V (1.5% accuracy)
  • Input voltage: 4.5V-5.5V
BDT 350.00
BDT 350.00 BDT 350.00 BDT 350.00 BDT 350.00
Tax included Tax excluded Tax included Tax excluded
BDT 350.00 Tax excluded
BDT 350.00 Tax included
BDT 0.00 Tax
BDT 350.00 Tax excluded
BDT 0.00 Tax
BDT 350.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Micro-USB Li-Ion Battery Charger is a complete constant current/constant-voltage linear charger for single cell lithium-ion/Lithium Polymer (LiIon/LiPo) batteries. The Charger base on TP4056. The ideally suited for portable applications. RoboticsBD

And the Li-Ion Battery Charger can work within USB and 5V wall adapter. Other features include current monitor, under voltage lockout, automatic recharge, and two status pin to indicate charge termination and the presence of an input voltage. Featured By RoboticsBD.

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection:

  1. Power is supplied to Micro-USB socket OR to inputs IN+/GND
  2. Li-ion battery can be connected to XH power socket (XH cable included) or outputs BAT+/BAT-. Charge indication has 4 status
  3. 4.5~5.5V / 4.2V / 1A / Micro USB / TP4056

Features:

  1. Charging current: 1A (maximum)
  2. Maximum charging voltage: 4.2V (1.5% accuracy)
  3. Input voltage: 4.5V-5.5V
  4. Two LED's indicating the status of charging: LED at CHG indicates charging, LED at STB indicates when the battery is charged.
  5. Micro-USB input or a separate input (+ and - via usb connector)
  6. Suitable for li-ion or li-po accu's (which can be charged up to 4.2V and can be discharged to 2.5V)
  7. Li-ion battery discharge protection:> 3A (too high current) or <2.5V (too low voltage)
  8. Li-ion battery connection: B+ and B -
  9. Output: OUT+ and OUT -
  10. Micro-USB input or a separate input (IN+ and IN -)
  11. Comes with cable of approximately 10cm and loose JST connector(not soldered)
  12. Separate STB and CHG output for statuses to send the microcontroller
  13. Dimensions: 28x17x4mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Material Fiber
Color Black
Dimensions: 28x17x4mm
Charging current: 1A (maximum)
Maximum charging voltage: 4.2V (1.5% accuracy)
Input voltage: 4.5V-5.5V
Shipment Weight 0.008 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x MicroUSB Li-Ion Battery Charger

1 x Cable.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1334

Specific References

EAN13
1334
