A 6-volt battery is ideal for powering the servomotor. This battery is useful when you need to power a few servos because you don't need to use a buck converter or UBEC. Most servos can tolerate voltage up to 6V. Often we use a 12V battery and step down the voltage to 5-6 volts. This generates a lot of heat and reduces efficiency. It is therefore the best battery solution on RoboticsBD to power your biped, hexapod and robotic arm.
A nickel metal hydride battery (NiMH or Ni–MH) is a type of rechargeable battery. The chemical reaction at the positive electrode is similar to that of the nickel–cadmium cell (NiCd), with both using nickel oxide hydroxide (NiOOH). However, the negative electrodes use a hydrogen-absorbing alloy instead of cadmium. NiMH batteries can have two to three times the capacity of NiCd batteries of the same size, with significantly higher energy density, although much less than lithium-ion batteries.
They are typically used as a substitute for similarly shaped non-rechargeable alkaline batteries, as they feature a slightly lower but generally compatible cell voltage, and are less prone to leaking and explosion. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- RC boat
- RC car
- Remote control electric toys
- Lighting
- Security facilities
- Electric tools
- Robotic Smart car
Features:
- Brand new and high quality.
- High temperature PVC wrapper.
- Rechargeable up to hundreds of thousands of times.
- Environment friendly: no toxic waste.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Voltage |
6V |
| Battery Type/ Plug Type |
Ni-MH/ JST 2P |
| Size (mm) |
50 x 42 x 28 |
| Capacity: |
2800mAh. |
| Life Time |
Rechargeable Up to 1000 times |
| Number of cells |
5x AA 1.2v |
| Shipment Weight |
0.117 kg |
| Shipment Dimensions |
8 × 5.5 × 3.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

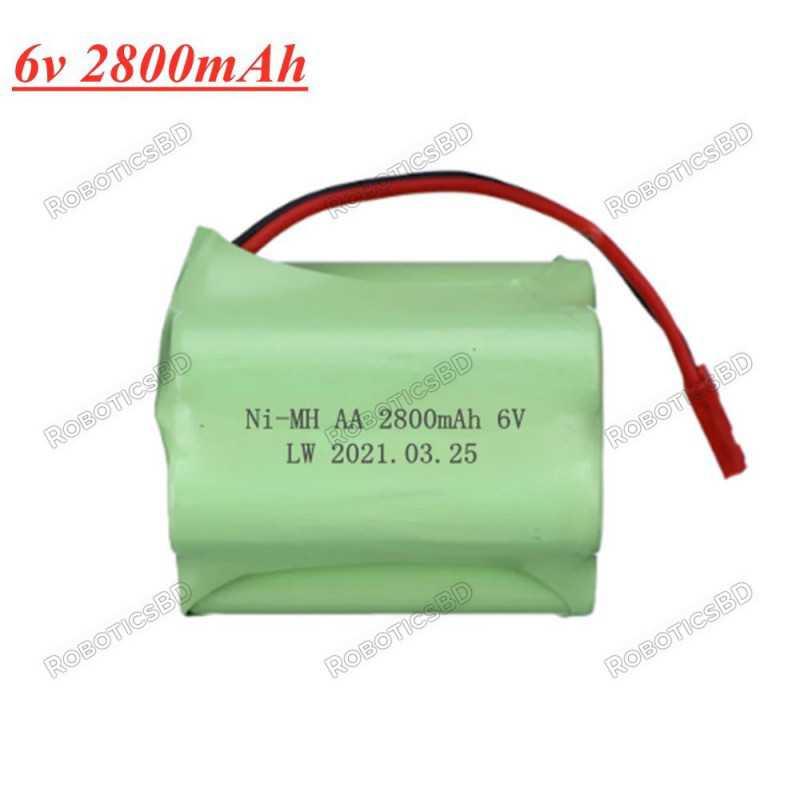

1 x 6v 2800mah AA NI-MH Battery.
