The iMAX-B6AC can charge and discharge NiMH, NiCd, Pb, LiPo, Li-ion, and LiFe batteries with individual cell balancing for up to 6 lithium cells. It features a built-in adapter that can be powered from 100–240 VAC, or it can alternatively be powered via an 11–18 VDC input. With its versatile charging capabilities and advanced features like input power monitoring, delta-peak sensitivity, cyclic charging and discharging, and more, the iMAX-B6AC is a great addition to the workbench of any RC, DIY, or robot enthusiast. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
This is not a genuine iMAX B6. It is a copy charger offered at a lower price.
Features:
- AC 100~240v or 12V DC input
- The cables come with a fitted fuse.
- Microprocessor controlled
- Li-ion, LiPo, and LiFe capable
- Input voltage monitoring. (Protects car batteries at the field)
- Battery break-in and cycling feature
- Data storage (Store up to 5 packs in memory)
- Internal resistance checker to see pack health
- Delta-peak sensitivity
- Individual cell balancing
- EU Plug to IEC C13 which is used in devices such as ac adapters, digital cameras, camcorders, monitors, printers, Direct TV and more!
Power Supply Cord Details:
- Total length: 1 meter.
- Voltage : 100 – 250 VAC
- Current : 2.5A Max.
- Plug Type:1. Female End Type: IEC(To Charger) 2. Male End Type: EU plug (To Power Distribution Board).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Input Voltage (V AC) |
100 ~ 240 |
| DC Input Voltage Range (V) |
11 ~ 18 |
| Charge Current Range (A) |
0.1 ~ 5 |
| Discharge Current Range (A) |
0.1 ~ 1.0 |
| Drain Current for Balancing Li-Po's (mA/Cell) |
300 |
| Li-ion/Po cell count |
1 ~ 6 |
| NiCd/NiMH cell count |
1 ~ 15 Cells |
| Pb battery voltage |
2 ~ 20 |
| Dimensions (mm) LxWxH |
133 x 87 x 33 |
| Weight (gm) |
624 |
| Power |
Discharge: 80w(new version)
Charge: 10W(new version) |
| Shipment Weight |
0.7 kg |
| Shipment Dimensions |
15 × 10 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

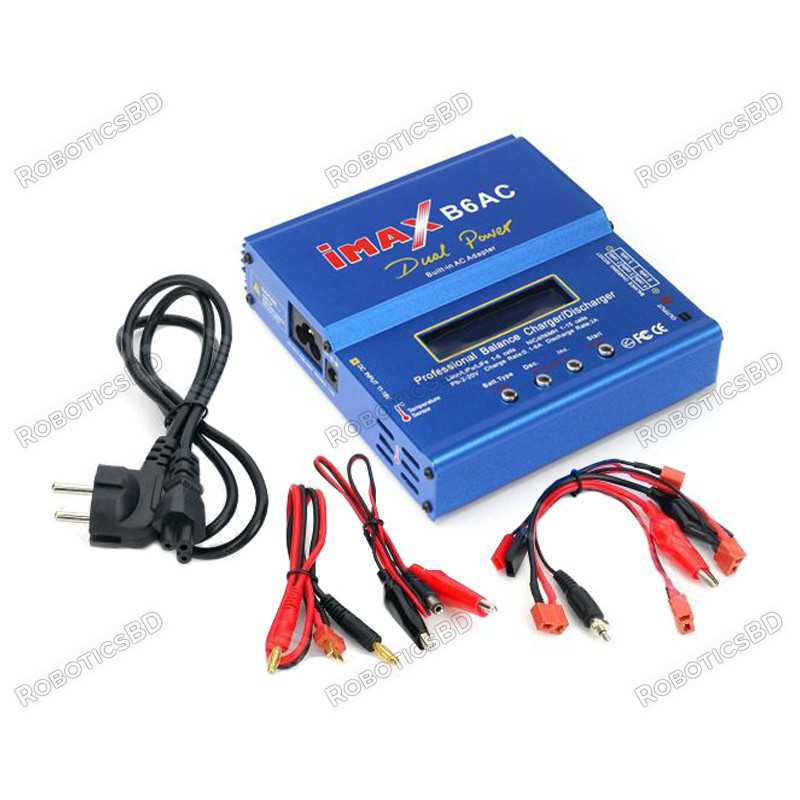

Package Includes :
1 x Imax B6 AC Dual Power Battery Charger.
1 x 100 – 250V Power Supply Cord.
1 x T plug with banana connector charging cable.
1 x DC cable with Alligator Clip charging connector.
1 x T plug with Alligator Clip connector charging cable.
1 x T plug with Futaba connector charging cable.
1 x T plug with JST connector charging cable.
1 x English manual.
