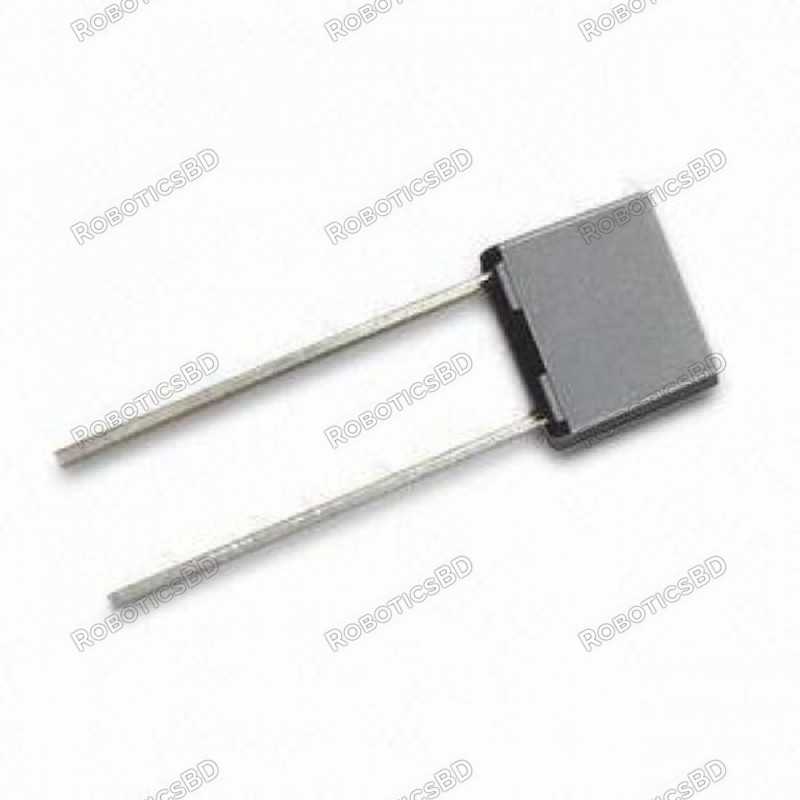

The notation "104K63" on a capacitor refers to its capacitance and voltage rating. In this case, the first two digits "10" represent the capacitance in picofarads (pF), while the third digit "4" represents the multiplier, which indicates the number of zeros to add after the first two digits. So "10" followed by "4" means 100000 pF.
The letter "K" indicates the tolerance of the capacitor, which is typically expressed as a percentage. In this case, "K" indicates a tolerance of ±10%.
Finally, "63" represents the rated voltage of the capacitor in volts (V). So the complete specification for a 104K63 capacitor is 100000 pF ±10% with a rated voltage of 63V. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
-
Capacitance: The 104K63 capacitor has a capacitance of 100000 pF, which is relatively low compared to many other capacitors. It is suitable for use in applications that require relatively low capacitance values.
-
Tolerance: The "K" in 104K63 indicates a tolerance of ±10%. This means that the actual capacitance of the capacitor can vary by up to 10% from the specified value.
-
Voltage rating: The "63" in 104K63 represents the rated voltage of the capacitor, which is 63 volts. This means that the capacitor can safely operate at a voltage up to 63 volts.
-
Dielectric material: The dielectric material used in the 104K63 capacitor is typically ceramic. Ceramic capacitors are known for their stability, high insulation resistance, and low cost.
-
Physical size: The physical size of a 104K63 capacitor can vary depending on the specific manufacturer and model. However, it is generally a relatively small capacitor, which makes it suitable for use in compact electronic devices.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
-
Oscillator circuits: The low capacitance value of the 104K63 capacitor makes it suitable for use in oscillator circuits that require a precise timing signal. The stable and reliable performance of ceramic capacitors, which are commonly used in oscillator circuits, makes the 104K63 capacitor a good choice for this application.
-
High-frequency filters: The low capacitance and high voltage rating of the 104K63 capacitor make it well-suited for use in high-frequency filter circuits. These circuits are used to remove unwanted noise and interference from electronic signals, and the stable performance and high insulation resistance of ceramic capacitors make them an ideal choice for this type of application.
-
Timing circuits: The stable and precise performance of the 104K63 capacitor, combined with its low capacitance value, make it useful in timing circuits where accuracy is important. For example, the capacitor might be used in a timer circuit that controls the duration of a pulse or the frequency of a clock signal.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Capacitance |
0.1uF |
| Operating Voltage (VDC) |
63V |
| Tolerance(%) |
(+/-5%) |
| Operating Temperature Range (℃) |
-30 to 60 degree Celsius |
| Mounting Type |
Through Hole |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 0.1uF 63V Capacitor 104K63
