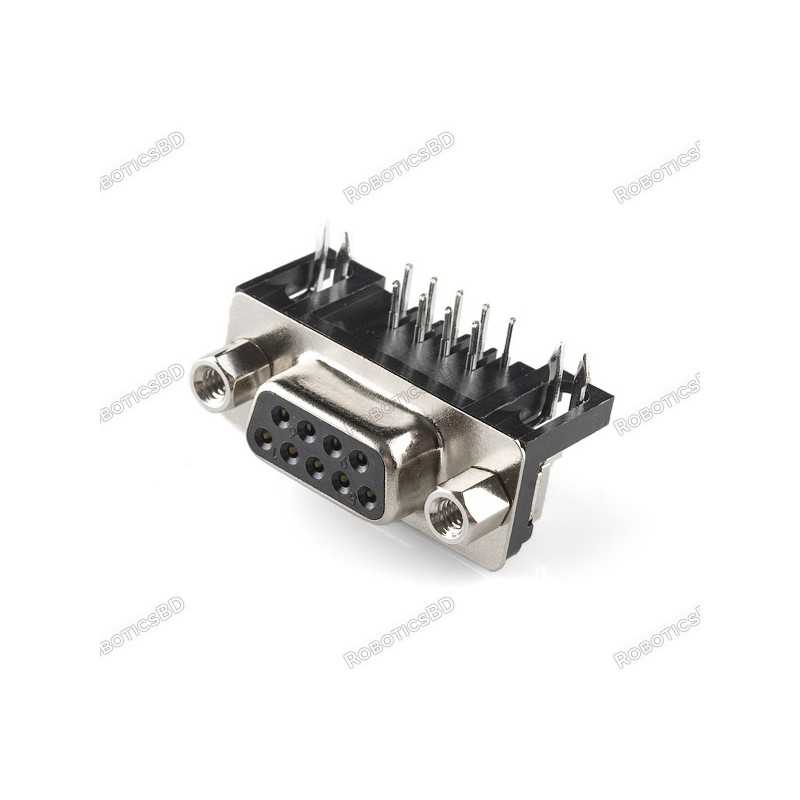

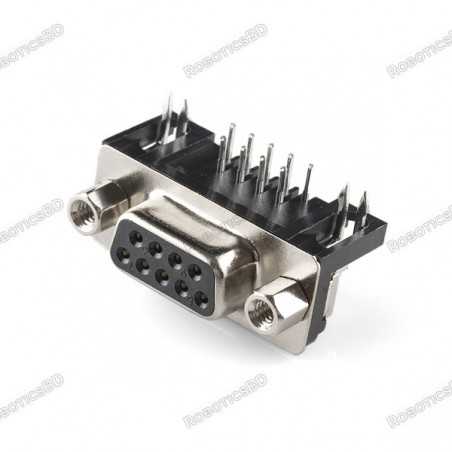

DB9 Pin Female Serial Connector - PCB Mount

RBD-2129

  • Nickel-plated terminals.
  • Gold plates pins.
  • Good quality.
  • Pins at a right angle for PCB mounting.
BDT 30.00
BDT 30.00 BDT 30.00 BDT 30.00 BDT 30.00
Tax included Tax excluded Tax included Tax excluded
BDT 30.00 Tax excluded
BDT 30.00 Tax included
BDT 0.00 Tax
BDT 30.00 Tax excluded
BDT 0.00 Tax
BDT 30.00 Tax included
Quantity
In-Stock
45 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

DB9 Female Right Angle Connector is the most common type of electrical connector. DB 9 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-9 pins are arranged in rows of two, as one five-pin row above a four-pin row. The terminals of this connector are bent at a right angle.

DB9 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB9connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used in DB9 cable assemblies for data connectivity.

Today, the DB9 has mostly been replaced by more modern interfaces such as USB, PS/2, Firewire, and others. However, there are still many legacy devices that use the DB9 interface for serial communication.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Nickel-plated terminals.
  2. Gold plated pins.
  3. Good quality.
  4. Pins at a right angle for PCB mounting.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Network ports.
  2. Computer video output.
  3. Game controller ports.
  4. Linear and rotary encoders in industries.

Robo

General Specification
Connector Type DB-9
Connector Male
Voltage Rating (V) 250V AC
Current Rating (A) 5
Insulation Resistance (MΩ) 1000
Contact Resistance 20mΩ
Operating Temperature Range (°C) -55 to 125
Material Metal and plastic
Length (mm) 30
Width (mm) 16
Height (mm) 18
Weight (gm) 6 (each)
Shipment Weight 0.02 kg
Shipment Dimensions 5 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x DB9 Female Right Angle Connector

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2129
45 Items

Specific References

EAN13
2129
