USB Female Type A DIP Connector PCB Mount Right Angle Robotics Bangladesh
  • USB Female Type A DIP Connector PCB Mount Right Angle Robotics Bangladesh

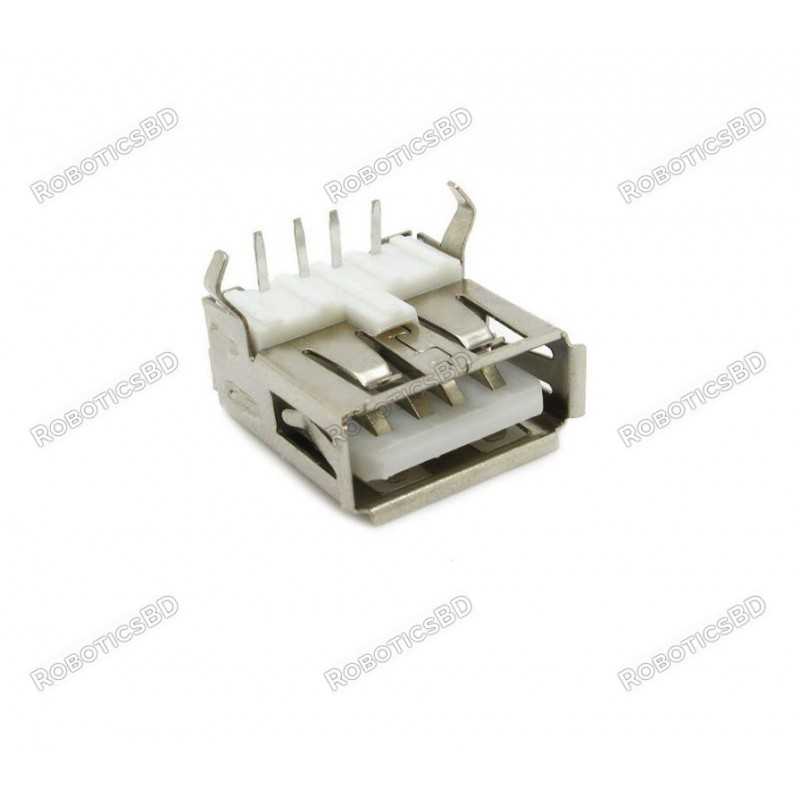

USB Female Type A DIP Connector PCB Mount Right Angle

RBD-2478

  • A-Type USB Female Connector PCB Mount Right Angle
  • Gender: Female
  • USB Type: USB A 2.0
  • Pins: 4
BDT 20.00
BDT 20.00 BDT 20.00 BDT 20.00 BDT 20.00
Tax included Tax excluded Tax included Tax excluded
BDT 20.00 Tax excluded
BDT 20.00 Tax included
BDT 0.00 Tax
BDT 20.00 Tax excluded
BDT 0.00 Tax
BDT 20.00 Tax included
Quantity
287 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

A-Type USB Female Connector PCB Mount Right Angle

Type A USB 2.0 Female Connector Straight Type PCB Surface Mount Connector Port. USB Type-A 4 Pin, Female Connector, Metal Shield, Solder Type. This USB A Type Female connector can be used very widely.USB 2.0, Type A Connector, A-Type USB Female Connector, B type USB, Connector, Micro USB, Micro USB 2.0 B type 4Pin Connector, Type A Connector, USB, USB 2.0, USB Connector, usb Male connector, USB Male Port, USB Port

Features/Specs:

  • Gender: Female
  • USB Type: USB A 2.0
  • Voltage Rating: 250 V AC Min
  • Current Rating: 1.5 A
  • Contact Resistance: 30mΩ max.
  • Insulation Resistance: 1000MΩ min. At 500 V DC
  • Dielectric Withstanding: 750 V AC (rms) for 1 min
  • Temperature Range: -40°C To + 85°C
  • Durability (life Test): 1500 Cycles
  • Insertion Force: 35 N max
  • Extraction Force: 10 N min
  • Color: Silver
  • Pins: 4
  • Package/Case: Through Hole Right Angle Female Connector
Product Details
RBD-2478
287 Items

Specific References

EAN13
2478
Comments (0)
Grade
No customer reviews for the moment.
