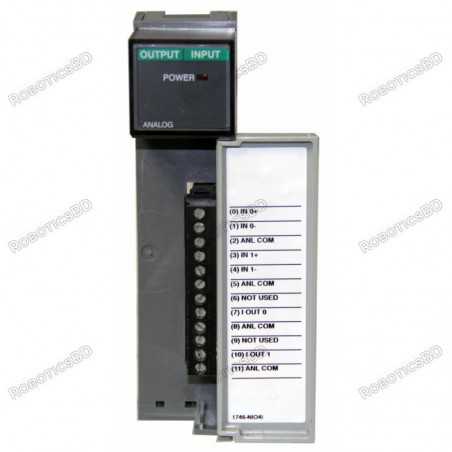

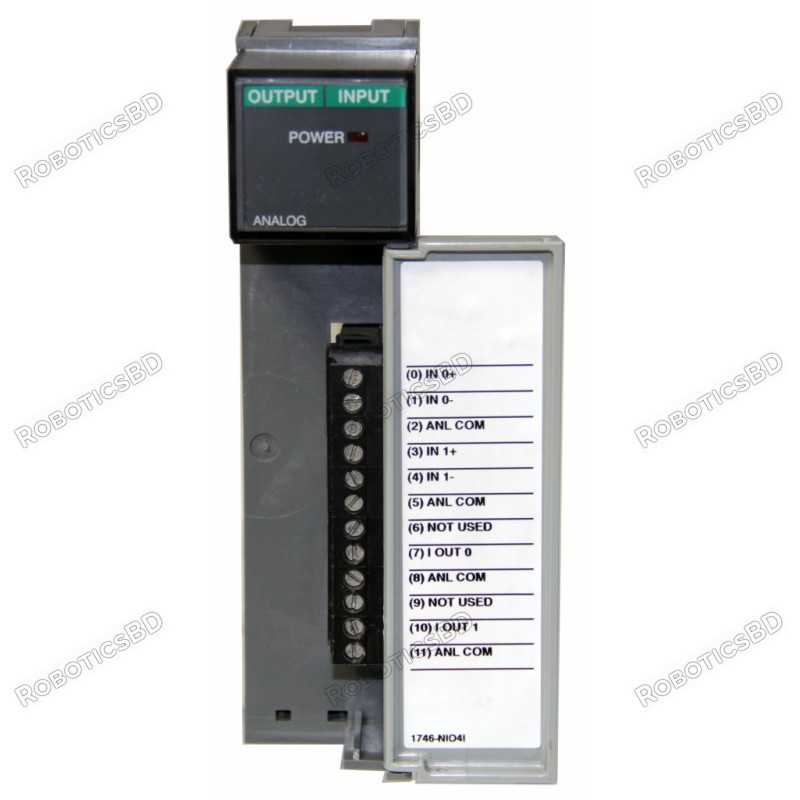

Allen Bradley 1746 NIO4I Robotics Bangladesh
  • Allen Bradley 1746 NIO4I Robotics Bangladesh
  • Allen Bradley 1746 NIO4I Robotics Bangladesh

Allen Bradley 1746 NIO4I

RBD-1774

  • ALLEN BRADLEY
  • Made in U.S.A
  • Body Material PLASTIC
  • IP Rating: 20
  • PLC Power: 5V
  • Module: 1746-NO4I
BDT 98,900.00
BDT 98,900.00 BDT 98,900.00 BDT 98,900.00 BDT 98,900.00
Tax included Tax excluded Tax included Tax excluded
BDT 98,900.00 Tax excluded
BDT 98,900.00 Tax included
BDT 0.00 Tax
BDT 98,900.00 Tax excluded
BDT 0.00 Tax
BDT 98,900.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Status: Brand New with Factory Sealed (Made in US)

The 1746-NIO4I by Allen Bradley is an analog combination module in the SLC 500 series. This module has four total analog channels; in a single slot module, it has two (2) inputs and two (2) outputs with a common voltage mode of -20 to 20 Volts. The common rejection module signal at 60 Hertz is 105 dB; its normal rejection mode signal at 60 Hertz is 55 dB. Its backplane current draw at 5 Volts is 55 mA, whereas with 24 Volts, it increases to 145 mA. This module must receive both 5 and 24 Volts of power from the backplane source of the SLC 500 setup; some similar modules may require an external power source, but the 1746-NIO4I will not work with one. RoboticsBD

Allen-Bradley 1746-NO4I 4-channel analog output modules provide 14-bit resolution and a 2.5 ms conversion rate. The 1746-NO4I Analog Output modules feature user-selectable current outputs, backplane isolation, removable terminal blocks, and diagnostic feedback. Required Removable Terminal Block: 1746-RT27.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Overview:

  1. Allen-Bradley / Rockwell Automation   (Made in U.S.A)
  2. Allen-Bradley 1746-NO4I SLC 500 Analog Current Output Module, 4-Ch, Non-isolated

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Manufacturer Allen-Bradley / Rockwell Automation
Series SLC 500
Part Number 1746-NIO4I
Product Type Combination I/O Module
Channels. 4 Non-isolated
Number of Outputs 4 current outputs (0…20 mA),
Individually isolated no
Backplane Current Load 55 mA @ 5V, 195 mA @ 24V
Step Response @ 95% 2.5 ms
Resolution (bits), Max 14
Non–linearity 0.05%
Conversion Method R-2R Ladder
Load Range 0 to 500 Ohms
Maximum Load Reactance 100 µH
Full Scale 21 mA
Overall Accuracy at +25° C (77° F) (max.) ±0.298% of full scale.
Shipment Weight 0.393 kg
Shipment Dimensions 22 × 16 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x Allen Bradley 1746 NIO4I
