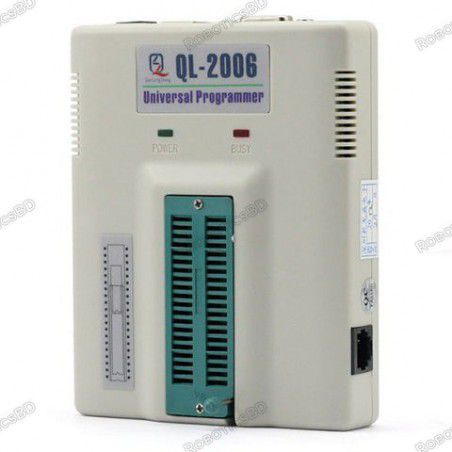

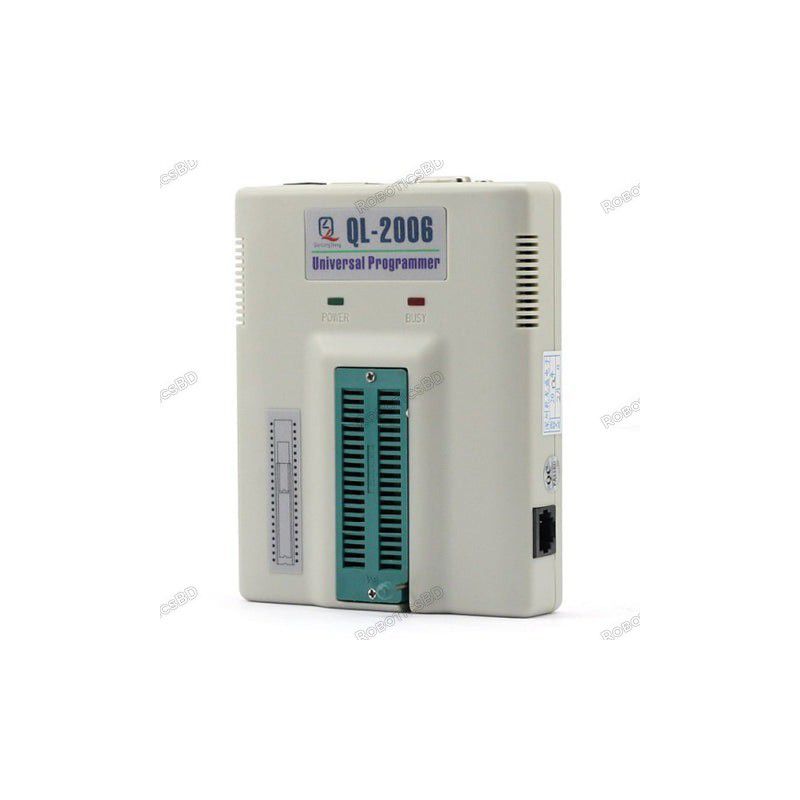

QL2006 USB & RS232 PIC ICSP Programmer Emulator for Microchip MCU Programming

QL-2006 programmer is the high-speed programmer designed specially for development and production programming of PIC single chip microcomputer (SCM) by QLS Electronic Technology Co., Ltd. The product is featured with small volume, low power consumption, high reliability as well as easy and convenient operation.
QL-2006 is applicable for almost all PIC10/12/16/18 series SCMs except 16C5X. It also supports memories in 24XX series and 93XX series.

Features:

•  High performance-price ratio, designed with the updated PIC programming algorithm, higher speed than other similar products, stable performance, support more devices. Support online upgrade of programmer hardware, easy and convenient upgrade. Two communication modes of USB and serial port, convenient for application on lap-top computer which doesn’t have serial port (convenient connection of one USB cable with computer). Automatic programming function and automatic programming process enable mass production for customer’s great convenience (programming available on chip installation without pressing any other key).
• Overall message indication, audio plus word will enable customer well informed about operating status.
• Through built-in ICSP interface (completely compatible with ICD interface of MICROCHIP), support ICSP (in-circuit serial programming) directly without any additional device. User may program after circuit board is welded. For FLASH SCM, online upgrade is available.
• Equipped with 40pin DIP socket, available for direct programming of 8pin-40pin DIP chip. Programming of other surface mount device (SMD) is available based on universal adaptor.
• Compatible with operating systems (OS) including Windows98, Windows2000/NT and Windows XP.
• Function of programming counting, can preset and count the programming number.
• Function of serial number auto-increment, available to set auto-increment area as program area or EEPROM data area, set auto-increment system, set auto-increment start address/end address and auto-increment step, set to ignore high byte in auto-increment to avoid effect to RETLW instruction in auto-increment part of program.
• Program supports load of *.HEX or *.BIN files, available to converse *.BIN files to *.HEX format.
• With programming data monitoring. Through check summing, available to find immediately if programming data is changed or not. Verification and formula are subject to definition of Microchip.
• Programmer hardware auto-search when start of software, no need for software setup before use, easier and more convenient operation.
• High programming success rate, enough programming depth. Programmable voltage, electrical parameter of programming and programming algorithm satisfy the technical specifications of manufacturers.


Hardware:
There is no special requirement for installation of this programmer.
Connect programmer to PC through serial port cable or USB cable and power up, then the programmer works. (This programmer supports direct USB power supply. If USB cable is connected, you may not connect external power. However, if current through USB interface is very low â€?less than 200MA and insufficient to drive programmer, connection to external power is required to enable the programmer to work regularly.)

Programmer device timer
Device	timer	Device	timer
PIC16F72	3S	PIC16F628A	8S
