Are you want to be an Electronic Geek in the future and want to build your own drone then this Flight controller is best for you. The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESC’s), which translates this desired speed into a signal that the motors can understand. This flight controller RoboticsBD
APM 2.8 Multicopter Flight Controller is an upgraded version of 2.5 and 2.6 with a Built-in Compass for FPV RC Drone. The sensors are exactly the same as the APM 2.6 flight controller. However, the module has the option to use the built-in compass an external compass via a jumper. This makes the APM 2.8 ideal for use with multi-copters and rovers. RoboticsBD
The APM 2.8 Multicopter Flight Controller is a complete open source autopilot system. This is the best-selling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary-wing. In addition, it turns multirotor vehicles (even cars and boats) into a fully autonomous vehicle. meanwhile, it is capable of performing programmed GPS missions with waypoints. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
APM Flight controller Using the built-in compass:
To use the built-in compass simply connect the jumper. The APM board will use the external compass, during the compass jumper is removed.
Arducopter APM 2.8 Flight Controller Features :
- Straight Needle
- Arduino Compatible
- Onboard 4 MegaByte Dataflash chip for automatic data logging. RoboticsBD
- Optional off-board GPS, a uBlox LEA-6H module with Compass.
- One of the first open-source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.
| General Specification |
| Model |
APM 2.8 |
| Power supply |
LP2985-3.3. |
| Port |
MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output). |
| Input Voltage (V) |
12~16 VDC |
| Sensors |
3-Axis Gyrometer
Accelerometer
High-performance Barometer |
| Processor |
ATMEGA2560 and ATMEGA32U-2 |
| Micro-SD Card Slot |
No |
| Dimensions (mm) LxWxH |
70 x 45 x 15 |
| Weight (gm) |
82 |
| Shipment Weight |
0.085 kg |
| Shipment Dimensions |
9 × 3 × 2 cm |
Ublox NEO 7M GPS with Compass Features :
- Locate performance
- These are Pre-configured, Flashed with the correct settings, and tested. To make them Plug and Play.
- Super Bright LED
- Backplane with Standard Mk style mounting holes 45mm X 45mm
- 38400 bps (Default) Changed to 115200bps!
- Output GGA, GSA, and RMC frames
- 1Hz (Default) Changed to 5Hz!
- Permanent Configuration Retention
- compass on board
- 6 pin connector for EZ connect to MEGA BLACK
- 4 pin connector for only GPS use
- 4 pin connector for compass only use
- Can use both 4 pins at once.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
Ublox NEO 7M |
| Receiver Type |
56 Channels
Galileo E1B/C1
GPS L1C/A
QZSS L1C/A
SBAS L1C/A |
| Receiver Frequency |
L1 [1575.42MHz] |
| Input Supply Voltage (VDC) |
3.5 ~ 5.5 |
| Main Chip |
U-BLOX NEO-7M |
| Sensitivity (dBm) |
-155
-160
Cold Start (without aiding): -147 dBm
Tracking & Navigation: -161 dBm |
| Position Accuracy (Meter) |
2
2.5 |
| Acceleration (g) |
<4 |
| Navigation Update Rate |
5Hz |
| Operating Temperature Range (°C) |
-24 to 84 |
| Tracking Sensitivity (dBm) |
-161 dBm |
| Co-Ordinate System |
WGS-84 |
| Capture Time |
0.1s Average |
| Avg Cold Start Time (s) |
38 |
| Warm Start Time (s) |
35 |
| Boot Time |
1S |
| Maximum Altitude (m) |
18000 |
| Maximum Speed |
515 m/s |
| Dimensions (mm) LxWxH |
60 x 11.5 (DxH) |
| Weight (gm) |
26 |
| Cable Length (cm) |
20 |
| Shipment Weight |
0.08 kg |
| Shipment Dimensions |
8 × 8 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

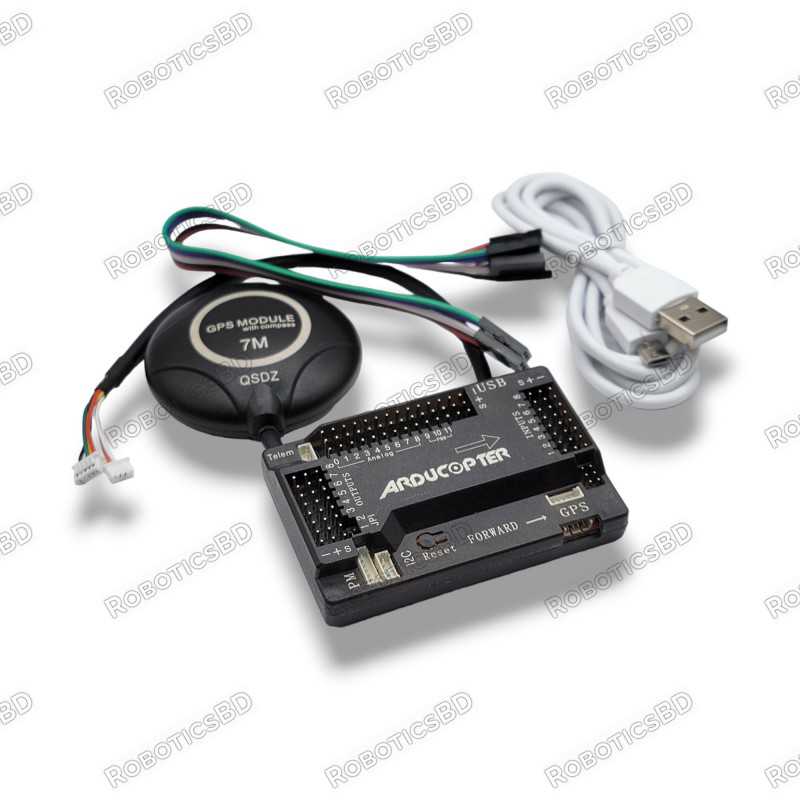

Package Includes :
1 x APM 2.8 Multicopter Flight Controller.
1 x Neo 7M GPS module.
