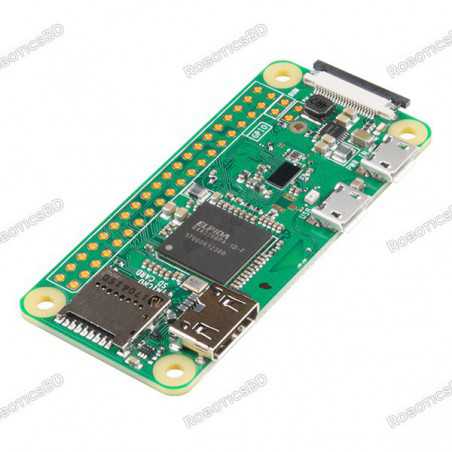

The Raspberry Pi Zero is an ultra-low-cost and ultra-small variant of the original Raspberry Pi. It’s tiny, measuring just 65mm x 30mm, and is perfectly designed for embedded applications, wearables, prototyping and any other Pi-based tinkering you can think of, on a micro scale! The Raspberry Pi Zero Wireless features onboard Wireless Internet & Bluetooth for all your connectivity needs! RoboticsBD
The Raspberry Pi Zero features a BCM2835 chipset, overclocked to 1Ghz with 512MB RAM, and the same 1080p video output, so there’s plenty of oomph in that little board. It also features the same 40 pin GPIO layout as the Raspberry Pi 2/B+/A+, which you’ll need to solder your own headers too. With its small form factor and reduction in connectors, the Raspberry Pi Zero only uses ~ 140mA at 5V!
Unlike it’s larger brothers and sisters, the Raspberry Pi Zero has an unpopulated GPIO, unpopulated composite (RCA) header and an unpopulated reset header. There’s also no DSI screen port, no ethernet, no analog audio and no full-sized USB ports. Instead, the Pi Zero features a micro-USB power port, a micro USB OTG host port (for peripherals e.g. Wi-Fi dongle), and a mini HDMI port for video. RoboticsBD
It’s perfect for everyone who doesn’t own a soldering iron or who wants the soldering legwork done for them. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Model | Zero Wireless |
Clock Speed | Overclocked to 1Ghz |
Dimensions (mm) LxWxH | 66 x 31 x 6 |
On Board Ports | Micro-USB for Power Micro-CSI Camera Port Micro-USB OTG Host for Data Mini-HDMI for Video |
Operating Power | 5V DC @ 140mA |
Processor | BCM2835 |
RAM | 512 MB |
Micro-SD Card Slot | Yes |
Weight (gm) | 12 |
Shipment Weight | 0.015 kg |
Shipment Dimensions | 10 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Raspberry Pi Zero W.
