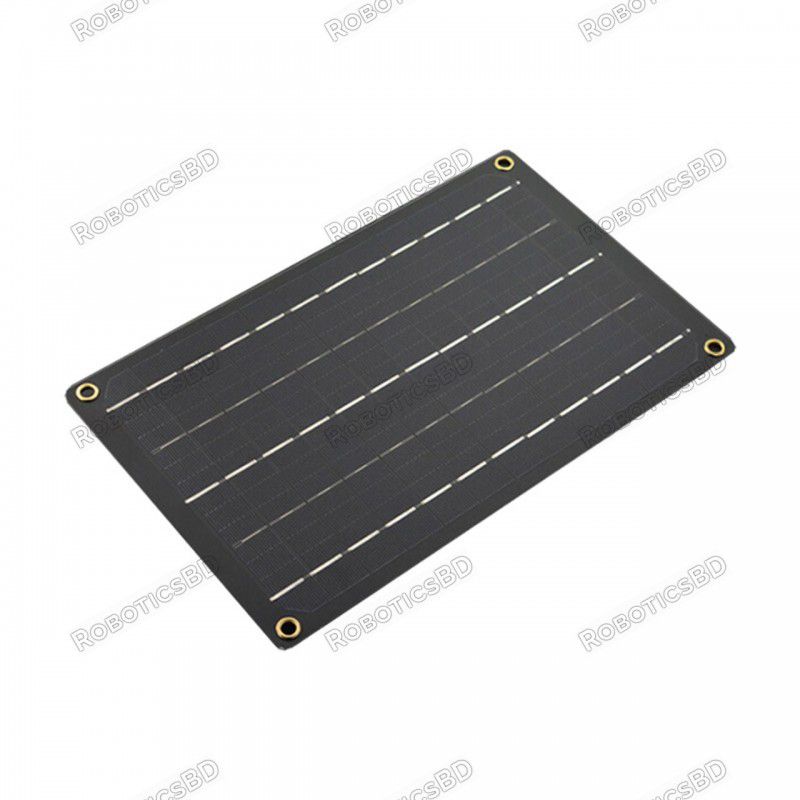

Monocrystalline Solar Panel (5V 1A)

RBD-2855
DFRobot

This is a high-performance, lightweight, portable monocrystalline silicon solar panel in a PET package, with an integrated voltage regulator output of 5V, with working indicators, USB type-A mother-port output, plug-and-play. It can supply plenty of power in various environments to prevent the system from shutting down, even in rainy days.

The energy of solar panel will be particularly efficient when paired with the DFRobot solar power management board. The panels are provided with open holes and copper clasps so that they can be attached directly to the backpack for easy portability and use. The ultra-thin, lightweight design weighs just 90g. It's much lighter than a solar panel in a traditional glass package.

BDT 2,320.00
BDT 2,320.00 BDT 2,320.00 BDT 2,320.00 BDT 2,320.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,320.00 Tax excluded
BDT 2,320.00 Tax included
BDT 0.00 Tax
BDT 2,320.00 Tax excluded
BDT 0.00 Tax
BDT 2,320.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

INTRODUCTION

This is a high-performance, lightweight, portable monocrystalline silicon solar panel in a PET package, with an integrated voltage regulator output of 5V, with working indicators, USB type-A mother-port output, plug-and-play. It can supply plenty of power in various environments to prevent the system from shutting down, even in rainy days.

The energy of solar panel will be particularly efficient when paired with the DFRobot solar power management board. The panels are provided with open holes and copper clasps so that they can be attached directly to the backpack for easy portability and use. The ultra-thin, lightweight design weighs just 90g. It's much lighter than a solar panel in a traditional glass package.

When you hang this panel, make sure the panel is facing the sun and there is no shade covering the solar panel.

SPECIFICATION

  • Operating Voltage: 5V (With voltage regulator module)
  • Open-circuit Voltage: 7.2V
  • Operating Current: 1A(MAX)
  • Short circuit current: 1.1A
  • Maximum power: 6W
  • Material: Monocrystalline Silicon Flexible Lamination
  • Wire length: 1m
  • Product size: 27.5cm*16cm*0.2cm / 10.82*6.3*0.078 in
  • Working temperature: -30℃~70℃


DOCUMENTS

SHIPPING LIST

  • Monocrystalline Solar Panel (5V 1A) x1
