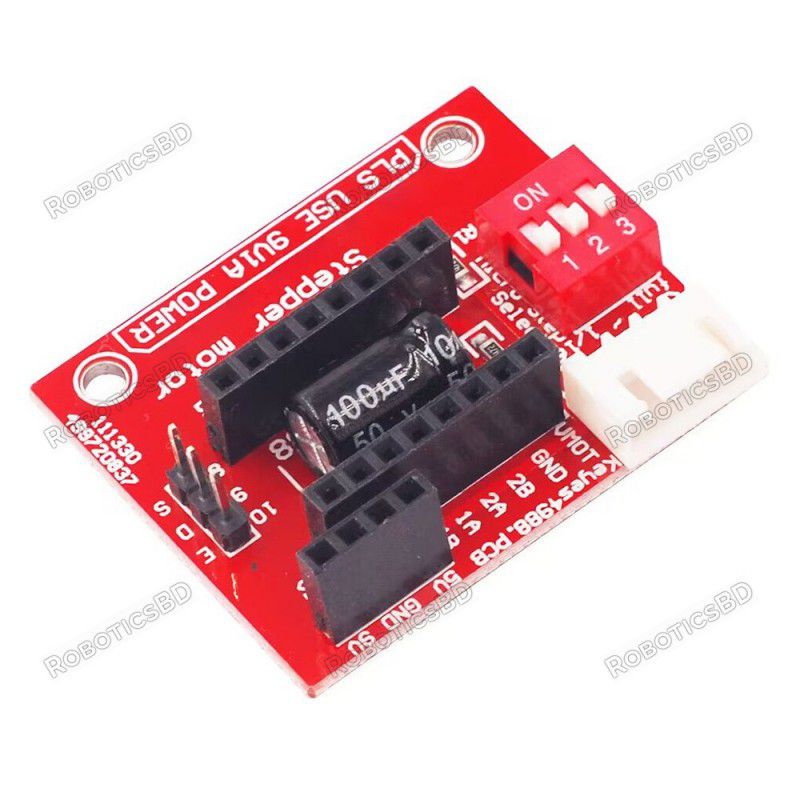

A4988 / DRV8825 Stepper Motor Driver Expansion Board

Enhance your 3D printer's performance with the DRV8825/A4988 Stable 42 Stepper Motor Driver Expansion Board. This expansion board offers advanced features and superior performance to meet your diverse needs in 3D printing and DIY projects.

Key Features:

1. On-Board DIP Switch: Easily adjust the drive segments using the on-board DIP switch, providing convenient operation for optimal performance.

2. Terminal Power Connector: Equipped with a terminal power connector, this expansion board allows easy connection of the drive power supply, ensuring hassle-free setup and operation.

3. Compatibility: Compatible with both 12V and 24V drive schemes, offering versatility and flexibility for various stepper motor configurations.

4. Superior Performance: With its highly integrated design and compact size, this expansion board delivers stable and professional performance, giving you peace of mind in your projects.

5. Applicability: Suitable for 42 stepper motor drives, 3D printers, and DIY projects, this expansion board is designed to meet a wide range of applications and requirements.

Specification:

• Logic Voltage: 5V
• Input Voltage: 12-24V
• Ports: Digital
• Interface: Direction, enable, speed
• Fixed: 3mm
• Pitch: 35.56 x 35.56mm (1400 x 1400mil)
• Applicable Module: For A4988 / DRV8825

Package Includes:

• 1 x Stepper Motor Driver Expansion Board

Note: Please ensure correct installation direction of the drive module to prevent module damage.
