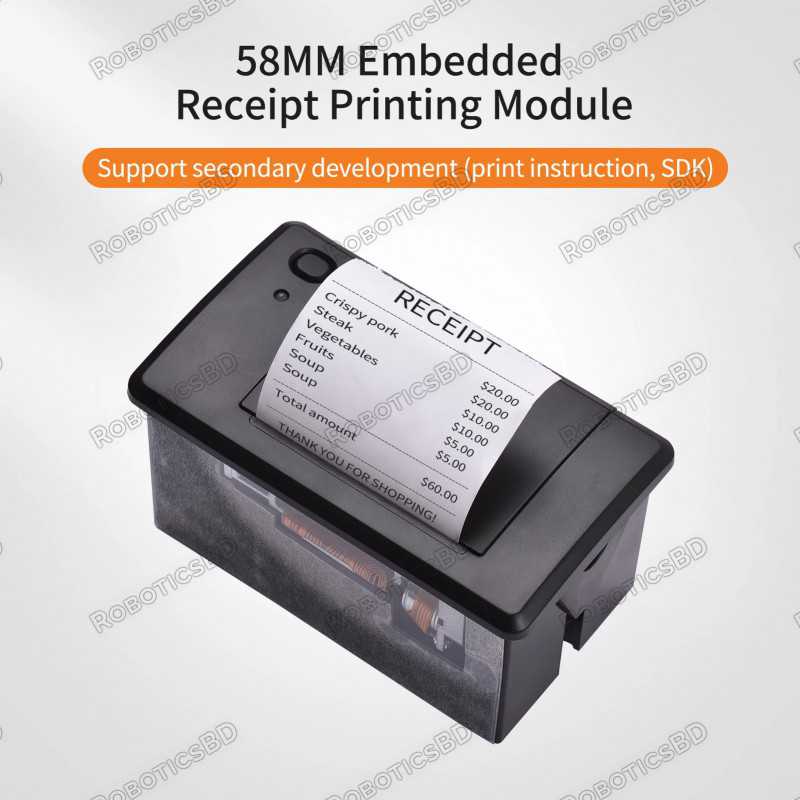

This embedded receipt thermal printer TTL is compact, simple, and cost-effective. With excellent connectivity, it is widely used in shopping malls, supermarkets, hospitals, restaurants, banks, gas stations, road and bridge toll station. Easy to set up and operate, it will work perfectly with your devices, make printing more convenient than before. Featured By RoboticsBD.
Note: Customers who purchase embedded printers, must have a certain basic knowledge of electronic programming. The printer is only provided product descriptions and tool, no technical consulting support, please be careful for beginners. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 58mm embedded thermal printer, 60mm/s print speed, clear printing and high efficiency, it will work perfectly with your device.
- Direct thermal printing, eliminating the need of ink cartridge or toner, environmental friendly and money saving.
- Multiple connection mode, USB, RS232 and TTL serial port, support ESC/POS command.
- Provided Android SDK, compatible with Windows, Linux, Android system.
- Adopt industrial printing head, stable performance, good printing effect, wear resistant and has long service life of 50km.
Applications:
- Widely used in supermarket,
- Shopping mall,
- Restaurant,
- Bank,
- Self-service terminal
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Color |
Black |
| Material |
ABS |
| Print Mode |
Thermal Line Printing |
| Paper Width |
58mm |
| Print Width |
48mm |
| Roll Diameter |
Max. 40mm |
| Print Speed |
60mm/s |
| Resolution |
203dpi |
| Print Head Lifespan |
50KM (Approx.) |
| Print Command |
ESC/POS |
| Operating System |
Linux, Windows XP/7/8/10, Android |
| Work Voltage |
DC 5-9V |
| Interface |
USB/RS232/TTL |
| Item Size |
11.1 x 6.5 x 6cm/ 4.4 x 2.6 x 2.4in |
| Item Weight |
177g/ 6.2oz |
| Shipment Weight |
0.346 kg |
| Shipment Dimensions |
18.3 x 11 x 8.3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x EM5820 Embedded Thermal Receipt Printer 58MM Low Noise w/ USB/RS232/TTL Serial Port Support ESC/POS.
