Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognize and buy an original TowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name. RoboticsBD

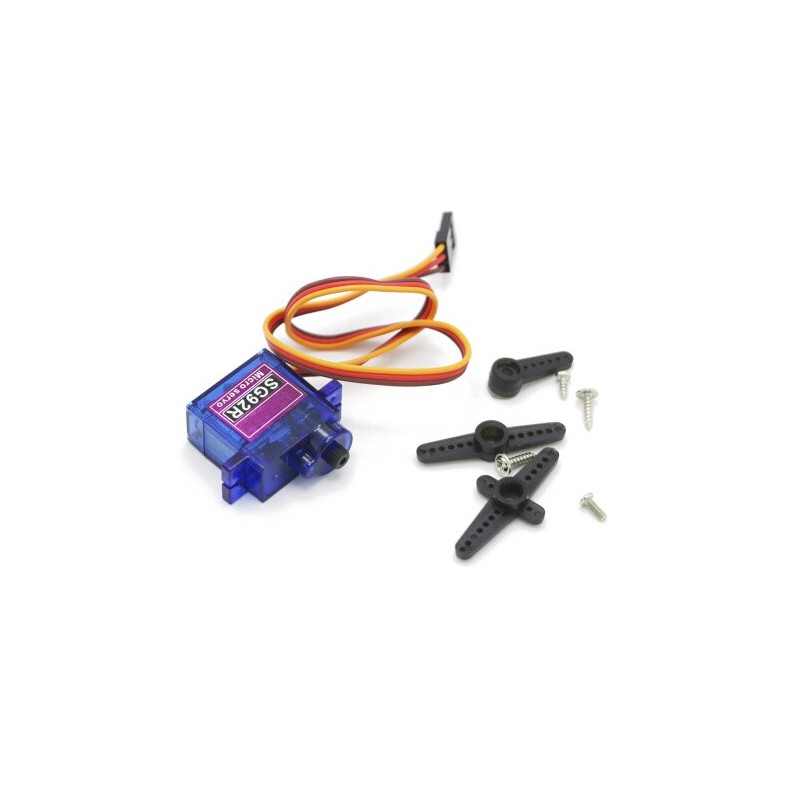

We have imported this copy of original TowerPro SG92R Mini Servo from our trusted supplier. Though these are the copy of the original Mini TowerPro servo’s, they are compatible with all the applications that use the genuine Tower Pro SG92R because of their same size, comparable quality, and optimized performance.
It equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear servo motor adds on unnecessary weight, so we suggest using this lightweight plastic gear servo motors.
The TowerPro SG92R Mini Servo is 180° rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists. RoboticsBD
They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
This servo motor requires a higher current and cannot be powered directly from the Arduino Uno or Mega. You will need to provide an additional 5V, 3A power supply in conjunction with the Arduino.
Please do not manually rotate the motor or gear shaft by hand, as this could cause permanent damage to the motor. |
Wire Description
RED – Positive
Brown – Negative
Orange – Signal
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model | SG92R |
| Weight(gm) | 9 |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 33515 |
| Stall Torque @ 4.8V (Kg-Cm) | 2.5 |
| Operating Temperature (°C) | -30 to 60 |
| Servo plug | 3-wire JR |
| Rotational Degree | 180º |
| Cable Length (cm) | 25 |
| Length (mm) | 22.8 |
| Width (mm) | 12.6 |
| Height (mm) | 34.5 |
| Shipment Weight | 0.014 kg |
| Shipment Dimensions | 6 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x SG92R Servo Motor with Cable.
