The TD-8135MG Digital High Torque Servo Motor is a premium-grade servo designed for precision, strength, and long-lasting performance. Featuring an impressive stall torque of up to 35.2kg.cm at 8.4V, it’s ideal for demanding applications in RC cars, robotics, automation systems, and heavy-duty mechanical projects. The servo incorporates high-quality metal gears, a CNC aluminum middle shell, and a waterproof design, ensuring stability and resilience even in harsh environments. With its 180º rotation range, fast response time, and PWM signal compatibility, the TD-8135MG provides accurate, smooth, and efficient motion control—making it an excellent choice for professional robotics and hobbyist applications alike. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High Torque Output: Delivers up to 35.2kg.cm torque at 8.4V for high-load operations.
Fast Response: Achieves quick 0.22s/60° rotation speed at full voltage.
Precision Control: Offers 180º ±3º rotational accuracy with smooth PWM response.

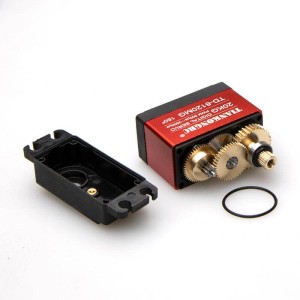

Durable Metal Gears: 5 all-metal gears ensure strength and long service life.
Robust Build: CNC aluminum middle shell provides superior heat dissipation and rigidity.
Waterproof Design: Splash-resistant housing for outdoor and off-road environments.
Wide Voltage Range: Operates from 4.8V to 8.4V, suitable for various platforms.
Easy Integration: Standard 3-wire interface (power, ground, signal) supports Arduino, RC, and more.
Reliable Performance: Low noise, high efficiency, and consistent torque output.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
RC Models: Perfect for steering, throttle, and suspension systems in RC cars, boats, and aircraft.
Robotics: Ideal for robotic joints, grippers, or arm movement requiring precision and torque.
DIY Automation: Works with Arduino and Raspberry Pi projects for servo-controlled mechanisms.
Heavy-Duty Machinery: Suitable for mechanical rotation or lifting tasks.
Educational and Research Projects: Great for learning servo control and motion automation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | TD-8135MG |
| Type | Digital High Torque Servo |
| Torque | 32.7kg.cm (4.8V), 35.2kg.cm (8.4V) |
| Operating Voltage | 4.8V – 8.4V |
| No-Load Speed | 0.32 sec/60° (4.8V), 0.22 sec/60° (8.4V) |
| Running Current | 40mA (4.8V), 200mA (8.4V) |
| Stall Current | 2800mA ±10% (4.8V), 3800mA ±10% (8.4V) |
| Rotation Angle | 180º ±3º |
| Gear Material | 5 Metal Gears |
| Casing Material | CNC Aluminum Shell |
| Control Signal | PWM (500–2500µsec) |
| Connector Wire Length | 320mm ±5mm |
| Waterproof | Yes |
| Dimensions | 40 × 20.5 × 40.5 mm |
| Weight | 56g ±5% |
| Shipment Weight | 0.0863 kg |
| Shipment Dimensions | 6 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to Use (180º Version):
Connect to Power Source:
- Use a 4.8V-7.2V power supply for operation.
Wiring:
- Connect the servo wires to your controller:
- Red: Power (+)
- Black: Ground (-)
- Yellow/White: Signal (PWM)
Programming:
- Configure your microcontroller to send PWM signals within the range of 500–2500µsec to control the servo's position.
Installation:
- Mount the servo securely in your RC car, robot, or project.
Operation:
- Test the servo's range and responsiveness, adjusting as necessary for your specific application.
Package Includes:

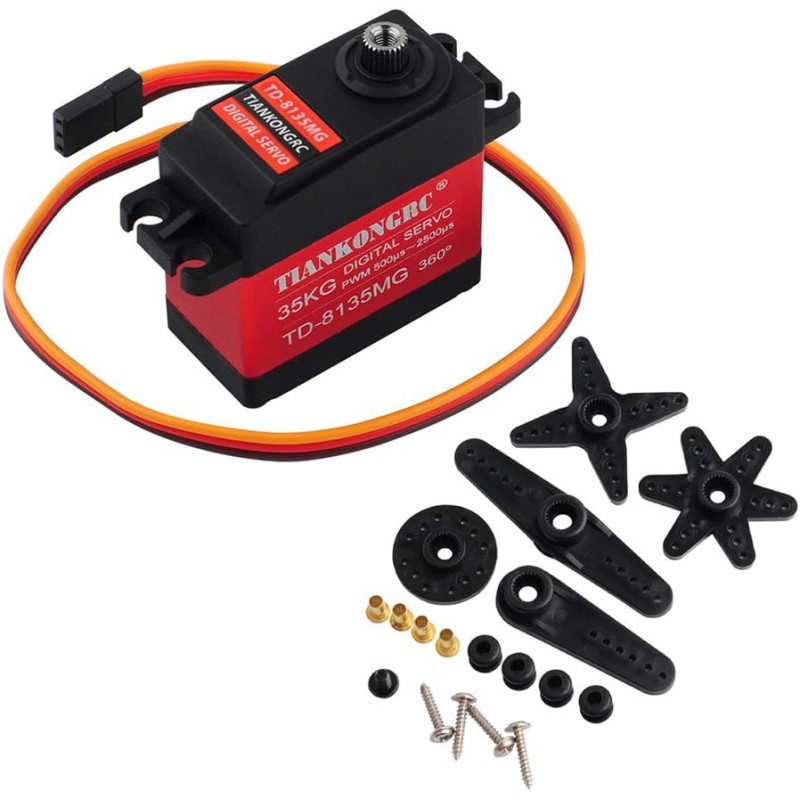

1 x TD-8135MG Digital High Torque Servo Motor Metal Gear 35kg 180º
