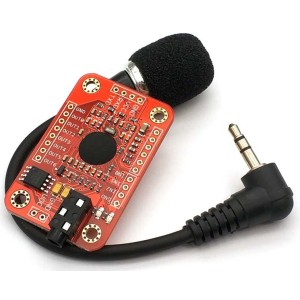

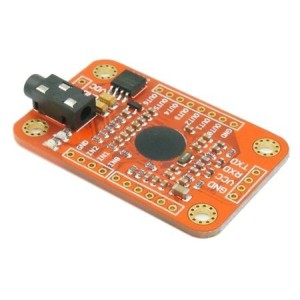

Voice Recognition Module Kit V3.1 compatible with Arduino is a compact and easy-control speaking recognition board. RoboticsBD
Voice Recognition Module Kit V3.1 product is a speaker-dependent voice recognition module. It supports up to 80 voice commands in all. Max 7 voice commands could work at the same time. Any sound could be trained as the command. Users need to train the module first before let it recognizing any voice command.
This board has 2 controlling ways: Serial Port (full function), General Input Pins (part of a function). General Output Pins on the board could generate several kinds of waves while the corresponding voice command was recognized. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
What are the updated features?
We have Voice Recognition module V2 and it supports 15 commands in all and only 5 commands at the same time. On V2, voice commands are separated into 3 groups while you training it. And only one group (5 commands) could be imported into Recognizer. It means only 5 voice commands are effective at the same time.
On V3.1, voice commands are stored in one large group like a library. Any 7 voice commands in the library could be imported into recognizer. It means 7 commands are effective at the same time. RoboticsBD
Features :
- Support a maximum of 80 voice commands, with each voice 1500ms (one or two words speaking).
- Maximum 7 voice commands effectively at the same time.
- Arduino library is supplied.
- User-control General Pin Output.
- Analog Interface: 3.5 mm mono-channel microphone connector + microphone pin interface. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Input Supply Voltage (VDC) | 4.5 ~ 5.5 |
| Current | <40 mA |
| Digital Interface | 5V TTL level |
| Recognition Accuracy | 99% (under ideal environment) |
| Easy Control | UART/GPIO |
| Shipment Weight | 0.06 kg |
| Shipment Dimensions | 6 × 8 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :

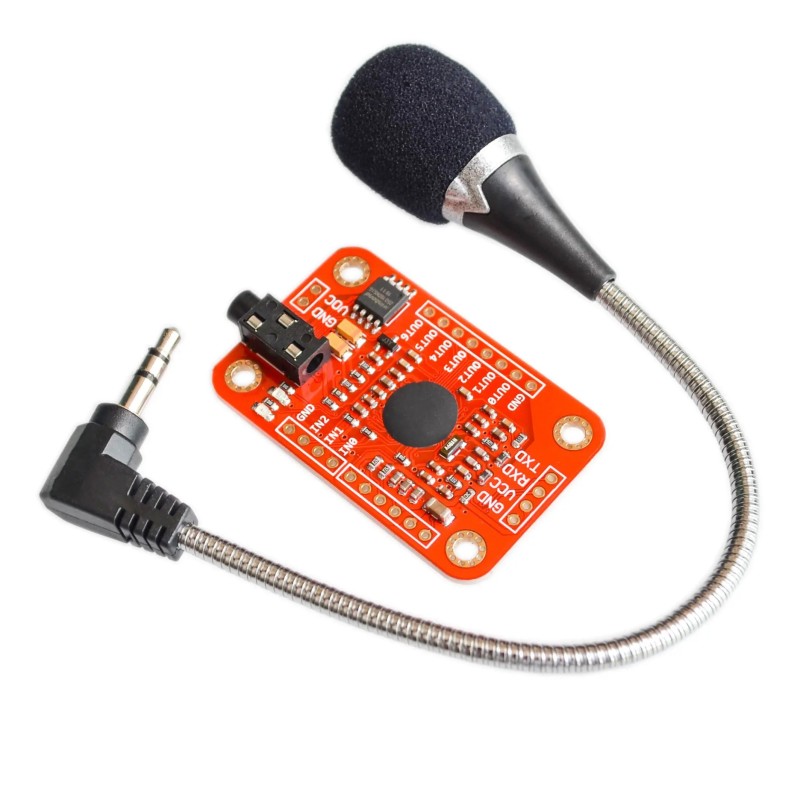

1 x Voice Recognition Module V3.1.
1 x Microphone.
