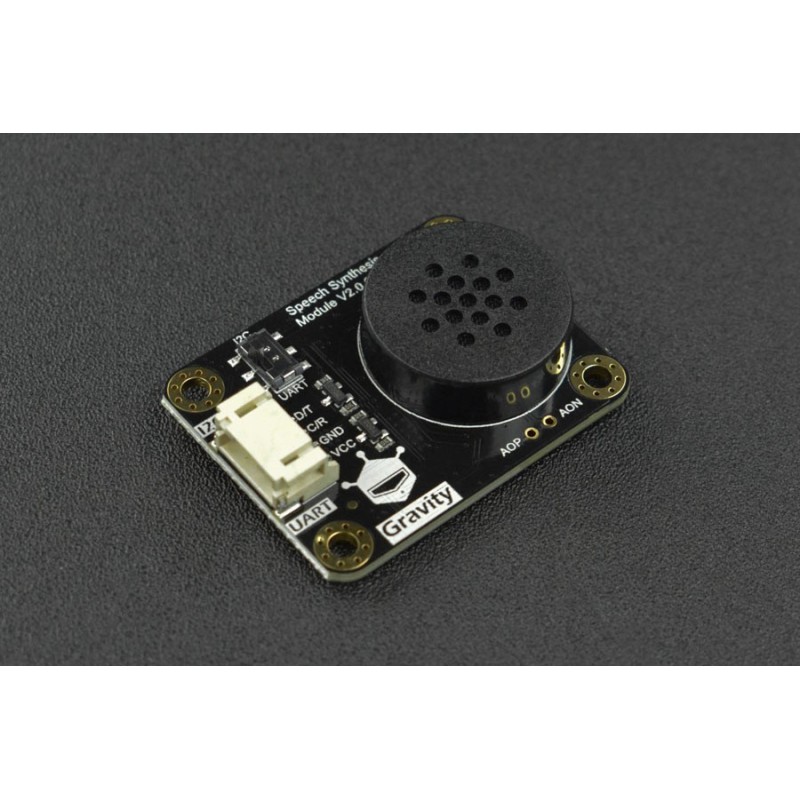

Would you like to add voice to your projects? Connect up this Speech Synthesis module, add a few couples of lines of code, then here goes, your project starts speaking. Both Chinese and English are "so easy" for this speech synthesis module. It also can broadcast the current time and environment data. Combining with a speech recognition module, you can easily have conversations with your projects! The module uses I2C and UART two communication modes, gravity interface, and is compatible with most main controllers on the market. Besides, the module already comes with a speaker, so you don't need to buy one. Featured By RoboticsBD.
Note: the addresses of the speech synthesis module and micro: bit motor driver board are the same, so they cannot be used together.
V2.0 Function Updates:
1. More natural pronunciation
2. Fewer pronunciation errors for polyphone characters
3. No option of speakers
Product Images are shown for illustrative purposes only and may differ from the actual product.


| General Specification | |
| Power Supply | 3.3V~5V |
| Operating Current | <160mA |
| I2C Address | 0x40 |
| Operating Temperature Range | -40℃~85℃ |
| Dimension | 42*32mm/1.65*1.26” |
| Shipment Weight | 0.022 kg |
| Shipment Dimensions | 6 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Gravity: Speech Synthesis module V2.0 (Support English and Chinese)
1 x Gravity-4P I2C/UART Sensor Connector
