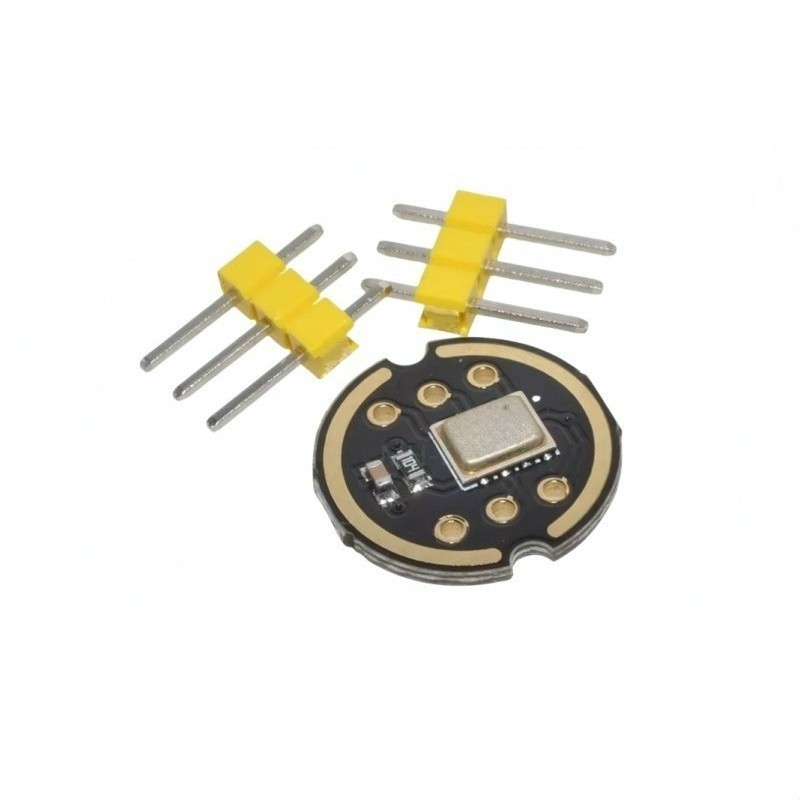

INMP441 Compatible Omnidirectional Microphone Module

RBD-1753

  • Digital I2S interface with high precision 24-bit data
  • High signal to noise ratio is 61 dBA
  • High sensitivity – 26 dBFS
  • Stable frequency response from 60 Hz to 15 kHz
  • Low power consumption: low current consumption 1.4 mA
  • High PSR: -75 dBFS

    Note: This chip is Compatible clone.
BDT 399BDT 399 BDT 399 BDT 399 BDT 399
BDT 259 Save BDT 140
BDT 259 BDT 259 BDT 259 BDT 259
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 399 BDT 259 Tax excluded
BDT 399 BDT 259 Tax included
BDT 0 BDT 0 Tax
BDT 399 BDT 259 Tax excluded
BDT 0 BDT 0 Tax
BDT 399 BDT 259 Tax included
Quantity
In-Stock
6 Items

180 people have purchased this item
17 people recently added this item to the cart
Only 6 items left in stock
Description

INMP441 Compatible MEMS High Precision Omnidirectional Microphone Module I2S

The INMP441 Compatible is a high-performance, low-power, digital output, omnidirectional MEMS microphone with a bottom port. The complete INMP441 Compatible solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management, and industry-standard 24-bit I2S interface.

The I2S interface allows the INMP441 Compatible to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near-field applications. The INMP441 Compatible has a flat wideband frequency response that results in a high definition of natural sound. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Interface definition
  1. SCK: Serial data clock for I2S interface
  2. WS: Serial data word selection for I2S interface
  3. L/R: Left/Right channel selection.
  4. When set to low, the microphone outputs a signal on the left channel of the I2S frame.
  5. When set to high level, the microphone outputs signals on the right channel
  6. SD: Serial data output of the I2S interface.
  7. VCC: Input power, 1.8V to 3.3V.
  8. GND: power ground

NMP441 connection with ESP32
  1. SCK -GPIO14
  2. SD – GPIO32
  3. WS – GPIO15
  4. L/R – GND
  5. GND – GND
  6. VDD – VDD3.3

Features:

  1. Digital I2S interface with high precision 24-bit data
  2. High signal to noise ratio is 61 dBA
  3. High sensitivity – 26 dBFS
  4. Stable frequency response from 60 Hz to 15 kHz
  5. Low power consumption: low current consumption 1.4 mA
  6. High PSR: -75 dBFS

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
DirectionalityOmni
Sensitivity1 kHz, 94 dB SPL (−29min −26typ −23max) dBFS
Supply Voltage (VDD)1.62 - 3.63 V
Supply Current (IS) VDD = 1.8 V

Normal Mode 1.4 1.6 mA

Standby 0.8 mA

Power Down 2 mA

Supply Current (IS) VDD = 3.3 V

Normal Mode 2.2 2.5 mA

Standby 0.8 mA

Power Down 4.5 µA

Shipment Weight0.005 kg
Shipment Dimensions3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Included:

1 x INMP441 Compatible MEMS High Precision Omnidirectional Microphone Module I2S
