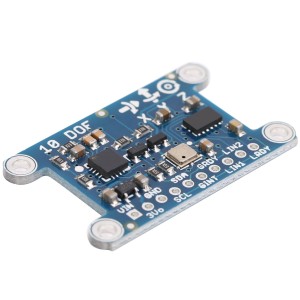

    10 DOF IMU Sensor Module LSM303 + L3GD20 + BMP180 I2C 3.3V–5V

    RBD-4073

    This 10-DOF IMU module integrates an accelerometer, gyroscope, magnetometer, and barometric pressure sensor on a single breakout board. It is designed for motion sensing, orientation tracking, and environmental measurement in robotics, embedded systems, and educational projects.

    BDT 1,350
    BDT 1,350 BDT 1,350 BDT 1,350 BDT 1,350
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,350 Tax excluded
    BDT 1,350 Tax included
    BDT 0 Tax
    BDT 1,350 Tax excluded
    BDT 0 Tax
    BDT 1,350 Tax included
    Quantity
    10 Items

    10 items in stock
    Description

    Short Description

    This 10-DOF IMU module integrates an accelerometer, gyroscope, magnetometer, and barometric pressure sensor on a single breakout board. It is designed for motion sensing, orientation tracking, and environmental measurement in robotics, embedded systems, and educational projects.

    Key Features

    • 10 degrees of freedom sensing

    • 3-axis accelerometer, gyroscope, and magnetometer

    • Barometric pressure and temperature sensing

    • I2C communication interface

    • Onboard voltage regulation

    • Compatible with 3.3V and 5V logic levels

    • Adafruit library compatible

    Technical Specifications

    • Sensor Combination:

      • Accelerometer and Magnetometer: LSM303DLHC

      • Gyroscope: L3GD20 / L3GD20H

      • Barometric Pressure Sensor: BMP180

    • Communication Interface: I2C

    • Operating Voltage: 3V to 5V (internal LDO regulator)

    • Gyroscope Range: ±250 / ±500 / ±1000 / ±2000 dps

    • Accelerometer Range: ±2g / ±4g / ±8g / ±16g

    • Magnetic Field Range: ±4800 µT

    • Air Pressure Range: 300 to 1100 hPa

    • Temperature Measurement: Supported via BMP180

    • Pin Spacing: 2.54 mm (0.1 inch)

    • Module Size: Approximately 33 x 23 mm

    • PCB Material: FR4 PCB

    • Country of Origin: Made in China

    Applications / Use Cases

    • Robotics motion and orientation sensing

    • Inertial navigation systems

    • Drone and UAV stabilization

    • Altitude and pressure measurement

    • Embedded systems development

    • Educational and research projects

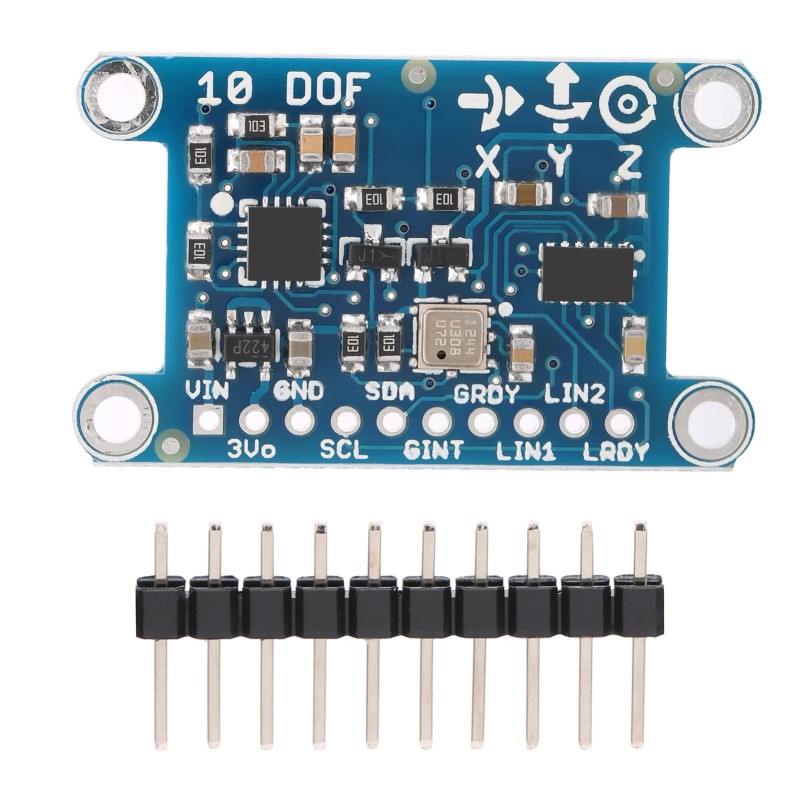

    Package Includes

    • 1 x 10-DOF IMU sensor module

    • 1 x Pin header

    Notes / Warnings

    • Requires an I2C-compatible microcontroller

    • Multiple sensors share the same I2C bus

    • Ensure correct wiring and supply voltage before powering the module
