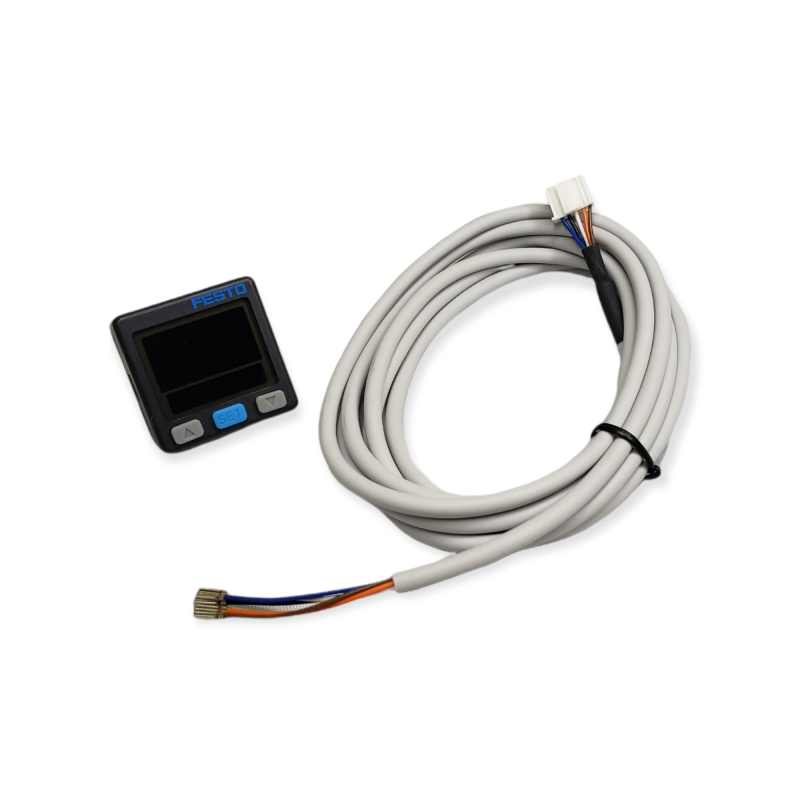

Pressure Sensors with Display SPABT-P10-R18-2N-K2-B-SA

Reference RBD-1848

Compact Design
Country Specific pressure
Multiple Displayable Unit
Multi-colored, two-part display
Alphanumeric display

Description
Product Details

Description

The pressure sensor SPAB can be used in many industries thanks to its wide range of connection and configuration options and its compact size. Switching point settings are emphasized via switching status indication and switching of the display value colour. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Pressure/vacuum sensing
Light assembly
Wherever there is a need for space-saving pressure measurement with visualization and limited robustness
Easy identification of the system status by means of clear, color-based switching status detection

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Pressure measuring range –1 … +1 or 0 … 10 bar
Relative pressure measurement
Pressure supply port G1/8, R1/8, NPT1/8-27 or M5 female thread
Electrical connection cable, plug M8x1 or plug, square design
Switching output PNP, NPN
Analogue output 1 … 5 V or 4 … 20 mA, switchable
Two-part, multi-coloured display
Copy function (settings can be transferred from one device to another)
Simple commissioning thanks to intuitive operation
Compact design 30x30 mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Type	SPAB/ Piezo resistive pressure sensor with multi-colored display
Pressure measuring range [bar]	P10/ (0 … 10)
Pressure input	R/ Relative pressure
Pneumatic connection	R18/ Male thread R1/8 and female thread M5
Electrical output	2N/ 2 switching outputs NPN
Cable/ Connector	K2: Plug Design (with 2m lead wire)
Shipment Weight	0.126 kg
Shipment Dimensions	15 × 7 × 7 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Datasheet

Package Includes:

1 x Pressure Sensors with Display SPABT-P10-R18-2N-K2-B-SA
