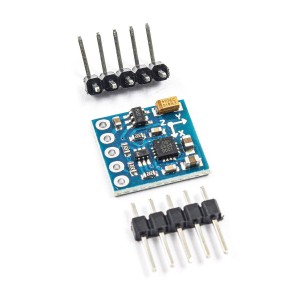

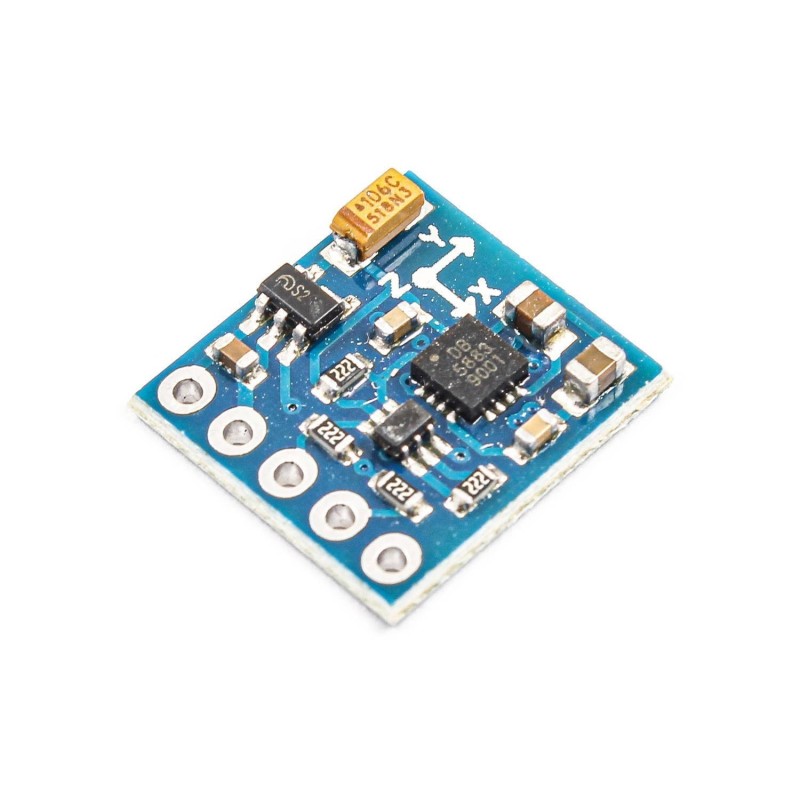

    GY-271 QMC5883L 3-Axis Compass Magnetometer Sensor Module

    RBD-3277

    • High-precision 3-axis digital compass based on QMC5883L magnetometer chip.
    • Measures magnetic fields from -8 to +8 gauss with ±2 milligauss accuracy.
    • Supports I2C interface, fully compatible with Arduino, Raspberry Pi, and ESP32.
    • Low power consumption — 100µA in measurement mode and 2µA in sleep mode.
    • Compact and lightweight module for easy integration into navigation systems.
    • Ideal for robotics, GPS navigation, drones, and motion tracking projects.
    BDT 350
    BDT 350 BDT 350 BDT 350 BDT 350
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 350 Tax excluded
    BDT 350 Tax included
    BDT 0 Tax
    BDT 350 Tax excluded
    BDT 0 Tax
    BDT 350 Tax included
    Quantity
    In-Stock
    33 Items

    18 people have purchased this item
    6 people recently added this item to the cart
    33 items in stock
    Description

    The GY-271 QMC5883L 3-Axis Compass Magnetometer Sensor Module is a high-accuracy digital magnetometer designed for orientation detection and geomagnetic field measurement. It uses the QMC5883L chip, which employs advanced anisotropic magnetoresistive (AMR) technology to detect magnetic field strength and direction across three axes (X, Y, Z). Supporting the I2C communication interface, this sensor easily integrates with Arduino, Raspberry Pi, ESP32, and STM32 microcontrollers. With a measurement range of ±8 gauss and 12-bit ADC resolution, the module delivers precise readings for applications such as robotic navigation, GPS assistance, drone stabilization, and motion tracking. Its ultra-low power consumption (100µA in measurement mode) and compact size make it perfect for portable, battery-powered projects requiring stable, accurate orientation detection. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. 3-Axis Magnetometer: Accurately measures magnetic fields in X, Y, and Z directions.

    2. High Sensitivity Range: Detects magnetic fields between -8 gauss and +8 gauss with ±2 milligauss accuracy.

    3. QMC5883L Sensor Chip: Utilizes AMR technology for enhanced precision and stability.

    4. I2C Interface: Enables easy communication with popular microcontrollers and development boards.

    5. Low Power Design: Consumes only 100µA during operation and 2µA in sleep mode.

    6. 12-bit ADC Resolution: Ensures precise and stable digital output readings.

    7. Compact Form Factor: Small and lightweight, perfect for space-constrained designs.

    8. Wide Compatibility: Works with Arduino, Raspberry Pi, ESP32, and similar platforms.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Robotics Navigation: Determines heading and orientation for autonomous movement.

    2. GPS Navigation Enhancement: Provides heading correction for more accurate GPS performance.

    3. Drones and UAVs: Enables stabilization and orientation sensing during flight.

    4. Motion Tracking Systems: Detects magnetic changes for gesture and motion sensing.

    5. Industrial Automation: Assists in positioning and alignment in automated systems.

    6. Mobile Devices: Used in digital compasses, AR tools, and wearables.

    7. Scientific & Environmental Monitoring: Detects geomagnetic variations for research and meteorology.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ModelGY-271
    ChipsetQMC5883L
    Operating Voltage3V – 5V DC
    Current Consumption100µA (Measurement), 2µA (Sleep)
    Magnetic Field Range-8 Gauss to +8 Gauss
    Resolution2 milli-gauss
    Heading Accuracy1° – 2°
    ADC Resolution12-bit
    InterfaceI2C
    Maximum Output Frequency160Hz
    Pin Count5 Pins
    Dimensions14.5mm × 13.5mm
    Operating Temperature-40°C to +85°C
    Shipment Weight0.010 kg
    Shipment Dimensions3 × 2 × 1 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    How to Use

    1. Connect the Sensor to a Microcontroller

      • VCC → 3.3V or 5V (power supply)
      • GND → Ground
      • SCL (Serial Clock) → I2C Clock Pin on microcontroller
      • SDA (Serial Data) → I2C Data Pin on microcontroller

    2. Install Required Libraries

      • Use Wire.h and Adafruit QMC5883L libraries in Arduino IDE to read sensor values.

    3. Read Sensor Data

      • The module outputs X, Y, and Z-axis magnetometer readings, which can be processed to determine direction and heading.

    4. Calibrate the Sensor

      • Perform a 360° rotation of the sensor to remove offsets and improve accuracy.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x GY-271 QMC5883L 3-Axis Compass Magnetometer Sensor Module
