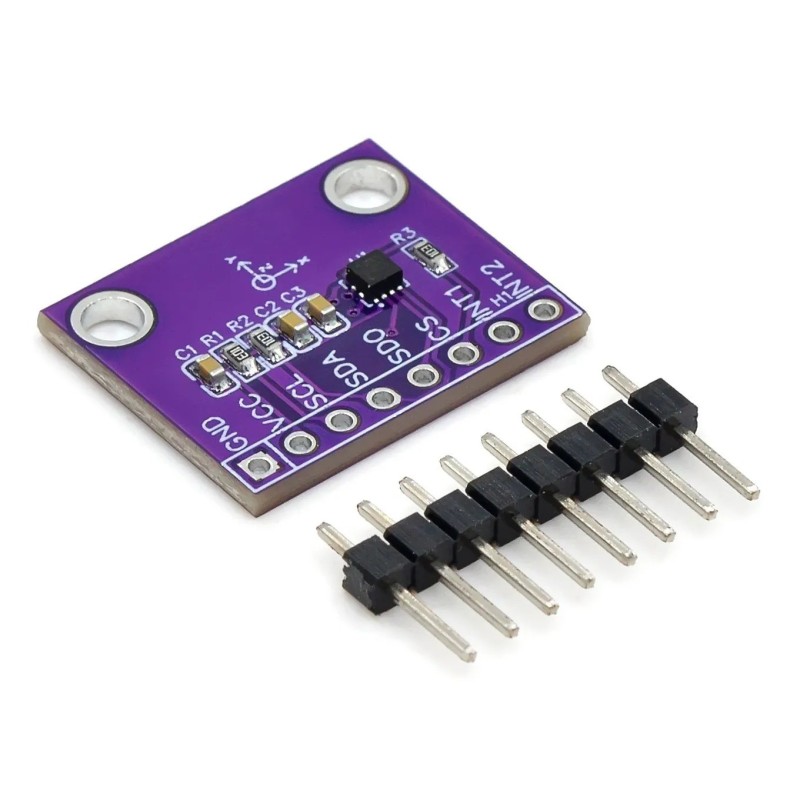

LIS2DH12TR Three-Axis Acceleration Sensor Module

Product Description:
The LIS2DH12TR Three-Axis Acceleration Sensor Module is a high-performance, ultra-low-power accelerometer designed for motion detection, orientation sensing, and industrial applications. Offering a wide dynamic range of ±2g/±4g/±8g/±16g, selectable in real time, this module is an excellent replacement for the popular ADXL345, with enhanced power efficiency and advanced features.

It supports both I²C and SPI digital interfaces, making it easy to integrate into microcontroller and embedded systems. With built-in free-fall detection, motion detection, orientation sensing (4D/6D), FIFO buffer, and a temperature sensor, this accelerometer is ideal for smart devices, wearables, robotics, and industrial monitoring systems.

Key Features:

• Wide Voltage Range: 1.71V – 3.6V, with 1.8V I/O compatibility.

• Ultra-Low Power Consumption: Down to 2μA in low-power mode.

• Selectable Measurement Range: ±2g, ±4g, ±8g, ±16g.

• Interfaces: I²C and SPI digital communication.

• Advanced Functions:

  • 2 programmable interrupt generators

  • Free-fall detection

  • Motion detection

  • 4D/6D orientation detection

  • Sleep-to-wake and return-to-sleep function

• Built-In Features: FIFO buffer and temperature sensor.

Technical Specifications:

• Model: LIS2DH12TR

• Type: Three-axis accelerometer module

• Supply Voltage: 1.71V – 3.6V

• I/O Voltage: 1.8V compatible

• Power Consumption: 2µA (ultra-low power mode)

• Output Interface: I²C / SPI

• Measurement Range: ±2g/±4g/±8g/±16g

• Special Functions: Free-fall, motion, FIFO, orientation detection, temperature sensing

Applications:

• Wearable devices and fitness trackers

• Robotics and automation

• Smart home and IoT devices

• Motion sensing and gesture control

• Free-fall detection and impact monitoring

• Industrial and automotive applications

Package Includes:

• 1 × LIS2DH12TR Three-Axis Acceleration Module
