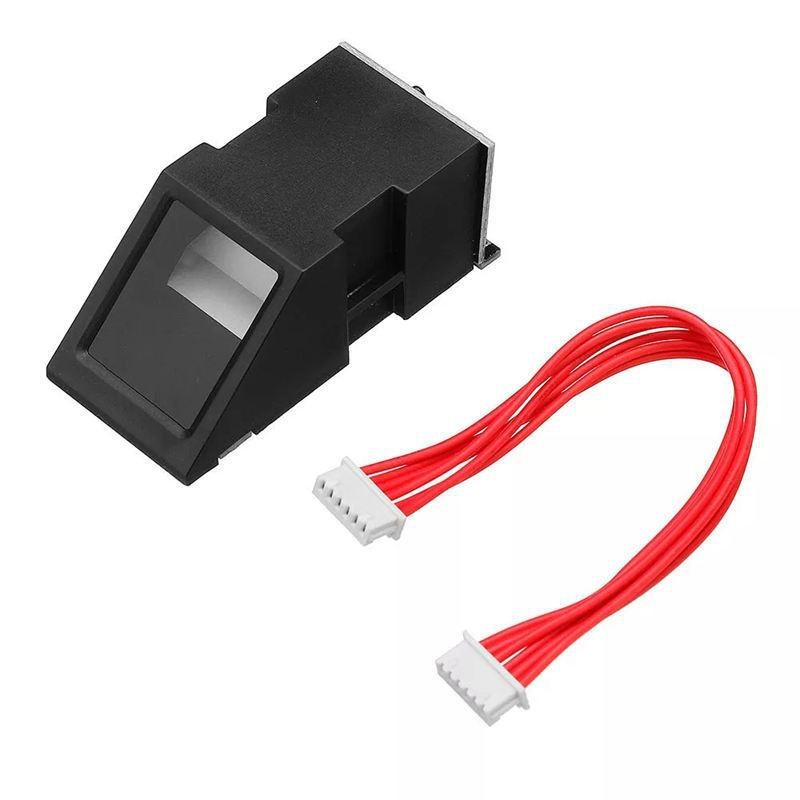

DY-50 Optical Fingerprint Reader Sensor Modules

Reference RBD-0553

Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying
Supply Current: Current: <120mA
Peak current: <140mA
Fingerprint image time: <1.0 seconds

Description

The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison, and search of fingerprints are all done by operating fingerprint features. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

Specification:

Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying
Supply Current: Current: <120mA
Peak current: <140mA
Fingerprint image time: <1.0 seconds
Window size: 14 x 18 mm
Matching mode: Match mode (1:1)
Search mode (1: N)
Signature File: 256 bytes
Template files: 512 bytes
Storage capacity: 1,000
Safety level: five (from low to high: 1,2,3,4,5)
False Accept Rate (FAR): <0.001% (security level 3)
False Reject Rate (FRR): <1.0% (security level 3)
Search time: <1.0 seconds (1:500, the mean)
PC Interface: UART (TTL logic level) or USB2.0 / USB1.1
Communication baud rate (UART): (9600 x N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)

Features:

Working Temperature: -20 ℃ - +50 ℃
Working Relative Humidity: 40% RH-85% RH (non-condensing)
Storage environment: Temperature: -40 ℃ - +85 ℃
Storage Relative humidity: <85% H (non-condensing)
Dimensions: Fingerprint sensor: 56 x 20 x 21.5mm

Hardware connection:

Serial communication interface module, with 3.3 V or 5 V power micro-controller. RoboticsBD
Communication: Module data transmission feet (2 Food TD) connected to the data bit machine receiving end (RXD). Data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD). For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer. RoboticsBD

General Specification
Resolution	500dpi
Supply current	<60mA
Supply voltage	3.3-6.0V
Fingerprint image entry time	<1.0 seconds
Peak current	<60mA
Window area(mm)	14×18
Communication Interface	USB/UART
Length (mm)	56
Width (mm)	20
Height (mm)	21.5
Weight (gm)	20
Shipment Weight	0.03 kg
Shipment Dimensions	12 × 8 × 2.5

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

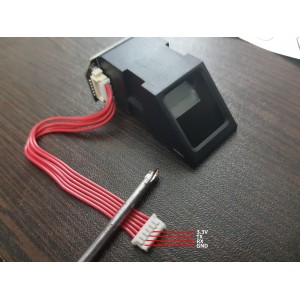

1 x FPM10A Optical Fingerprint Reader Sensor Modules (With Shield)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-0553

In stock 16 Items

Specific References

EAN13: 0553

Attachments

Download

Download (0)

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-2507

GY-US42 V2 i2c Pixhawk APM Flight Control Ultrasonic Distance Measurement Module

(0)

High-precision GY-US42 V2 ultrasonic distance measuring module with I2C interface. Wide measurement range from 20cm to 720cm with 1cm resolution. Compatible with Pixhawk, APM, and other flight controllers. Low power consumption (9mA @ 5V) ideal for drones and robotics. Fast response rate up to 15Hz for real-time obstacle detection. Durable design with...

BDT 1,550

BDT 1,550 tax incl.

BDT 1,550 tax excl.

BDT 1,550 tax incl.

BDT 0 Tax

BDT 1,550 tax excl.

BDT 0 Tax

BDT 1,550 tax incl.

Last items in stock

In stock: 2

- BDT 16 Reduced price

Reference: RBD-0313

RC522 RFID Card Reader Module Kit Android NFC supported

(0)

Low power consumption, Low cost, and Compact size Read and write chip Fully integrated at 13.56MHz

BDT 175 BDT 191

BDT 191 BDT 175 tax incl.

BDT 191 BDT 175 tax excl.

BDT 191 BDT 175 tax incl.

BDT 0 BDT 0 Tax

BDT 191 BDT 175 tax excl.

BDT 0 BDT 0 Tax

BDT 191 BDT 175 tax incl.

In-Stock

In stock: 66

Reference: RBD-2090

Magic Cup Tilt Switch Module

(0)

Operates on 5V DC supply. Mercury switch

BDT 85

BDT 85 tax incl.

BDT 85 tax excl.

BDT 85 tax incl.

BDT 0 Tax

BDT 85 tax excl.

BDT 0 Tax

BDT 85 tax incl.

In-Stock

In stock: 64

Reference: RBD-1737

USB Fingerprint Reader for Windows 10 Hello Biometric Scanner for PC

(0)

Fastest fingerprint identification in the world, Support multi fingerprint Instant match.

BDT 3,450

BDT 3,450 tax incl.

BDT 3,450 tax excl.

BDT 3,450 tax incl.

BDT 0 Tax

BDT 3,450 tax excl.

BDT 0 Tax

BDT 3,450 tax incl.

In-Stock

In stock: 9

Reference: RBD-1848

Pressure Sensors with Display SPABT-P10-R18-2N-K2-B-SA

(0)

Compact Design Country Specific pressure Multiple Displayable Unit Multi-colored, two-part display Alphanumeric display

BDT 28,000

BDT 28,000 tax incl.

BDT 28,000 tax excl.

BDT 28,000 tax incl.

BDT 0 Tax

BDT 28,000 tax excl.

BDT 0 Tax

BDT 28,000 tax incl.

Last items in stock

In stock: 3

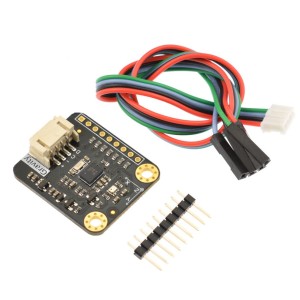

Gravity 10 DOF IMU AHRS BNO055 + BMP280 Robotics Bangladesh
