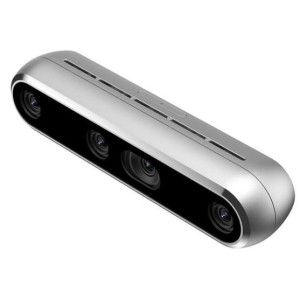

Intel RealSense Depth Camera D455

Product Description

The Intel RealSense Depth Camera D455 is a next-generation stereo depth camera designed to deliver longer range, higher accuracy, and enhanced performance for robotics, AR/VR, 3D scanning, and computer vision applications. Building on the strengths of the D435, the D455 doubles the depth range and accuracy, integrates an IMU (Inertial Measurement Unit) for motion tracking, and combines RGB and depth sensors in a compact, ready-to-use package. With Intel RealSense SDK 2.0 support, the D455 ensures seamless integration, offering developers, innovators, and researchers a powerful tool to build intelligent vision-based solutions.

Key Features

• Global Shutter Sensors with 3µm x 3µm pixel size for accurate capture in dynamic and low-light environments

• Extended Depth Range up to 20m for enhanced collision avoidance and 3D reconstruction

• Integrated IMU for 6DoF motion tracking, enabling SLAM, robotics navigation, and AR/VR applications

• Wide Field of View (87° × 58° depth, 90° × 65° RGB) for maximum coverage with minimal blind spots

• Depth + RGB Synchronization with matched resolution for precise scan recreations and digital twins

• High-Speed Performance with depth streaming up to 1280 × 720 at 90 fps and RGB streaming at 1280 × 800 at 30 fps

• SDK 2.0 Support for cross-generation compatibility and out-of-the-box integration

• Compact Design with USB-C connectivity and multiple mounting options for easy deployment

Technical Specifications

• Image Sensor Technology: Global Shutter

• Pixel Size: 3μm × 3μm

• Depth Technology: Active IR Stereo (Stereoscopic)

• Depth Accuracy: <2% at 4 m

• Depth Range: 0.6 m – 6 m (Max ~20 m)

• Depth Resolution: Up to 1280 × 720

• Depth Frame Rate: Up to 90 fps

• RGB Resolution: 1280 × 800, 1 MP

• RGB Frame Rate: 30 fps

• RGB Sensor Technology: Global Shutter

• RGB FOV: 90° × 65°

• Depth FOV: 87° × 58°

• IMU: 6DoF gyroscope + accelerometer

• Camera Module: Intel RealSense Module D450

• Vision Processor: Intel RealSense Vision Processor D4

• Form Factor: Camera peripheral

• Dimensions: 124 mm × 26 mm × 29 mm

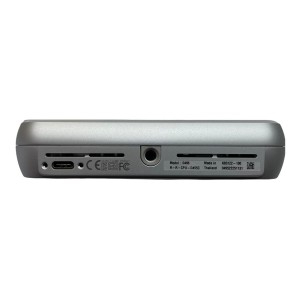

• Connectors: USB-C 3.1 Gen 1

• Mounting Options: 1/4-20 UNC thread, two M4 threads, tripod support

• Operating Environment: Indoor/Outdoor

How to Use

1. Connect the D455 via USB-C 3.1 Gen 1 to your PC or embedded system.

2. Install the Intel RealSense SDK 2.0 (available on GitHub) to access depth, RGB, and IMU data streams.

3. Configure depth and RGB streams to your preferred resolution and frame rate.

4. Integrate into applications for robotics, AR/VR, 3D scanning, AI, or computer vision projects.

Applications

• Robotics & Drones – SLAM, navigation, obstacle avoidance, and environmental awareness

• AR/VR & Mixed Reality – enhanced tracking, depth perception, and immersive experiences

• 3D Scanning & Mapping – digital twin creation, object recognition, and spatial reconstruction

• Healthcare & Monitoring – patient tracking, gesture recognition, and smart assistance

• Interactive Displays & Smart Retail – viewer engagement and people-counting solutions

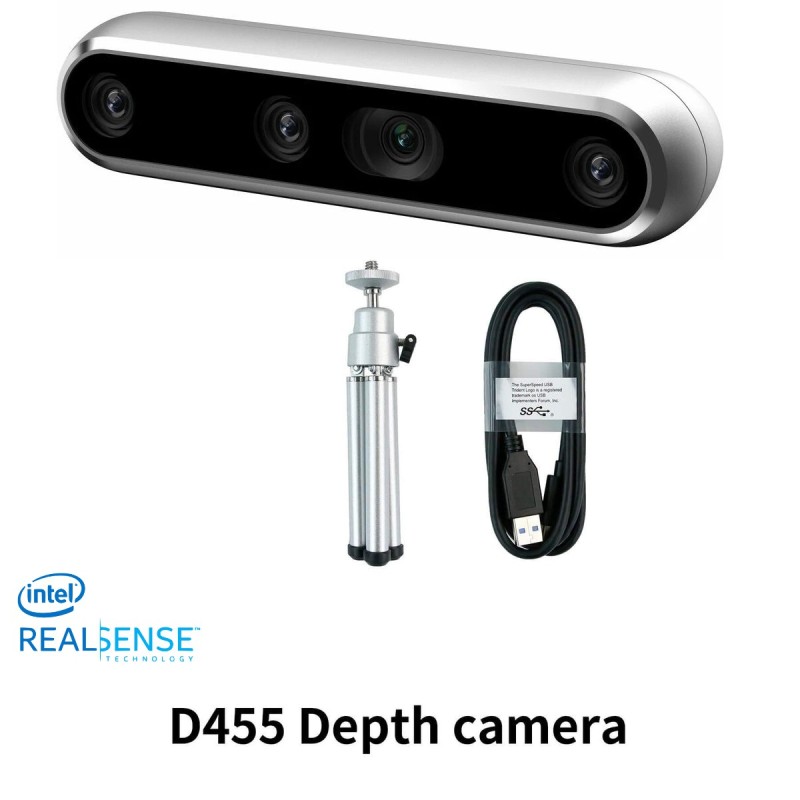

Package Includes

• 1 × Intel RealSense Depth Camera D455

• 1 × Desktop Tripod

• Documentation and SDK resources (downloadable)

Why Choose the Intel RealSense D455?

The D455 provides unmatched range, accuracy, and versatility in a compact, developer-friendly design. With its integrated IMU, global shutter sensors, wide FOV, and SDK support, it is the ideal choice for robotics, AI, AR/VR, and 3D applications. Whether you’re building autonomous robots, immersive virtual experiences, or advanced computer vision projects, the D455 empowers you to turn your vision into reality.

Unlock the full potential of depth-sensing technology with the Intel RealSense Depth Camera D455 – order today and bring intelligent vision to your projects!
