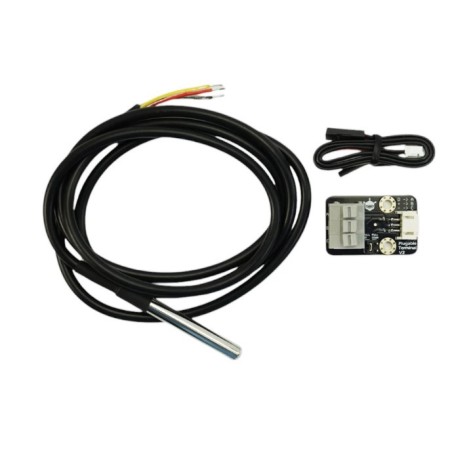

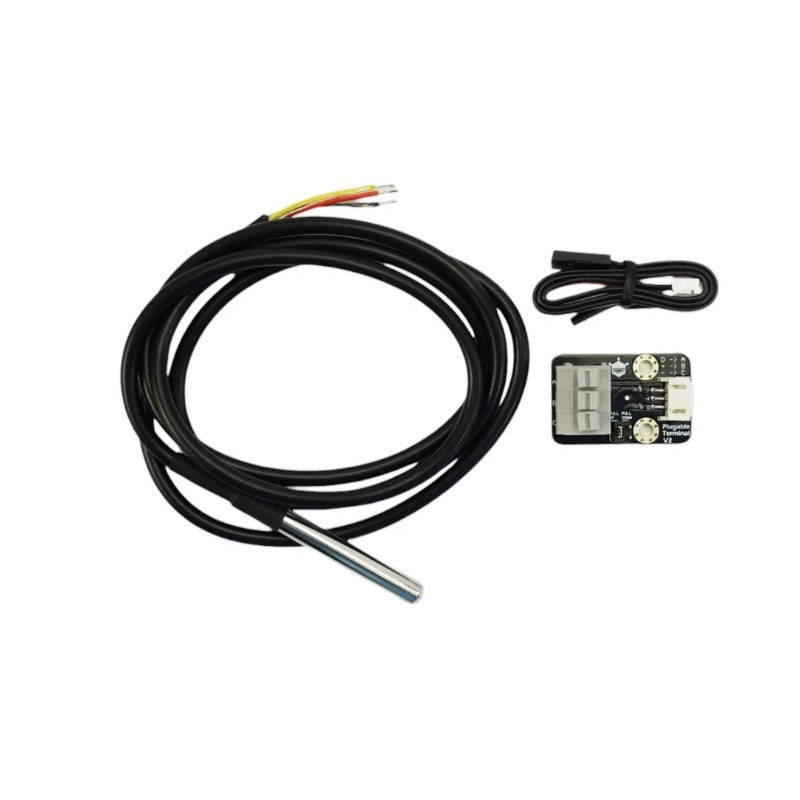

    Gravity Waterproof DS18B20 Temperature Sensor Kit

    RBD-3940
    DFRobot

    Waterproof temperature sensor with DS18B20 probe, easily connects to Arduino, offers 9-12 bit readings, supports 3.0-5.5V systems for multipoint measurement.

    BDT 1,455
    BDT 1,455 BDT 1,455 BDT 1,455 BDT 1,455
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,455 Tax excluded
    BDT 1,455 Tax included
    BDT 0 Tax
    BDT 1,455 Tax excluded
    BDT 0 Tax
    BDT 1,455 Tax included
    Quantity
    Last items in stock
    2 Items

    3 people have purchased this item
    Only 2 items left in stock
    Description

    Introduction

    This waterproof temperature sensor kit use DS18B20 probe AS. It contains a probe with a resistor module. So it is easy to connect on the Arduino board.

    The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems.

    Check 27 Pcs Sensor Kit for Arduino to get more sensors for Arduino.

    If you want to make a simple water purifier, we recommend buying together with Gravity: Analog TDS Sensor/Meter for Arduino.

    Specification

    • Operating voltage: 3.0~ 5.5V
    • ±0.5°C Accuracy from -10°C to +85°C
    • Usable temperature range: -55 to 125°C (-67°F to +257°F)
    • 9 to 12-bit selectable resolution
    • Uses 1-Wire interface- requires only one digital pin for communication
    • Unique 64 bit ID burned into chip
    • Multiple sensors can share one pin
    • Temperature-limit alarm system
    • Query time is less than 750ms
    • 3 wires interface:
      • Type A
        • Red wire - VCC
        • Black wire - GND
        • Yellow wire - DATA
      • Type B
        • Red wire - VCC
        • Yellow wire - GND
        • Green wire - DATA
    • Stainless steel tube 6mm diameter by 35mm(1.34") long
    • Cable diameter: 4mm(0.16")
    • Length: 90cm(35.43")

    Documents

    Shipping List

    Product Details
    RBD-3940
    2 Items

    Specific References

    EAN13
    3940
