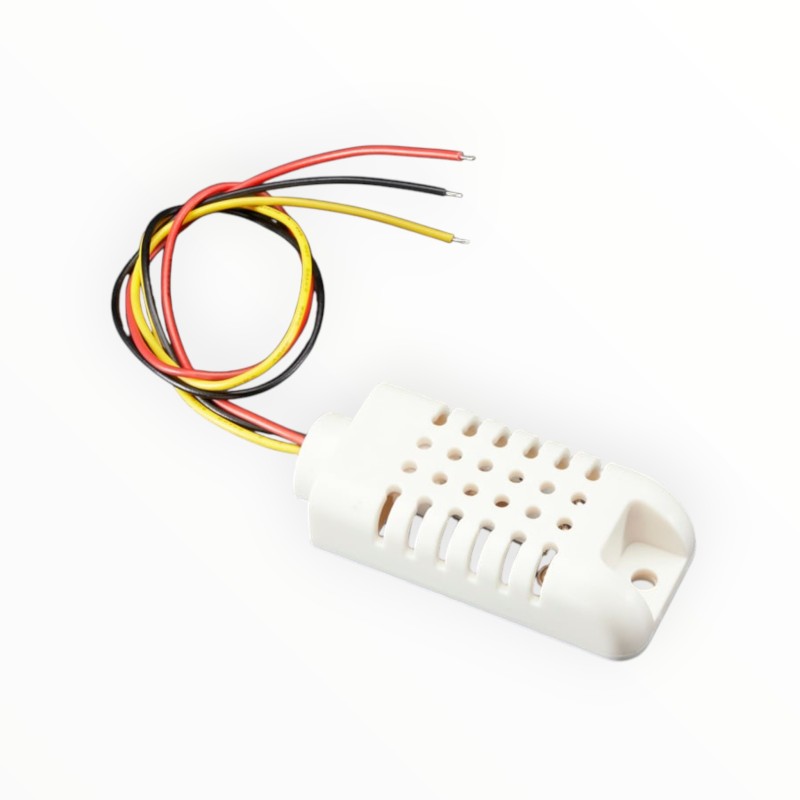

    AM2302 (Wired DHT22) Digital Temperature and Humidity Sensor

    RBD-4077

    The AM2302 is a wired digital temperature and humidity sensor based on the DHT22 sensing element. It measures ambient temperature and relative humidity using a capacitive humidity sensor and an internal thermistor, providing digital output through a single data wire. This sensor is suitable for embedded systems, environmental monitoring, and DIY electronics projects.

    BDT 350
    BDT 350 BDT 350 BDT 350 BDT 350
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 350 Tax excluded
    BDT 350 Tax included
    BDT 0 Tax
    BDT 350 Tax excluded
    BDT 0 Tax
    BDT 350 Tax included
    Quantity
    Last items in stock
    1 Item

    1 person has purchased this item
    1 person recently added this item to the cart
    Only 1 item left in stock
    Description

    The AM2302 is a wired digital temperature and humidity sensor based on the DHT22 sensing element. It measures ambient temperature and relative humidity using a capacitive humidity sensor and an internal thermistor, providing digital output through a single data wire. This sensor is suitable for embedded systems, environmental monitoring, and DIY electronics projects.

    Key Features

    • Digital temperature and humidity sensing

    • Capacitive humidity sensor with thermistor

    • Single-wire digital data output

    • Pre-installed internal pull-up resistor

    • Higher accuracy and wider range than DHT11

    • Wired version with protective plastic housing

    Technical Specifications

    • Model: AM2302 (DHT22 wired version)

    • Sensor Type: Digital temperature and humidity sensor

    • Operating Voltage: 3V to 5V

    • Current Consumption:

      • Maximum 2.5 mA during data conversion

    • Humidity Measurement Range: 0 to 100 percent RH

    • Humidity Accuracy: ±2 to ±5 percent RH

    • Temperature Measurement Range: -40°C to +80°C

    • Temperature Accuracy: ±0.5°C

    • Sampling Rate: Maximum 0.5 Hz (one reading every 2 seconds)

    • Output Signal: Single-wire digital signal

    • Internal Pull-Up Resistor: 5.1 kΩ between VCC and DATA

    • Cable Length: Approximately 23 cm

    • Sensor Body Dimensions:

      • 27 x 59 x 13.5 mm (approx.)

    • Country of Origin: Made in China

    Applications / Use Cases

    • Weather monitoring systems

    • Indoor environmental monitoring

    • Smart home and automation projects

    • HVAC monitoring

    • Embedded systems and microcontroller projects

    • Educational and training use

    Package Includes

    • 1 x AM2302 temperature and humidity sensor with cable

    Notes / Warnings

    • Data can be read only once every 2 seconds

    • Each sensor requires a separate data pin

    • Not compatible with Dallas One-Wire protocol

    • Ensure correct wiring before powering the sensor

    The AM2302 temperature and humidity sensor provides reliable digital measurements with good accuracy over a wide operating range, making it a practical choice for environmental sensing in electronics and embedded applications.
