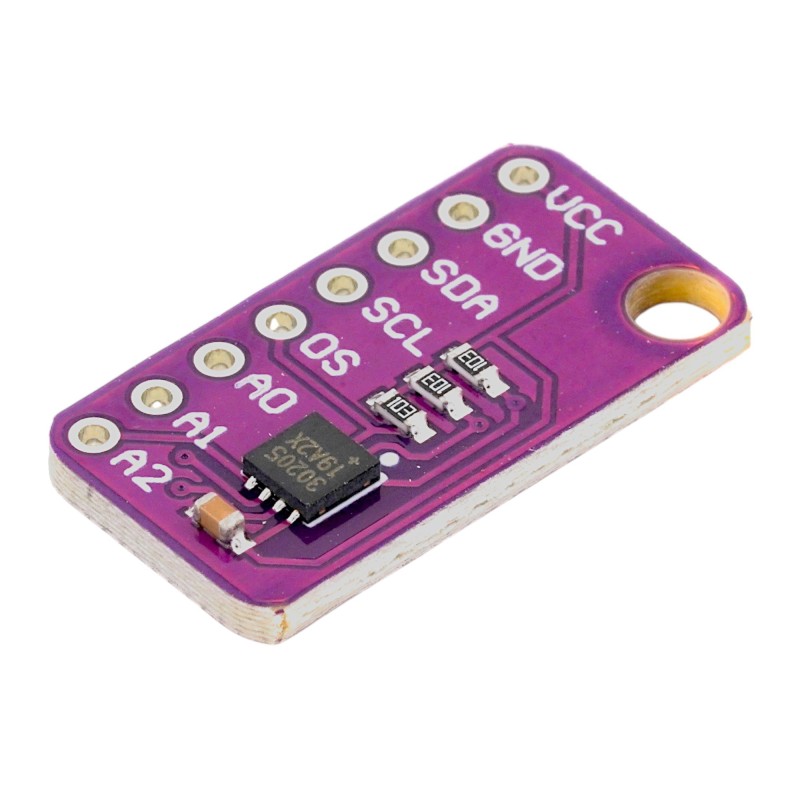

    MAX30205 High-Precision Digital Body Temperature Sensor Module (MCU-30205) Robotics Bangladesh
    • MAX30205 High-Precision Digital Body Temperature Sensor Module (MCU-30205) Robotics Bangladesh
    • MAX30205 High-Precision Digital Body Temperature Sensor Module (MCU-30205) Robotics Bangladesh

    MAX30205 High-Precision Digital Body Temperature Sensor Module (MCU-30205)

    RBD-4101

    The MAX30205 is a high-precision digital temperature sensor module designed for accurate human body temperature measurement. It provides calibrated digital temperature output over I2C and is suitable for medical, wearable, and low-power IoT applications where stable and precise temperature readings are required.

    BDT 965
    BDT 965 BDT 965 BDT 965 BDT 965
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 965 Tax excluded
    BDT 965 Tax included
    BDT 0 Tax
    BDT 965 Tax excluded
    BDT 0 Tax
    BDT 965 Tax included
    Quantity
    Last items in stock
    3 Items

    4 people have purchased this item
    1 person recently added this item to the cart
    Only 3 items left in stock
    Description

    Short Description

    The MAX30205 is a high-precision digital temperature sensor module designed for accurate human body temperature measurement. It provides calibrated digital temperature output over I2C and is suitable for medical, wearable, and low-power IoT applications where stable and precise temperature readings are required.


    Key Features

    • Medical-grade temperature accuracy

    • Digital temperature output via I2C

    • No external calibration required

    • Low power consumption

    • Compact module design

    • Over-temperature alarm output pin


    Technical Specifications

    • Core IC: MAX30205MTA+

    • Sensor Type: Digital temperature sensor

    • Temperature Measurement Range: 0°C to +50°C

    • Temperature Accuracy:

      • ±0.1°C (typical, +30°C to +50°C)

      • ±0.5°C (maximum over full range)

    • Resolution: 16-bit (0.00390625°C per LSB)

    • Sampling Rate: Configurable, up to approximately 4 Hz

    • Communication Interface: I2C

    • Default I2C Address: 0x48

    • Alternate I2C Address: 0x49

    • Operating Voltage: 2.7V to 3.3V

    • Operating Current:

      • 600 µA (active mode, typical)

      • 1 µA (standby mode)

    • Alarm Output: OS pin (over-temperature interrupt)

    • Sensor Package: TDFN-8 (on module)

    • Country of Origin: Made in China


    Applications / Use Cases

    • Medical thermometers

    • Wearable health monitoring devices

    • Smart healthcare and fitness products

    • Precision temperature compensation

    • Low-power IoT temperature nodes

    • Laboratory and research equipment


    How to Use

    • Connect VCC and GND to a regulated 3.3V supply

    • Connect SDA and SCL to the MCU I2C interface

    • Add external pull-up resistors on SDA and SCL if required

    • Optionally connect the OS pin for temperature alarm interrupts


    Package Includes

    • 1 x MAX30205MTA temperature sensor module


    Notes / Warnings

    • Do not exceed 3.6V supply voltage

    • Allow approximately 100 ms stabilization time after power-up

    • Ensure proper I2C pull-up resistors are present on the bus


    The MAX30205 temperature sensor module provides accurate, stable, and low-power body temperature measurement with a simple I2C interface, making it suitable for medical-grade, wearable, and embedded temperature sensing applications.

    Product Details
    RBD-4101
    3 Items

    Specific References

    EAN13
    4101
