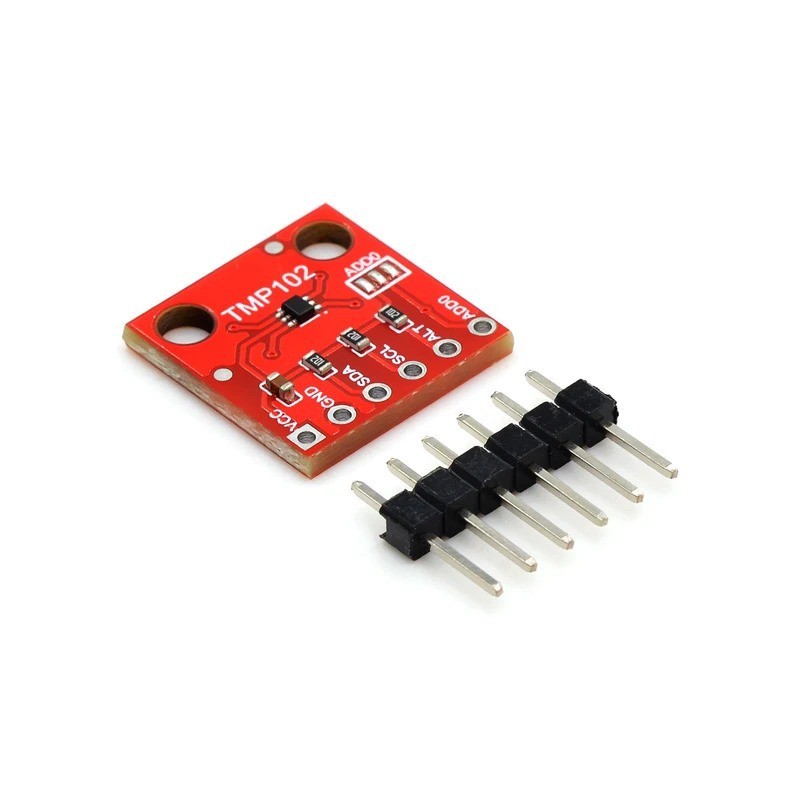

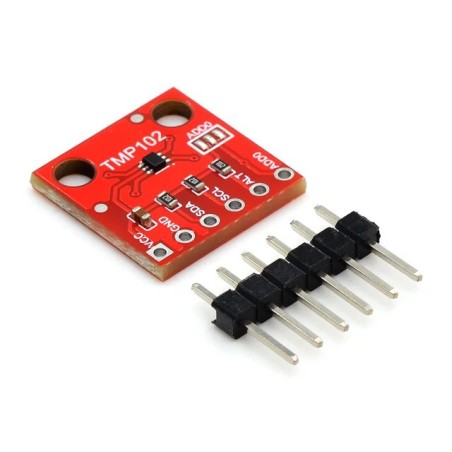

Product Description:
The TMP102 Digital Temperature Sensor Module is a high-precision, low-power temperature sensor designed for accurate and reliable thermal measurement in compact electronic systems. Featuring 12-bit resolution and I²C (TWI) digital communication, this module offers an easy and efficient way to measure temperature without requiring analog-to-digital conversion.
The TMP102 provides 0.0625°C resolution with typical accuracy of ±0.5°C across its primary temperature range. It’s an excellent choice for battery-powered or low-energy systems thanks to its ultra-low power consumption — only 10 µA in active mode and 1 µA in shutdown mode.
Built-in filtering capacitors and pull-up resistors ensure signal stability and ease of integration with Arduino, Raspberry Pi, ESP32, STM32, and other microcontroller platforms.
Key Features:
High-precision 12-bit digital temperature sensor
Resolution: 0.0625°C
Accuracy: ±0.5°C typical (-25°C to +85°C range)
Temperature range: -40°C to +125°C
I²C-compatible interface (supports 100 kHz, 400 kHz, and 3.4 MHz modes)
Low power consumption: 10 µA (active), 1 µA (shutdown)
Compact and easy to use breakout board
Built-in pull-up resistors and filtering capacitors for stable readings
Ideal for embedded systems, environmental monitoring, and IoT applications
Technical Specifications:
| Parameter | Value |
|---|
| Sensor Model | TMP102 |
| Interface | I²C (TWI-compatible) |
| Supply Voltage | 1.4V – 3.6V DC |
| Resolution | 12-bit (0.0625°C per LSB) |
| Temperature Range | -40°C to +125°C |
| Accuracy | ±0.5°C typical (-25°C to +85°C) |
| Operating Current | 10 µA (active), 1 µA (shutdown) |
| Communication Speed | Up to 3.4 MHz |
| Board Features | Pull-up resistors, filtering capacitors |
| Material | High-quality PCB and plastic components |
Applications:
Environmental and Ambient Temperature Monitoring
IoT and Smart Home Devices
HVAC and Thermostat Systems
Battery Management and Power Control
Industrial and Consumer Electronics
Data Logging and Weather Stations
Package Includes:
Why Choose This Sensor?
The TMP102 offers high accuracy, low power consumption, and I²C simplicity in an ultra-compact form factor. With integrated passive components and robust design, it’s perfect for engineers, students, and hobbyists needing a reliable temperature measurement solution for embedded and IoT systems.
Measure temperature with accuracy and efficiency — choose the TMP102 Digital Temperature Sensor for your next smart electronics project!
