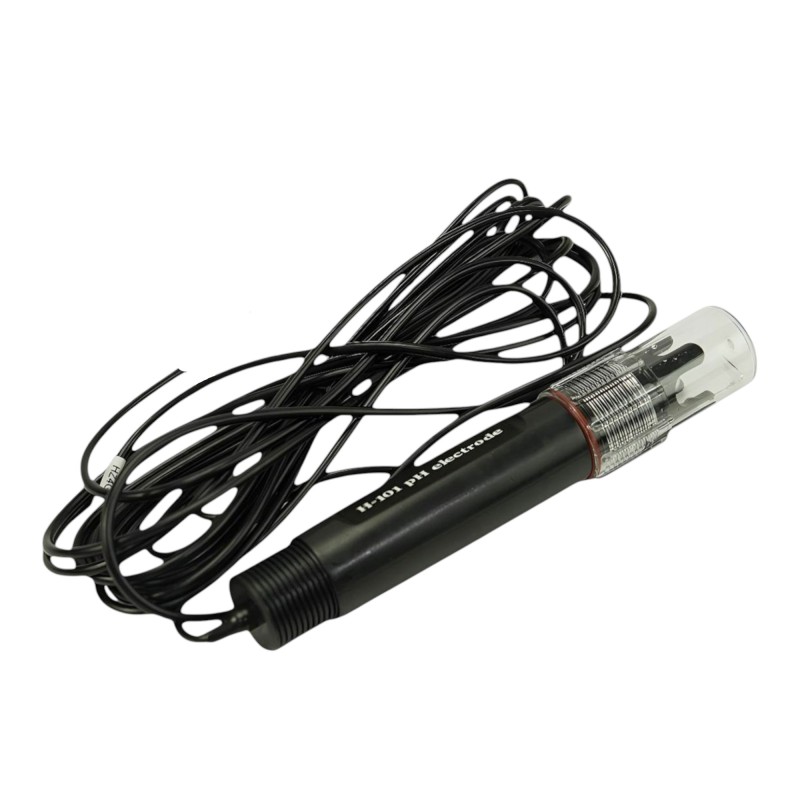

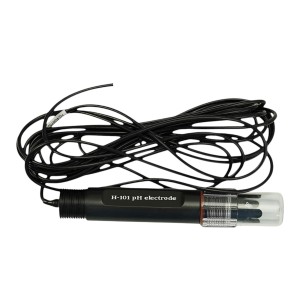

Industrial pH Electrode - Armor Casing Haoshi H101

Product Description:

The Industrial pH Electrode - Armor Casing (H-101) is a high-performance pH combination electrode designed for precision and durability in industrial applications. It features a low-impedance sensitive glass membrane, ensuring fast response and excellent thermal stability. The electrode is robust, with a ring PTFE membrane that resists clogging, making it ideal for long-term online detection in harsh environments. The Ag/AgCl gel electrolyte reference system enhances anti-pollution capabilities and maintains a stable half-cell potential. With a linear output voltage range of 0 to 14 pH, this electrode is perfect for accurate and reliable pH measurements.

Manual: WiKi Doc

Features:

1. Fast Response & Stability:

   • Sensitive glass membrane with low impedance ensures quick and reliable measurements.

2. Wide Measuring Range:

   • Accurately measures pH values across the 0 to 14 range with a precision of ≤0.02 pH.

3. Durable Armor Casing:

   • Robust design protects the electrode for industrial and long-term applications.

4. Clog-Resistant Design:

   • Ring PTFE membrane prevents clogging, ensuring consistent performance.

5. Linear Output Voltage:

   • Provides 0 to 5V feedback proportional to pH values, ensuring easy integration with monitoring systems.

6. Temperature Resilience:

   • Operates effectively in temperatures ranging from 0 to 60°C, making it suitable for a variety of conditions.

Specifications:

• Length (with protective cover): 17.7 cm (6.97")
• Diameter: 2.74 cm (1.08")
• Wire Length: 5 m (196.85")
• Connector Type: BNC
• Measuring Range: 0-14 pH
• Precision: ≤0.02 pH
• Response Time: 10 seconds
• Drift: ≤0.02 pH/24 hours
• Resistance of Sensitive Membrane: ≤200 × 10⁶ Ω
• Slope: ≥95%
• Electrode's Equipotential Point: 7 ± 0.5 pH
• Suitable Temperature: 0-60°C

Applications:

1. Industrial Wastewater Monitoring:

   • Ideal for factories and facilities handling wastewater containing chromium or other contaminants.

2. Printing & Circuit Board Industries:

   • Ensures precise pH control in sensitive manufacturing processes.

3. Domestic Sewage Monitoring:

   • Suitable for continuous pH measurement in water treatment systems.

4. Research & Development:

   • Perfect for laboratories and experimental setups requiring high-accuracy pH monitoring.

How to Use:

1. Setup:

   • Connect the BNC connector to the pH meter or monitoring system.

2. Calibration:

   • Calibrate the electrode with standard buffer solutions (e.g., pH 4, 7, and 10) before use.

3. Measurement:

   • Immerse the electrode into the solution, ensuring the glass membrane and PTFE ring are fully submerged.

4. Readings:

   • Monitor the pH value directly on the connected system. The electrode provides a linear voltage output for accurate measurement.

5. Maintenance:

   • Rinse with distilled water after use and store the electrode in a pH storage solution to maintain accuracy.

Package Includes:

• H-101 Industrial pH Electrode ×1

Note: This electrode is a probe only and can be used as an upgrade for an Analog pH Meter. For a complete long-term industrial pH sensor, refer to the Industrial pH Meter Kit Pro.
