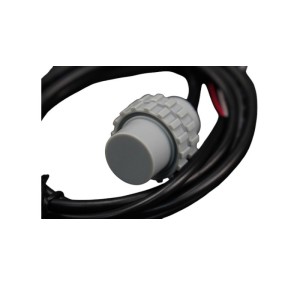

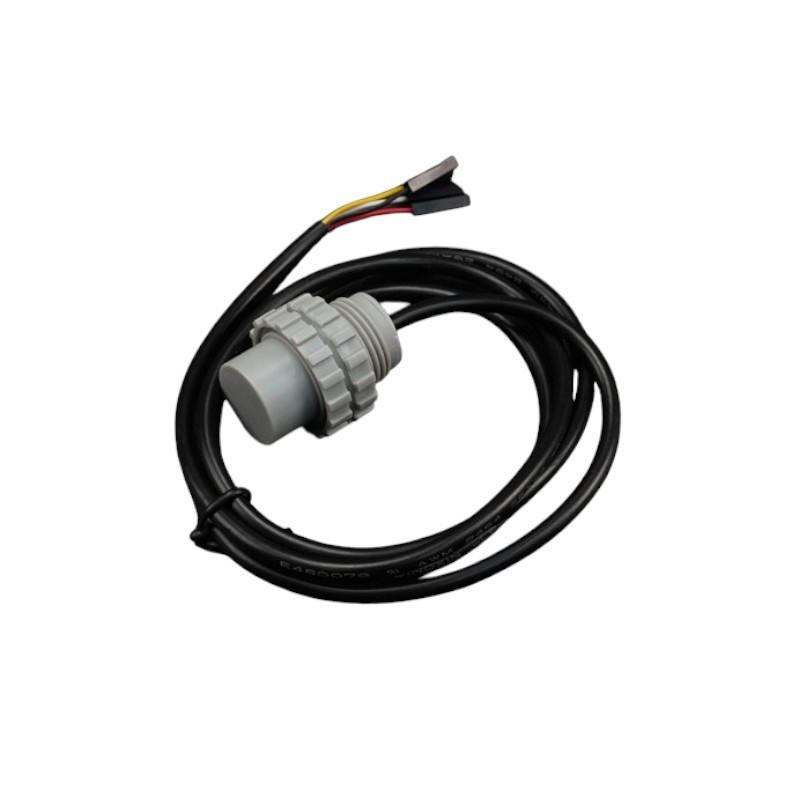

    IP68 Underwater Ultrasonic Obstacle Avoidance Sensor (3m, UART)

    RBD-3096
    DFRobot

    • Underwater ultrasonic obstacle avoidance sensor with 2–300cm range
    • Operates on a wide voltage range of 5–24V with low power consumption
    • IP68 waterproof rating ensures reliable underwater use up to 10m depth
    • Compact size, lightweight, and minimal blind spots for easy integration
    • UART output with fast 10ms response time for real-time navigation
    • Ideal for underwater robots, obstacle detection, and water depth measurement

    Note: The sensor can only be used underwater as it requires the presence of water to provide accurate data.

    BDT 6,950
    BDT 6,950 BDT 6,950 BDT 6,950 BDT 6,950
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 6,950 Tax excluded
    BDT 6,950 Tax included
    BDT 0 Tax
    BDT 6,950 Tax excluded
    BDT 0 Tax
    BDT 6,950 Tax included
    Quantity
    Last items in stock
    2 Items

    3 people have purchased this item
    Only 2 items left in stock
    Description

    The IP68 Underwater Ultrasonic Obstacle Avoidance Sensor (3m, UART) is designed specifically for underwater robotics and navigation. Featuring a 2–300cm detection range, this compact and lightweight sensor delivers high precision with minimal blind spots, making it suitable for real-time obstacle detection and depth measurement. With an IP68 protection rating, it operates reliably underwater, even at depths of up to 10m, enabling autonomous vehicles to achieve effective obstacle avoidance without the need for visual cameras. The sensor supports a wide input voltage of 5–24V, consumes minimal power, and communicates via a UART interface for easy integration with microcontrollers. Its fast 10ms response time and narrow detection angle of 5–10° ensure accurate performance in dynamic underwater environments. This sensor is a perfect fit for AUVs, ROVs, underwater drones, and research applications requiring robust and precise underwater navigation. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Underwater-Specific Design – Works only in water for accurate obstacle detection.

    2. Wide Voltage Support – Operates between 5–24V with low power usage.

    3. Long Detection Range – Measures from 2cm up to 300cm underwater.

    4. High Protection – IP68 waterproof rating, reliable up to 10m depth.

    5. Fast Response – 10ms data update for real-time navigation.

    6. Compact & Lightweight – Small blind zone and easy integration.

    7. UART Interface – Simple and stable communication with controllers.

    8. Versatile Applications – Suitable for AUVs, underwater drones, and depth sensing.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Underwater Robots – Enables autonomous navigation and obstacle avoidance.

    2. Marine Drones – Enhances unmanned underwater exploration and mapping.

    3. Depth Measurement – Provides accurate distance data in water systems.

    4. Environmental Research – Collects underwater data for monitoring and studies.

    5. Aquaculture Systems – Helps in monitoring and controlling fishery environments.

    6. Industrial Applications – Supports underwater inspection and maintenance tasks.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ModelIP68 Underwater Ultrasonic Obstacle Sensor
    Measurement Range2–300cm
    Measurement Accuracy±(0.5+S0.5%)cm @ <2m, ±(1+S1%)cm @ >2m
    Operating Voltage5–24V
    Standby Current≤1mA
    Operating Current≤10mA
    Output ModeUART controlled
    Startup Time≤500ms
    Response Time10ms
    Detection Angle5–10°
    Operating Temperature-15°C to +50°C
    Storage Temperature-25°C to +80°C
    Storage Humidity65–90% RH (non-condensing)
    Waterproof RatingIP68
    Max Depth10m
    Shipment Weight0.060 kg
    Shipment Dimensions6 × 4 × 4 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    Underwater Ultrasonic Obstacle Avoidance Sensor

    Package Includes:

    1 x IP68 Underwater Ultrasonic Obstacle Avoidance Sensor (3m, UART)
