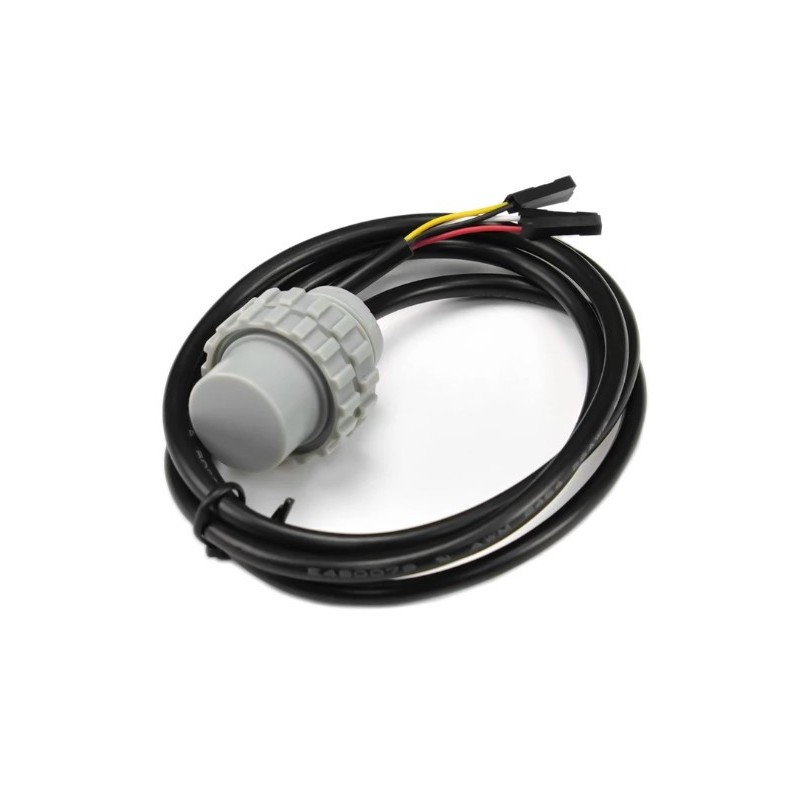

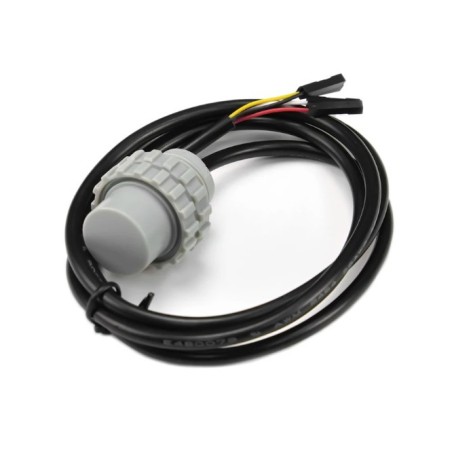

    IP68 Underwater Ultrasonic Obstacle Avoidance Sensor 6m, UART Robotics Bangladesh
    • IP68 Underwater Ultrasonic Obstacle Avoidance Sensor 6m, UART Robotics Bangladesh

    IP68 Underwater Ultrasonic Obstacle Avoidance Sensor 6m, UART

    RBD-3941
    DFRobot

    An underwater ultrasonic sensor designed for obstacle avoidance with a 5-600cm range, IP68 rating, compact size, and operates at 5-24V.
    BDT 7,490
    BDT 7,490 BDT 7,490 BDT 7,490 BDT 7,490
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 7,490 Tax excluded
    BDT 7,490 Tax included
    BDT 0 Tax
    BDT 7,490 Tax excluded
    BDT 0 Tax
    BDT 7,490 Tax included
    Quantity
    Last items in stock
    3 Items

    Only 3 items left in stock
    Description

    Introduction

    This is an underwater ultrasonic obstacle avoidance sensor specifically designed for underwater applications. It operates on a wide voltage range of 5-24V and features compact size, minimal blind spots, high precision, and high protection. Its underwater measurement range is from 5-600cm.


    With an IP68 protection rating, this sensor can replace a camera for obstacle avoidance and meet the requirements of normal underwater navigation speeds. By using this obstacle avoidance sensor, underwater vehicles can achieve true "unmanned driving" without the need for human observation. Even at a depth of 10m, obstacle avoidance can still be easily accomplished.

    Waterproof level of IP68

    Thanks to its small size and minimal blind spots, this sensor takes up minimal space and can be easily integrated into various projects.

    Compact in size, with a small blind zone

    Note: The sensor can only be used underwater as it requires the presence of water to provide accurate data.

    Features

    • Compact in size, with a small blind zone
    • Lightweight and fast response time
    • Waterproof level of IP68

    Applications

    • Underwater robot obstacle avoidance and self-control detection
    • Measurement of water depth by underwater robots

    Applications Measurement of water depth

    Specification

    • Measurement Range: 5-600cm
    • Measurement Accuracy: ±(0.5+S*0.5%)cm@<2m, ±(1+S*1%)cm@>2m
    • Operating Voltage: 5-24V
    • Standby Current: ≤1mA
    • Operating Current: ≤10mA
    • Output Mode: UART controlled
    • Power-on Startup Time: ≤500ms
    • Output Response Time: 14ms
    • Angle: 8-16°
    • Operating Temperature: -15~50°C
    • Storage Temperature: -25~80°C
    • Storage Humidity: 65%~90% RH (non-condensing)

    Documents

    Shipping List

    • Underwater Ultrasonic Obstacle Avoidance Sensor (6m) x1
    Product Details
    RBD-3941
    3 Items

    Specific References

    EAN13
    3941
