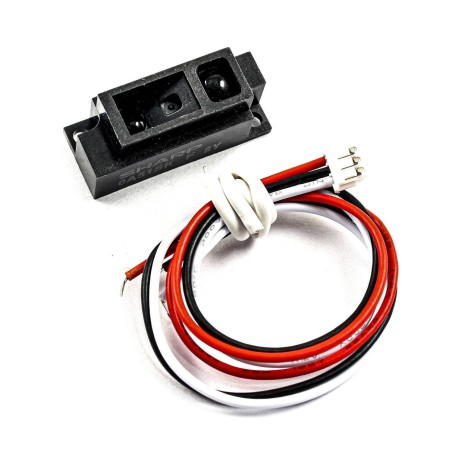

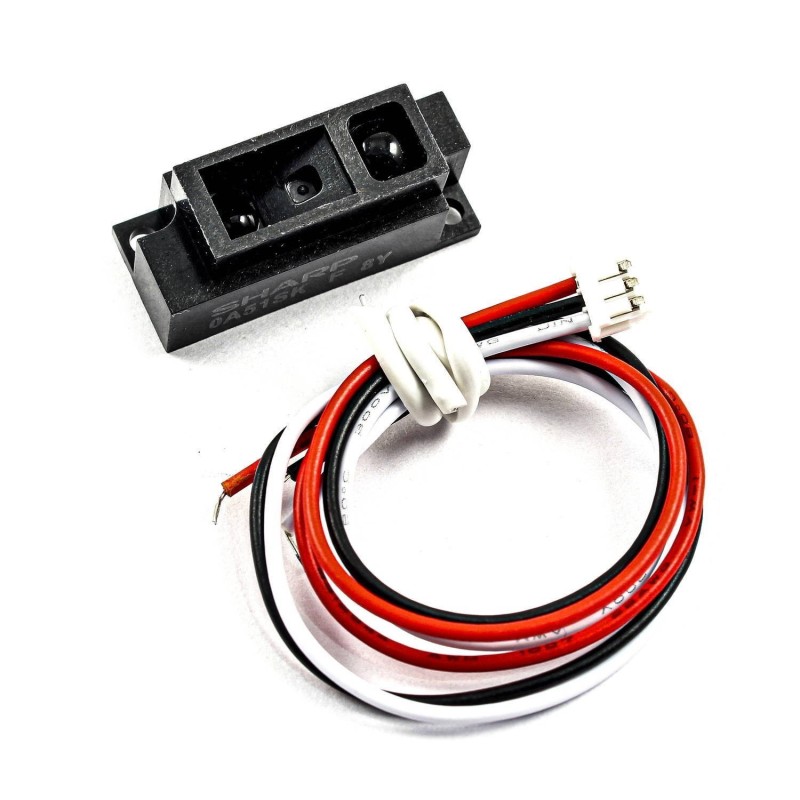

The GP2Y0A51SK0F Infrared Distance Sensor is a compact and reliable short-range distance measurement module designed for robotics and automation applications. It integrates a position sensitive detector (PSD), an infrared LED, and onboard signal processing circuitry into a single unit. Because it uses the triangulation method, the sensor provides stable and consistent distance measurements with minimal influence from target color, reflectivity, or ambient temperature. Moreover, it outputs an analog voltage proportional to the detected distance, which allows easy interfacing with microcontrollers such as Arduino, ESP32, STM32, and other ADC-supported platforms. With a fast measuring cycle of only 16.5ms, it delivers near real-time response, making it ideal for dynamic environments like moving robots and obstacle detection systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Triangulation-Based Measurement – Provides accurate short-range distance sensing independent of surface color.
Integrated Optical System – Combines PSD, infrared LED, and processing circuit in one compact module.
Analog Voltage Output – Easy to connect to microcontroller ADC pins for continuous distance reading.
Fast Response Time – 16.5ms measuring cycle supports real-time robotics control.
Short-Range Detection (2–15cm) – Optimized for close-proximity object sensing.
Compact Form Factor – Suitable for embedded and space-limited designs.
Stable Environmental Performance – Less affected by ambient temperature or operating duration.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Robotics Obstacle Avoidance – Detect nearby objects and prevent collisions.
Touchless Interfaces – Enable gesture-based or proximity-triggered systems.
Automation Systems – Provide object detection in small-scale machinery.
Interactive Devices – Use as a proximity trigger for smart electronics.
Industrial Safety Systems – Detect objects within short range for safety alerts.
Educational Robotics Projects – Ideal for STEM learning and prototyping.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | GP2Y0A51SK0F |
| Measuring Method | Infrared Triangulation |
| Detection Range | 2cm – 15cm |
| Output Type | Analog Voltage |
| Measuring Cycle | 16.5ms |
| Light Source | Infrared LED |
| Supply Voltage | 4.5V – 5.5V |
| Interface Type | Analog Output |
| Response Time | Fast (Real-Time Suitable) |
| Module Type | Integrated Distance Sensor |
| Shipment Weight | 0.004 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x GP2Y0A51SK0F Infrared Distance Sensor
