Reference: RBD-1073
Banner

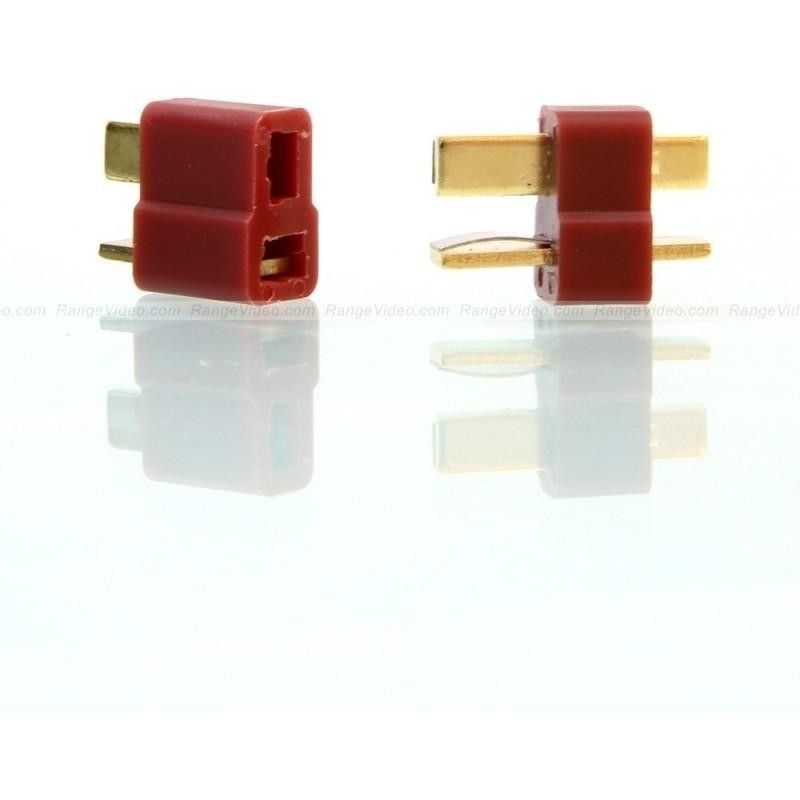

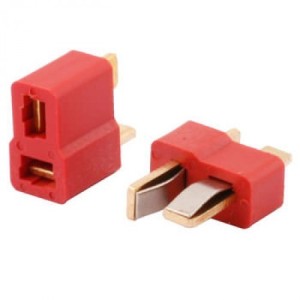

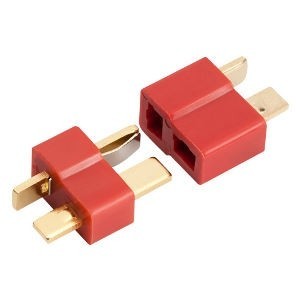

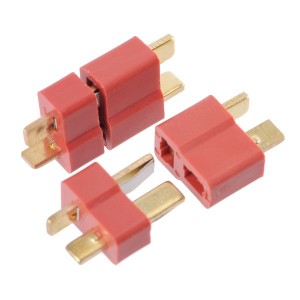

T-Connectors Male-Female Pair. Pack includes 1 Male and 1 Female connector. These connectors are made from Nylon, making them very tough and difficult to melt, even with the worst of soldering skills. RoboticsBD
These are for those customers still stuck with the old t-connector. We suggest all customers upgrade to the new XT-60 connector where possible as that is the connector attached to nearly all our batteries, ESC, charger, and models. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Connector Type | T style |
| Voltage Rating | 50V |
| Current Rating | 16A |
| Color | red |
| Gender | Mail-Female Pair |
| Body Material | Brass and gold plated |
| Internal Material | Nylon/PA |
| Internal Resistance | 0.4mΩ |
| Recommend Use Times | 1000 times |
| Max. RC/MC | 36A/60A |
| Temperature Resistance | -20°C ~ 120°C |
| Pulling Force/500 | 25N |
| Weight | 5.6g/Pair |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 5 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x T Connector Male-Female Pair.
