The APM2.5 NEO-M8 GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications. RoboticsBD
The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8 provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8 includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications. RoboticsBD
Note: It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

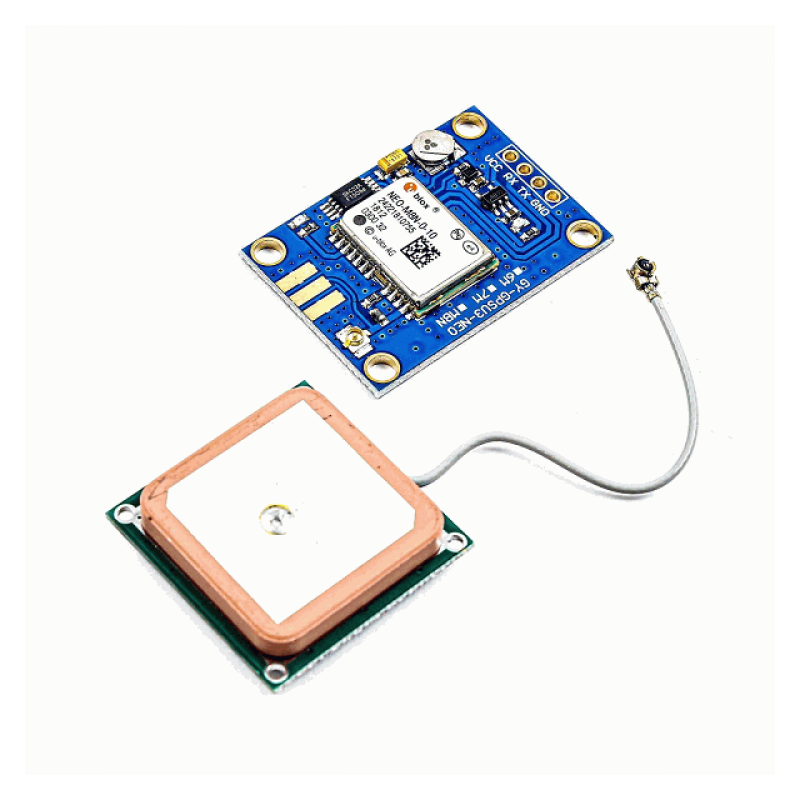

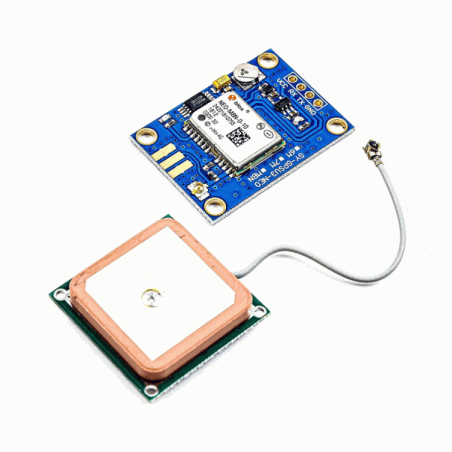

The GY-NEO-8M module is an advanced GPS module based on uBlox m8 that supports UART communication protocol with active antenna. You can interface this module easily with a microcontroller. This module has a rechargeable battery and can also be connected directly to a computer using a USB to TTL converter
The on-board LED starts blinking when module is connecting to GPS satellites.
Features :
- The ceramic antenna provides a very strong signal
- With LED indicator lamp
- The default baud rate: 9600.
- With data backup battery.
- LED signal indicator.
- Compatible with various flight controller module.
- EEPROM save the configuration parameter data when power-down.
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO
Built-in RTC crystal
Anti-jamming Active CW detection and removal.
Extra onboard SAW bandpass filter
Memory Flash
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model | Ublox NEO-M8 |
| Receiver Type | 72-channel Ublox M8 engine. |
| Input Supply Voltage (VDC) | 3 ~ 5 |
| Main Chip | Ublox NEO-M8 |
| Sensitivity (dBm) | 156
Cold Start (without aiding): -147 dBm |
| Position Accuracy (Meter) | 2
2.5 |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ. |
| Operating Temperature Range (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Co-Ordinate System | WGS-84 |
| Capture Time | 0.1s Average |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time | 1S |
| Maximum Altitude (m) | 18000 |
| Dimensions (mm) LxWxH | Antenna: 26 x 26 x 9
Module: 26 x 36 x 4 |
| Weight (gm) | 17 |
| Shipment Weight | 0.06 kg |
| Shipment Dimensions | 9 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Interfacing NEO-8M GPS Module with Arduino
Package Includes :
1 x APM 2.5 NEO M8 GPS Module.
1 x Ceramic Active Antenna.
